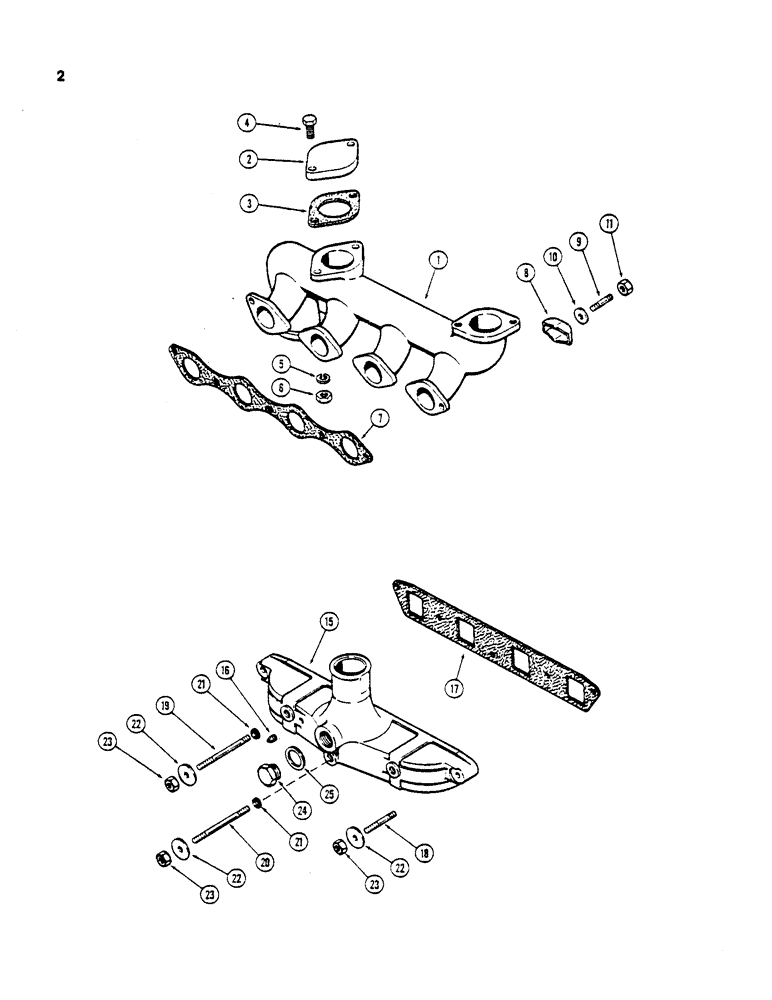

Запчасти Case DH5 (02) - MANIFOLDS (10) - ENGINE

1

A39233

MANIFOLD

ASSY. - exhaust

1шт.

2

A38188

PLATE

- cover, exhaust manifold

2шт.

3

G46853

MANIFOLD GASKET

- cover plate, exhaust manifold

2шт.

4

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Cover plate, exhaust manifold Hex, 3/8"-16 x 1 1/4", G5, Full Thd

4шт.

5

195-25

WASHER,3/8"

- lock, exhaust manifold 3/8"

4шт.

6

131-903

NUT,3/8"-16

NUT - 3/8" N.C., Seez-Pruf, exhaust manifold

4шт.

7

G46872

MANIFOLD GASKET

- exhaust manifold

1шт.

8

A35028

CLAMP

- exhaust manifold

3шт.

9

A39129

STUD

- manifold clamps (3/8" N.C. x 2-1/16"), exhaust

3шт.

9

A29431

STUD

- manifold ends (3/8" N.C. x 1-3/4"), exhaust

2шт.

10

195-25

WASHER,3/8"

- 3/8 x 13/16 x 1/16", exhaust manifold

5шт.

11

131-903

NUT,3/8"-16

NUT - 3/8" N.C. hex, exhaust manifold

5шт.

15

A51876

MANIFOLD

ASSY. - intake

1шт.

16

222-11

FITTING,3/8"-24 Inv Fl x 1/8" NPT Fem

PLUG - 1/8" P.T., sq. hd., intake manifold

1шт.

17

G46871

GASKET

- intake manifold

1шт.

18

A140924

STUD

- end holes (3/8" N.C. x 2-7/16"), intake manifold

2шт.

19

A51499

STUD

- intermediate holes (3/8" N.C. x 4-5/16"), intake manifold

2шт.

20

A51500

STUD

- center hole (3/8" N.C. x 5-5/16"), intake manifold

1шт.

21

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

"O" RING - ctr. & inter. studs (3/8 x 9/16 x 3/32"), intake manifold

3шт.

22

D41740

WASHER

- studs (3/8 x 1 x 1/8"), intake manifold

5шт.

23

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex., intake manifold

5шт.

24

A20917

PLUG

- manifold heater hole, intake

1шт.

25

A20916

MANIFOLD GASKET

GASKET - plug, intake manifold

1шт.
