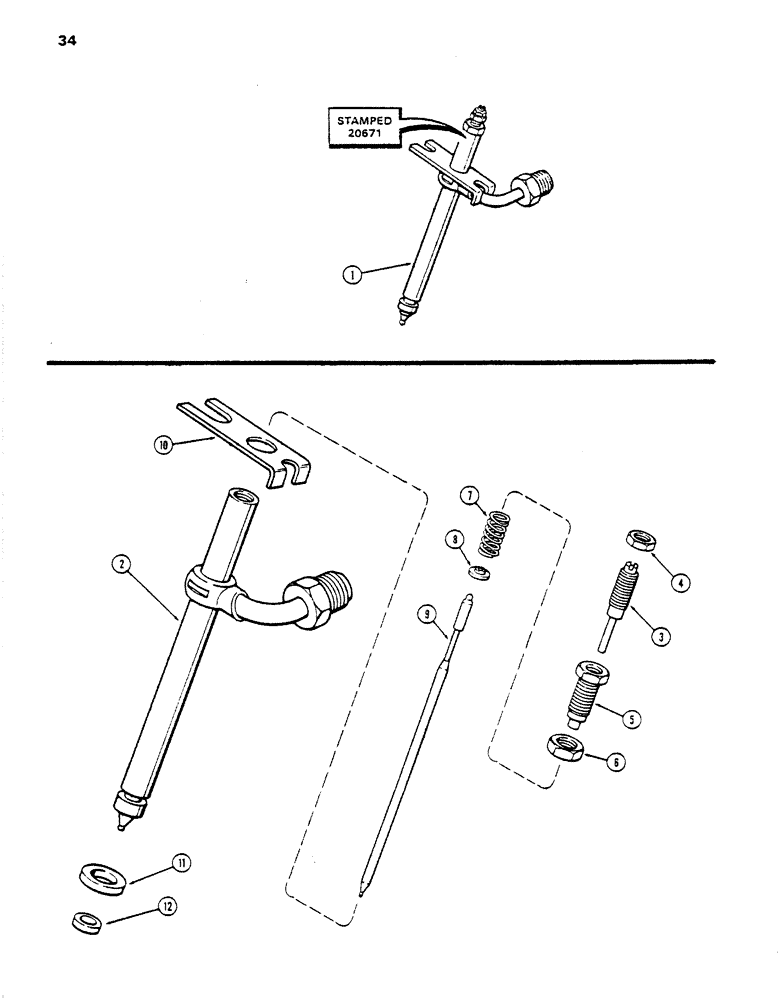

Запчасти Case DH5 (34) - INJECTOR NOZZLES (10) - ENGINE

1

A140829

NOZZLE INJECTION

NOZZLE ASSY. - fuel injector (See Note) (Stamped 20671 on body)(White color code)

4шт.

A140829R

REMAN-INJECT NOZZLE

DH5

4шт.

A140829C

CORE-NOZZLE, INJECT

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - nozzle

1шт.

3

A43599

ADJUSTMENT SCREW,#10 - 56 x 1.39"

SCREW - lift adjusting

1шт.

4

A43602

NUT

- lock, lift adjusting screw

1шт.

5

A43600

ADJUSTMENT SCREW,#10 - 56 x 0.68"

SCREW - pressure adjusting

1шт.

6

A42424

LOCK NUT

- lock, pressure adjusting screw

1шт.

7

A43733

SPRING

- pressure (9/16" free length w/red stain)

1шт.

8

A44369

SEAT

- pressure spring

1шт.

9

NSS

NOT SOLD SEPARAT

VALVE - nozzle

1шт.

10

A43506

PLATE ASSY.

PLATE - nozzle hold down

1шт.

11

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- nozzle body (3/8 x 9/16 x 1/8" nylon)

1шт.

12

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop (5/16 x 3/8 x 1/8" teflon)

1шт.
