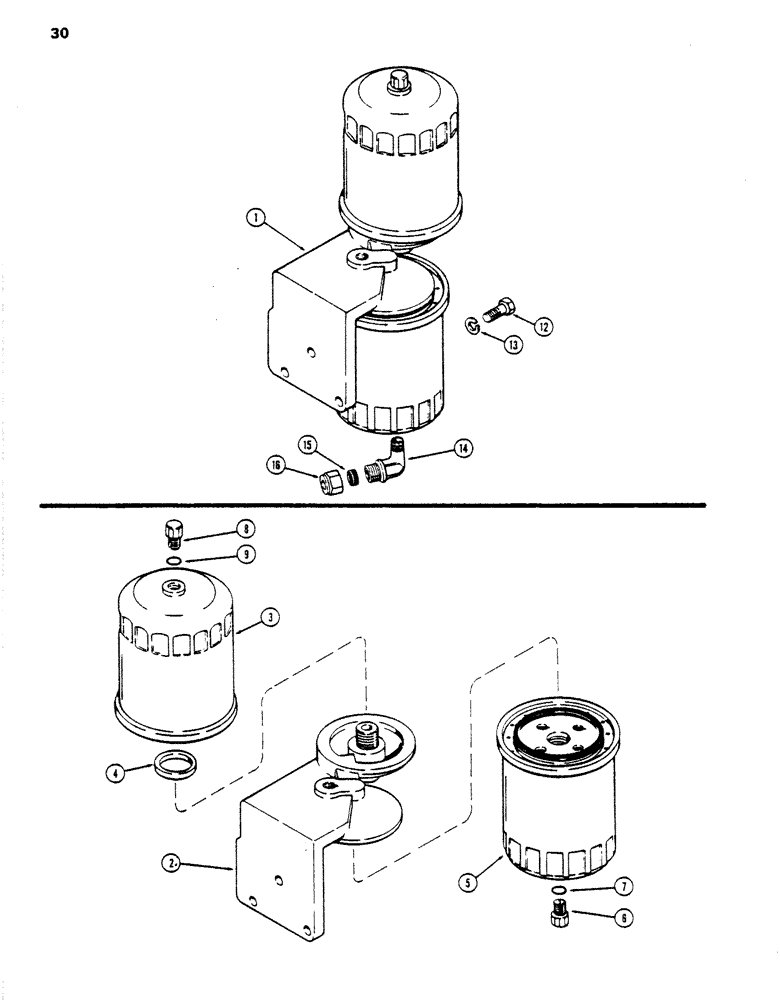

Запчасти Case DH5 (30) - FUEL FILTER (10) - ENGINE

1

A51739

FILTER

ASSY. - fuel

1шт.

2

A51738

CYLINDER HEAD

HEAD - filter

1шт.

3

A39867

FUEL FILTER

ASSY. - secondary

1шт.

4

A42315

GASKET

-, Serial Range: filter-head

1шт.

5

A39868

FUEL FILTER

ASSY. - primary

1шт.

6

G49080

PLUG

- filter drain

1шт.

7

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk, drain plug

1шт.

8

218-5152

PLUG,Hex Hd, 3/8"-24 ORB

Assy, Filter bleed Hex Hd, 3/8"-24 ORB

1шт.

9

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk

1шт.

12

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Filter mounting Hex, 5/16"-18 x 7/8", G5, Full Thd

3шт.

13

92-5

LOCK WASHER,5/16"

3шт.

14

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

ASSY. - filter outlet

1шт.

15

222-104

SLEEVE,3/8" Tube

- (For ) 3/8" Tube

1шт.

16

222-114

NUT,5/8"-24

NUT - (For 3/8" tube)

1шт.
