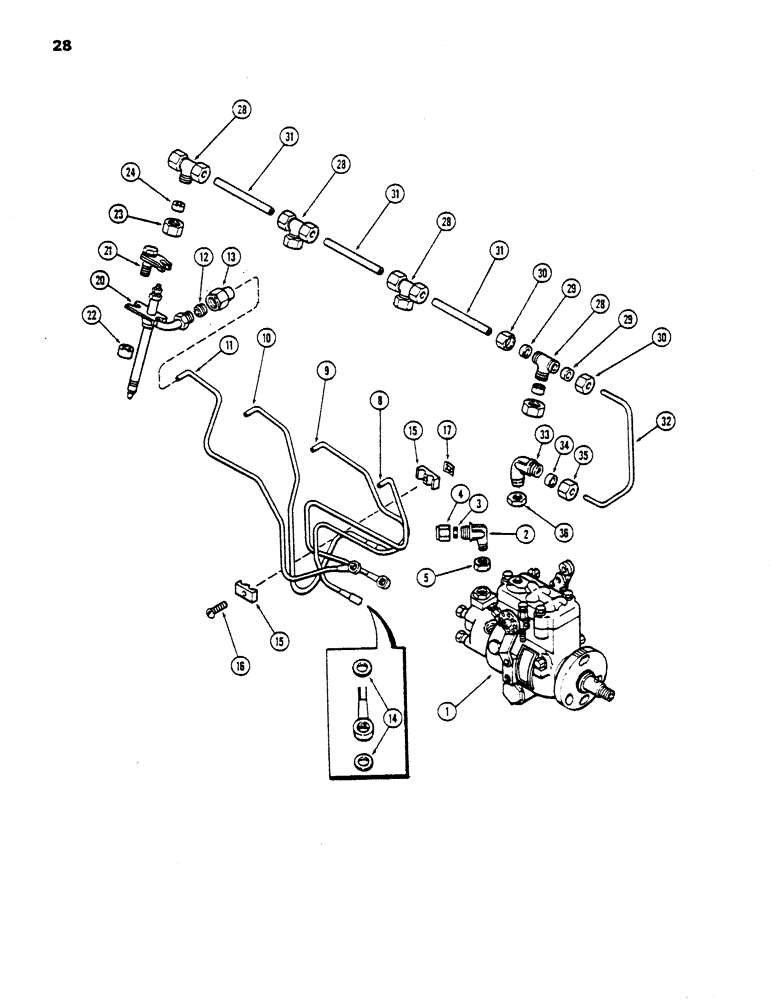

Запчасти Case DH5 (28) - FUEL INJECTION SYSTEM (10) - ENGINE
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
PUMP ASSY. - fuel injection (See Fig. 32)
1шт.
3
222-104
SLEEVE,3/8" Tube
- (For ) 3/8" Tube
1шт.
4
222-114
NUT,5/8"-24
NUT - (For 3/8" tube)
1шт.
5
A38161
LOCK NUT
- sealing (1/4" P.T.)
1шт.
8
A41391
TUBE
ASSY. - pump to no. 1 nozzle (Incl. items 12, 13 & 14)
1шт.
9
A41392
TUBE
ASSY. - pump to no. 2 nozzle (Incl. items 12, 13 & 14)
1шт.
10
A41393
TUBE
ASSY. - pump to no. 3 nozzle (Incl. items 12, 13 & 14)
1шт.
11
A41394
TUBE
ASSY. - pump to no. 4 nozzle (Incl. items 12, 13 & 14)
1шт.
Ref 11 A41394 not illustrated properly the part pictured is a35061 see 310G crawler pg 40 for illustration of all tubes if customer requires tube which looks like picture DB 12/1/99.
1шт.
12
A37850
PIPE FITTING
SLEEVE -, Serial Range: tube-nozzle
1шт.
13
A37851
NUT
-, Serial Range: tube-nozzle
1шт.
14
G49407
WASHER,9.63mm ID x 12.83mm OD x 1.65mm Thk
WASHER - tube to pump (Banjo end)
2шт.
15
A58709
BRACKET
CLAMP - injection tubes
4шт.
16
173-102
SCREW,Sl Rnd Hd, #10 - 24 x 1"
- clamp (#10-24 x 1" rd. hd.)
2шт.
17
131-612
SPRING NUT,Flat, #10 - 24, 0.022" Thk
NUT - #10-24 hex.
2шт.
20
REF
INSTRUCTION
NOZZLE ASSY. - fuel injector (See Fig. 34)
4шт.
21
A37837
CLAMP
ASSY. - injector nozzles
4шт.
22
A37839
SPACER
- clamp
4шт.
23
A58961
NUT
- nozzle to leak-off tee
4шт.
24
A58962
GROMMET,9.14mm ID x 12.82mm OD x 5.28mm Thk
- nozzle to leak-off tee
4шт.
28
A58960
TEE,1/2" - 25 NPT x 1/2" - 25 NPT x 9/16" - 24 NPT
TEE - fuel leak-off lines
4шт.
29
87017024
TUBE NUT,1/2"-24
SLEEVE - (For 1/4" tube)
8шт.
30
222-102
SLEEVE,1/4" Tube
NUT - (For ) 1/4" Tube
8шт.
31
A38644
TUBE
- fuel leak-off
3шт.
32
A142906
TUBE
- fuel leak-off (To inj. pump)
1шт.
33
222-42
ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF
ASSY.
1шт.
34
222-102
SLEEVE,1/4" Tube
1шт.
35
87017024
TUBE NUT,1/2"-24
NUT - (For 1/4" tube)
1шт.
36
A38160
LOCK NUT
- sealing (1/8" P.T.)
1шт.
Выбрано товаров: 30
