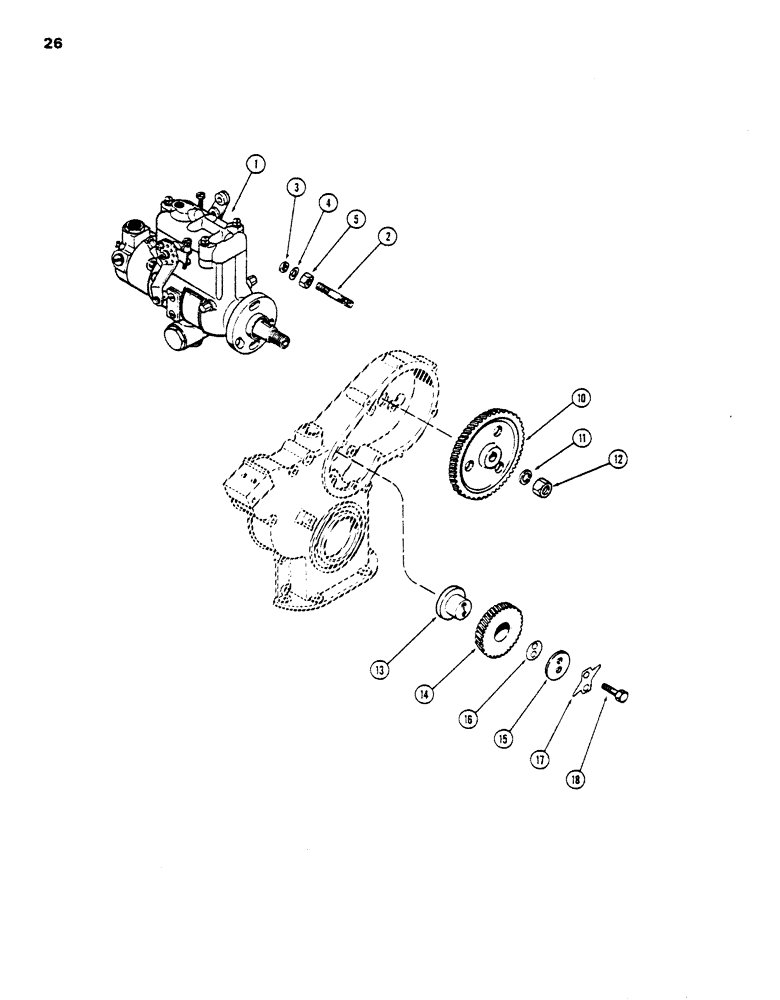

Запчасти Case DH5 (26) - INJECTION PUMP DRIVE (10) - ENGINE

1

REF

INSTRUCTION

PUMP ASSY. - injection (See Fig. 32)

1шт.

2

G11204

STUD

- pump mounting (3/8" N.C. x 1-7/16")

3шт.

3

A30043

WASHER

- 3/8 x 7/8 x 1/8"

3шт.

4

92-6

LOCK WASHER,3/8"

3шт.

5

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

3шт.

10

G2076

GEAR

- drive, injection pump

1шт.

11

192-24

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

1шт.

12

25-159

JAM NUT,Jam, 9/16"-18, G5

- 9/16" N.F. hex. jam

1шт.

13

G11726

HUB

- idler gear

1шт.

14

G11852

GEAR

ASSY. - idler (Incl. bushing)

1шт.

15

G11732

PLATE

- thrust, idler gear

1шт.

16

G11728

SHIM,.005" Thk

Idler gear .005" Thk

1шт.

16

G11729

SHIM,.006" Thk

Idler gear .006" Thk

1шт.

16

G11730

SHIM,.007" Thk

Idler gear .007" Thk

1шт.

16

G11731

SHIM,.009" Thk

Idler gear .009" Thk

1шт.

17

G11746

PLATE

- lock, idler gear

1шт.

18

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- 3/8" x 2" NC hex (Grade 5)

2шт.
