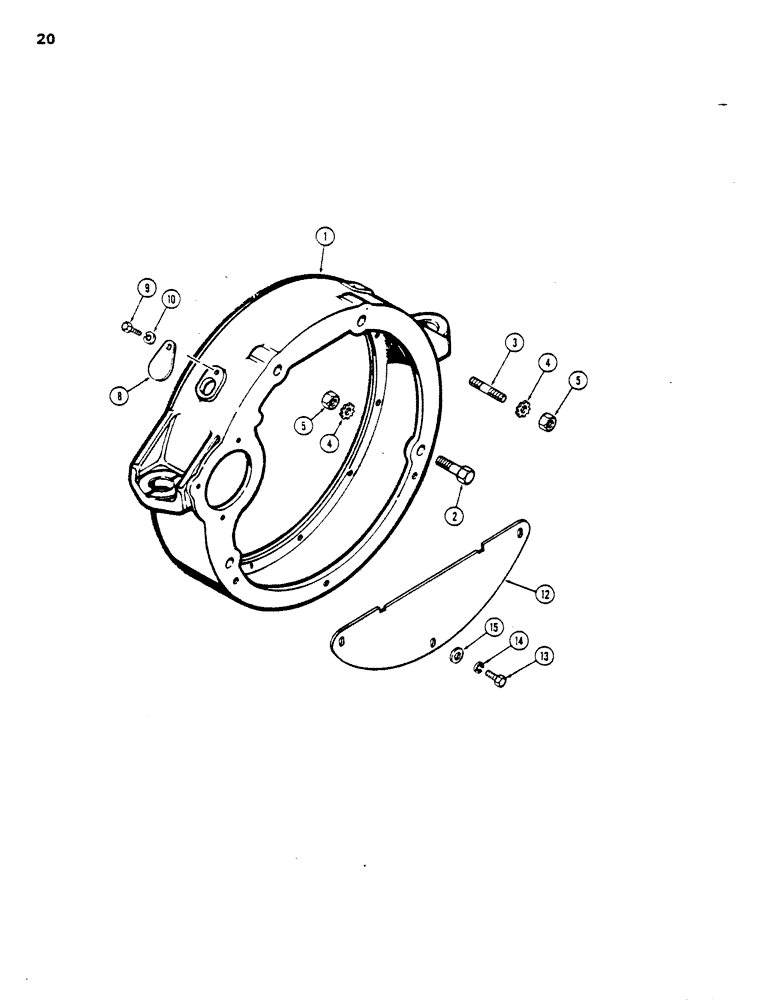

Запчасти Case DH5 (20) - FLYWHEEL HOUSING (10) - ENGINE

1

A36596

HOUSING

- flywheel

1шт.

2

A30135

BOLT

BOLT - housing to engine (5/8 x 2-1/4" N.F. hex.)

2шт.

3

A29363

STUD

- housing to engine (5/8" N.F. x 2-1/4")

2шт.

4

193-14

LOCK WASHER,Ext Tooth, 5/8"

WASHER, LOCK, Ext Tooth, 5/8"

4шт.

5

25-1110

NUT,5/8"-18, G5

- 5/8" N.F. hex.

4шт.

8

29068

COVER - timing hole

2шт.

9

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Timing hole cover Hex, 1/4"-20 x 1/2", G5, Full Thd

2шт.

10

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

12

G11716

COVER

- dust

1шт.

13

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

Dust cover Hex, 1/4"-20 x 3/4", G5, Full Thd

3шт.

14

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

15

95-4

WASHER,1/4"

- 5/16 x 3/4 x 1/16"

3шт.
