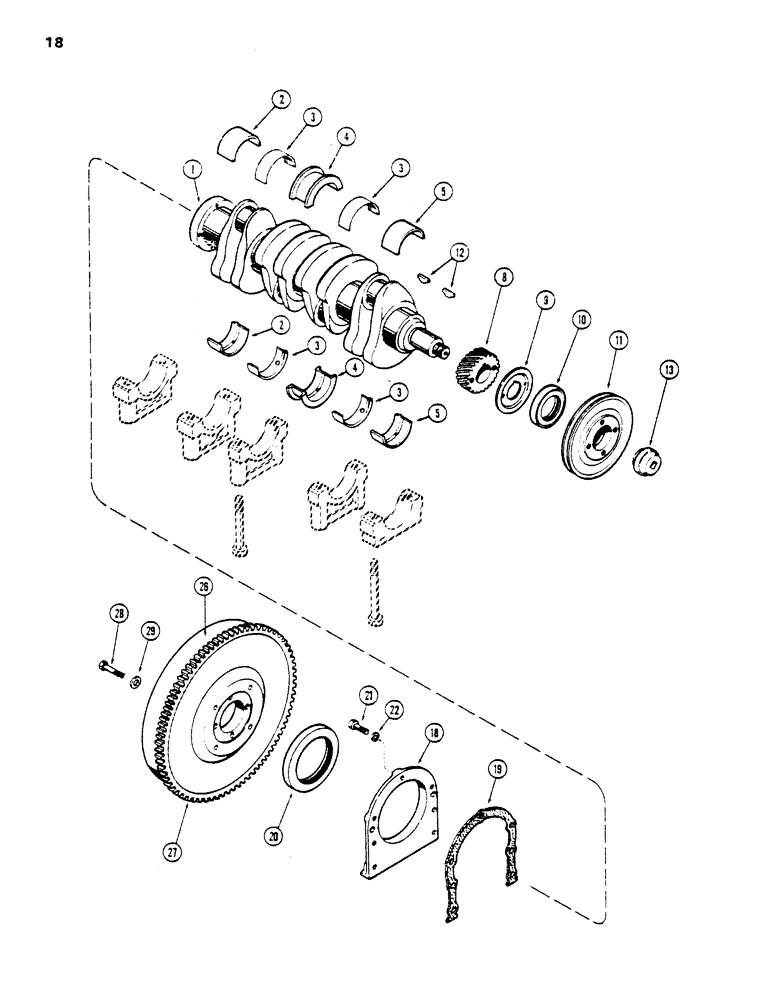

Запчасти Case DH5 (18) - CRANKSHAFT (10) - ENGINE

1

A39146

CRANKSHAFT

1шт.

2

A36495

BEARING LINER,73.72mm ID x 78.54mm OD x 39.69mm W

LINER SET - main brg., rear (Std.)(Set of 2)

1шт.

2

A36496

LINING

LINER SET - main brg., rear (-.002")(Set of 2)

1шт.

2

A36497

BEARING LINER,73.44mm ID x 78.54mm OD x 39.69mm W

LINER SET - main brg., rear (-.010")(Set of 2)

1шт.

2

A36498

KIT

LINER SET - main brg., rear (-.020")(Set of 2)

1шт.

2

A36499

BEARING LINER

LINER SET - main brg., rear (-.030")(Set of 2)

1шт.

3

A36485

LINING

LINER SET - main brg., intermediate (Std.)(Set of 2)

2шт.

3

A36486

LINING

LINER SET - main brg., intermediate (-.002")(Set of 2)

2шт.

3

A36487

BEARING LINER,73.44mm ID x 78.54mm OD x 25.4mm W

LINER SET - main brg., intermediate (-.010")(Set of 2)

2шт.

3

A36488

CRANKSHAFT BEARING,3.067" ID x 3.092" OD x 1"

LINER SET - main brg., intermediate (-.020")(Set of 2)

2шт.

3

A36489

LINING

LINER SET - main brg., intermediate (-.030")(Set of 2)

2шт.

4

A36490

BEARING LINER,73.41mm ID x 96.84mm OD x 34.87mm W

LINER SET - main brg., center (Std.)(Set of 2)

1шт.

4

A36491

LINING

LINER SET - main brg., center (-.002")(Set of 2)

1шт.

4

A36492

BEARING LINER,73.66mm ID x 96.84mm OD x 34.87mm W

LINER SET - main brg., center (-.010")(Set of 2)

1шт.

4

A36493

BEARING LINER,73.66mm ID x 96.84mm OD x 34.87mm W

LINER SET - main brg., center (-.020")(Set of 2)

1шт.

4

A36494

LINING

LINER SET - main brg., center (-.030")(Set of 2)

1шт.

5

A36480

BEARING LINER,73.69mm ID x 78.54mm OD x 32.66mm W

LINER SET - main brg., front (Std.)(Set of 2)

1шт.

5

A36481

LINING

LINER SET - main brg., front (-.002")(Set of 2)

1шт.

5

A36482

BEARING LINER,73.44mm ID x 78.54mm OD x 32.66mm W

LINER SET - main brg., front (-.010")(Set of 2)

1шт.

5

A36483

LINING

LINER SET - main brg., fornt (-.020")(Set of 2)

1шт.

5

A36484

LINING

LINER SET - main brg., front (-.030")(Set of 2)

1шт.

8

A39288

GEAR

- crankshaft

1шт.

9

A29259

SLINGER

- oil

1шт.

10

A39110

OIL SEAL,54mm ID x 76.33mm OD x 9.09mm Thk

- oil, front ( 2 x 3 x 1/2")

1шт.

11

A50962

PULLEY

- crankshaft

1шт.

12

A39132

KEY

- pulley & gear

2шт.

13

A35673

NUT

- pulley retaining

1шт.

18

A38390

RETAINER

- rear oil seal

1шт.

19

A39188

GASKET

- retainer

1шт.

20

A51339

OIL SEAL,101.6mm ID x 127.1mm OD x 9.5mm Thk

- oil, rear (4 x 5 1/2")

1шт.

21

26-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

- retainer (1/4 x 3/4" N.C. hex.)

4шт.

21

26-416

BOLT,Hex, 1/4" - 20 x 1", Gr 8

- retainer (1/4 x 1" N.C. hex.)

3шт.

22

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

7шт.

26

A135781

FLYWHEEL

ASSY.

1шт.

27

G11710

GEAR

- ring, starter, flywheel

1шт.

28

A37216

BOLT

- flywheel to crankshaft (7/16 x 2" N.F. hex.)

4шт.

29

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

- flywheel bolt (7/16 x 3/4 x 16 GA.)

4шт.
