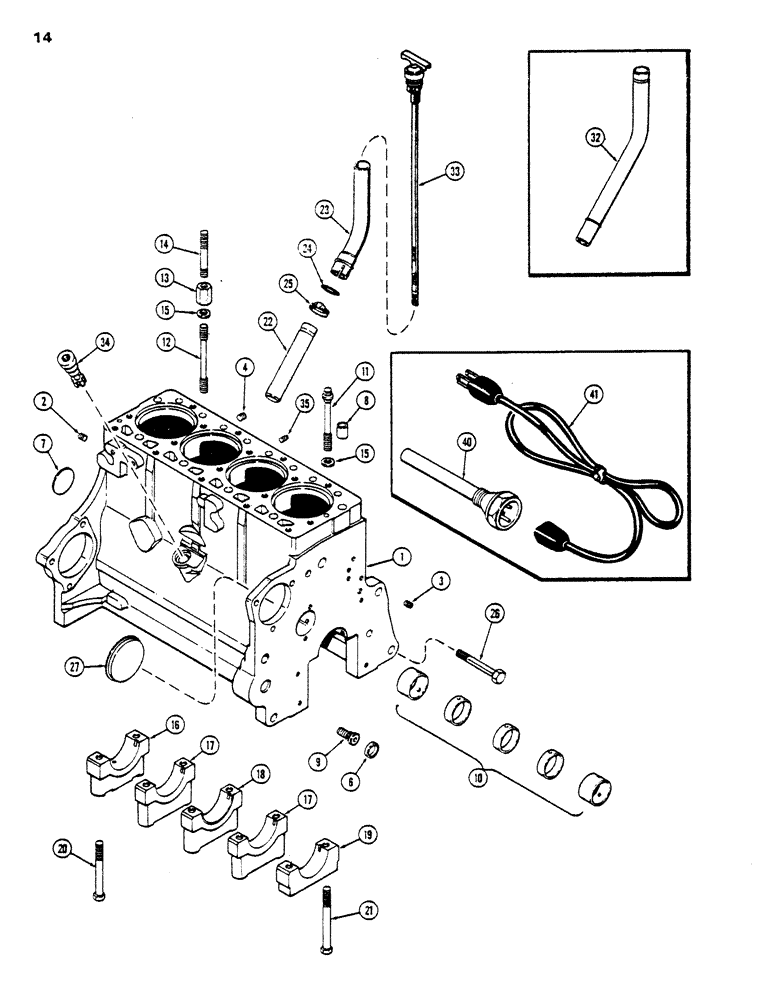

Запчасти Case DH5 (14) - CYLINDER BLOCK (10) - ENGINE

A143858

ENGINE ASSY. - (Davis Task Force 800)

1шт.

A44001

SHORT ENGINE

BLOCK ASSY. - short (Incl. stripped block, crankshaft & brgs., connecting rods & brgs., piston assy., camshaft, oil pump & timing gears

1шт.

1

A44702

BLOCK

ASSY. - stripped (Casting no. A136813)

1шт.

2

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

Rear oil gallery Hex Soc, 1/4"-18 NPTF

2шт.

3

G49070

PLUG

- front oil gallery (1/4" P.T., drilled)

1шт.

4

221-1032

DRAIN PLUG,Sq Soc, 3/8"-18 NPTF

PLUG - 3/8" P.T., sckt. hd.

1шт.

A38534

PLUG

- tach. drive hole (Not illustrated) (Used-for shipping purposes only)

1шт.

6

41-1016

PLUG,Cup, 1"

- adapter hole (1" cup type)

1шт.

7

A39241

PLUG,Exp, 2.12" dia

- camshaft hole (2-1/8" expansion)

1шт.

8

G49608

RING

- dowel, head locating

2шт.

9

A153552

ADAPTER

- oil filter

1шт.

10

A42746

CAM

BUSHING SET - camshaft

1шт.

11

A39047

12 PT SCREW

BOLT - cyl. head (1/2 x 3-1/2" N.C., 12 pt. hd.)

4шт.

11

A39048

12 PT SCREW

BOLT - cyl. head (1/2 x 5-1/8" N.C., 12 pt. hd.)

11шт.

11

A39049

12 PT SCREW

BOLT - cyl. head (1/2 x 5-5/8" N.C., 12 pt. hd.)

2шт.

12

A36902

STUD

- cyl. head, lower (1/2" N.C. x 5-5/8")

2шт.

13

A51114

NUT

- head studs (1/2" N.C. & 3/8" N.C.)

2шт.

14

A51271

STUD

- cyl. head cover (3/8" N.C. x 3-3/4")

2шт.

15

A39046

WASHER,13.11mm ID x 22.23mm OD x 3.34mm Thk

- 1/2 x 7/8 x 1/8"

19шт.

16

A51057

CAP

- main bearing, rear

1шт.

17

A51055

CAP

- main bearing, intermediate

2шт.

18

51056

CAP - main bearing, center

1шт.

19

A51054

CAP

- main bearing, front

1шт.

20

26-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 8

- brg. caps (1/2 x 4-1/2" N.C. hex.)

8шт.

21

26-882

BOLT,Hex, 1/2" - 13 x 5-1/8", Gr 8

- brg. cap (1/2 x 5-1/8" N.C. hex)

2шт.

22

A37149

TUBE

- oil filler & dipstick (7-1/2" long) (Used w/A37407 extension)(See Ref. 32)

1шт.

23

A37407

TUBE

EXTENSION - (Used w/A37149 filler tube)

1шт.

24

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

"O" RING - tube (1-1/8 x 1-3/8 x 1/8")

1шт.

25

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - tube (1-3/16" to 1-3/4")

1шт.

26

A38303

BOLT

BOLT - front support (5/8 x 3-3/16" N.C. hex.)

1шт.

27

41-1052

PLUG,Cup, 3 1/4"

COVER - auxiliary drive opening (3-1/4" cup type)

1шт.

32

NSS

NOT SOLD SEPARAT

- oil filler & dipstick (Used in production only) (Must be ordered & used seperate) (Do not use w/A37149 tube or A37407 extension)

1шт.

33

A136379

DIPSTICK

- engine oil level (20-1/2" long)

1шт.

34

A137572

DRIVE

ASSY. - tachometer

1шт.

35

221-662

PLUG,Hex Hd, 1/4"-18

- drain, cyl. block (1/4" P.T., hex. sckt. hd.)

1шт.

40

44815

SPARE PART

HEATER ASSY. - cylinder block

1шт.

41

44814

SPARE PART

CORD ASSY. - heater (12" long), block

1шт.
