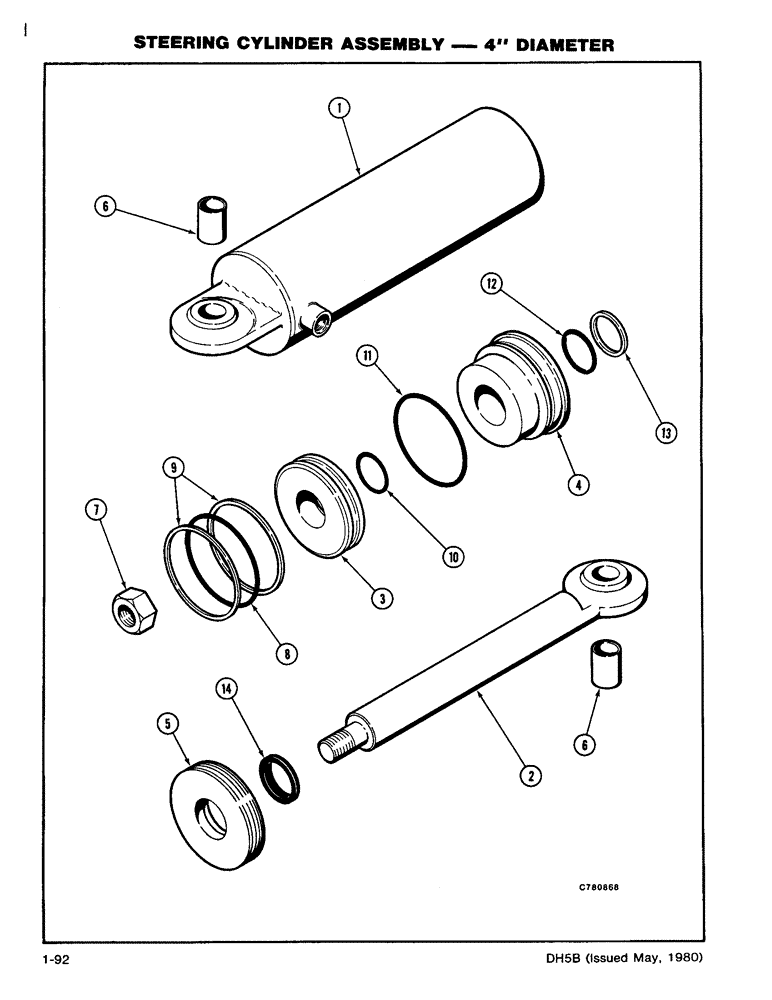

Запчасти Case DH5 (1-92) - STEERING CYLINDER ASSEMBLY - 4" DIAMETER (41) - STEERING

H639872

CYLINDER

ASSEMBLY - Steering, Includes: Ref. 1 - 14

1шт.

1

H647123

TUBE ASSY.

BARREL

1шт.

2

H645366

ROD

- Piston

1шт.

3

H387076

PISTON

1шт.

4

H387084

GLAND

BEARING

1шт.

5

H387092

RETAINER

- Bearing

1шт.

6

H387100

BUSHING

2шт.

7

H131-17

NUT - NF Hex Lock (7/8)

1шт.

H623249

SEAL ASSY.

KIT - Seal Repair, Includes: Ref. 8 - 14

1шт.

8

NSS

NOT SOLD SEPARAT

O RING - Piston Seal

1шт.

9

NSS

NOT SOLD SEPARAT

RING - Backup

2шт.

10

NSS

NOT SOLD SEPARAT

O RING - Rod Static Seal

1шт.

11

NSS

NOT SOLD SEPARAT

O RING - Bearing Static Seal

1шт.

12

NSS

NOT SOLD SEPARAT

RING - Backup

1шт.

13

NSS

NOT SOLD SEPARAT

RING - Backup

1шт.

14

NSS

NOT SOLD SEPARAT

Wiper - Rod

1шт.
