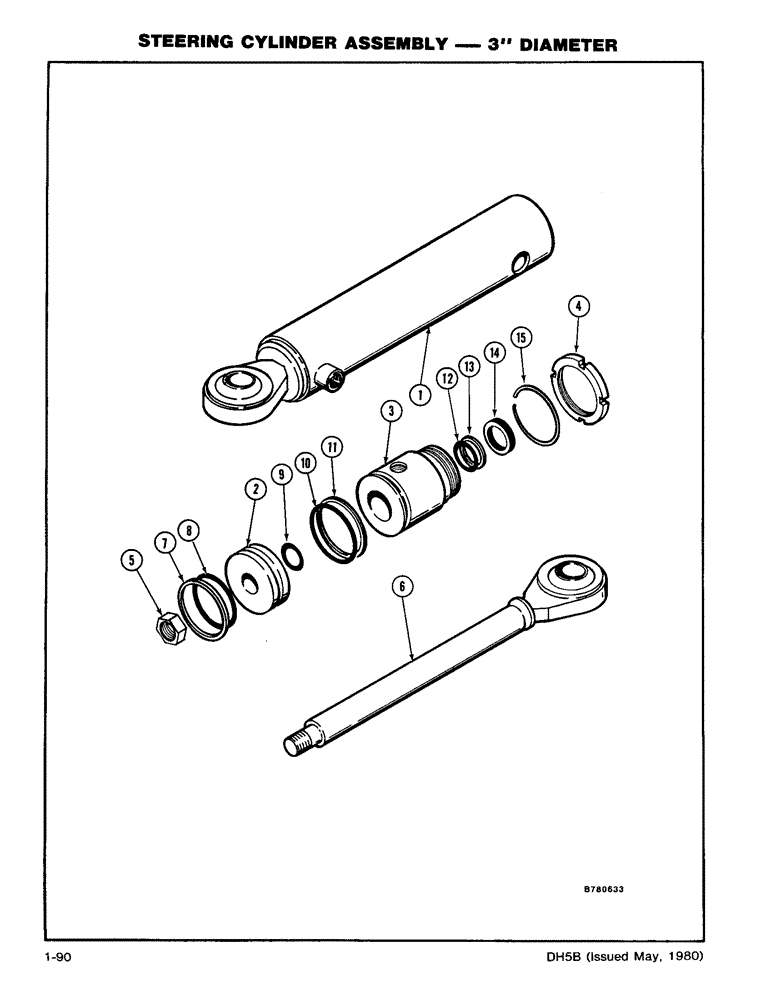

Запчасти Case DH5 (1-90) - STEERING CYLINDER ASSEMBLY - 3" DIAMETER (41) - STEERING

H654202

CYLINDER BLOCK

STEERING CYLINDER ASSEMBLY - 3" Diameter, Includes: Ref. 1 - 15

1шт.

H654202 is actually a 2.5" CYL per print.

1шт.

1

H406710

STEERING CYLINDER

BARREL

1шт.

2

H171926

PISTON

1шт.

3

H70078

BEARING

1шт.

4

H745786

BEARING LOCK NUT

- Bearing

1шт.

5

230-46112

LOCK NUT,3/4"-16, GA

NUT - Lock

1шт.

6

H406728

PISTON ROD

ROD - Piston

1шт.

H171983

GASKET KIT

KIT - Seal Repair, Includes: Ref. 7 - 15

1шт.

7

NSS

NOT SOLD SEPARAT

RING - Slipper

1шт.

8

NSS

NOT SOLD SEPARAT

O RING - Piston Seal

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING - Piston Seal

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - Bearing Seal

1шт.

11

NSS

NOT SOLD SEPARAT

WASHER - Backup

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - Rod Seal

1шт.

13

NSS

NOT SOLD SEPARAT

WASHER - Backup

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL - Wiper

1шт.

15

NSS

NOT SOLD SEPARAT

RING - Lock

1шт.
