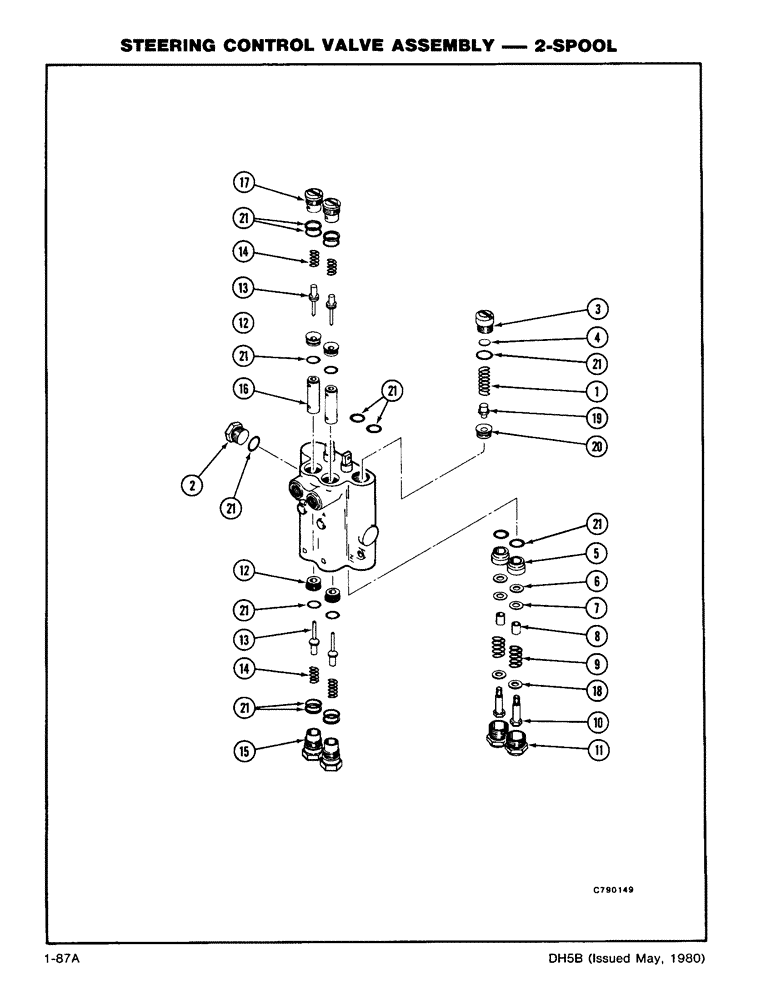

Запчасти Case DH5 (1-87A) - STEERING CONTROL VALVE ASSEMBLY - 2-SPOOL (41) - STEERING

H630244

VALVE

ASSEMBLY - Steering Control, Includes: Ref. 1 - 21

1шт.

1

L33609

SPRING

- Relief Valve (Purple)

1шт.

2

86512512

PLUG,7/8" - 14 ORB

1шт.

3

F37892

PLUG

- (Includes O-Ring)

1шт.

4

H220798

SHIM,.035" Thk

1шт.

4

F12267

WASHER

SHIM (.010)

1шт.

4

H746179

SHIM (.015)

1шт.

5

F36304

BUSHING

2шт.

6

H253054

WASHER

1шт.

7

H235062

WASHER

2шт.

8

F36239

SPACER

- Spool

2шт.

9

F36306

SPRING

- Spool

2шт.

10

F36135

SCREW - Spool

2шт.

11

F36305

CAP

- Spool

2шт.

12

H636951

SEAT

- (Includes O-Ring and Backup Washer)

4шт.

13

F88777

PLUNGER

POPPET - (Included in Seal Repair Kit)

4шт.

14

H364182

SPRING

- Lockout

4шт.

15

H636969

FITTING

- Lockout Port (Includes O-Ring and Backup Washer)

2шт.

16

F8229

PLUNGER

2шт.

17

H636977

PLUG

RETAINER

2шт.

18

F36908

WASHER

2шт.

19

F37837

VALVE POPPET

POPPET - Relief Valve

1шт.

20

NSS

NOT SOLD SEPARAT

SEAT - Relief Valve

1шт.

21

H636985

SEAL ASSY.

KIT - Seal Repair Kit

1шт.
