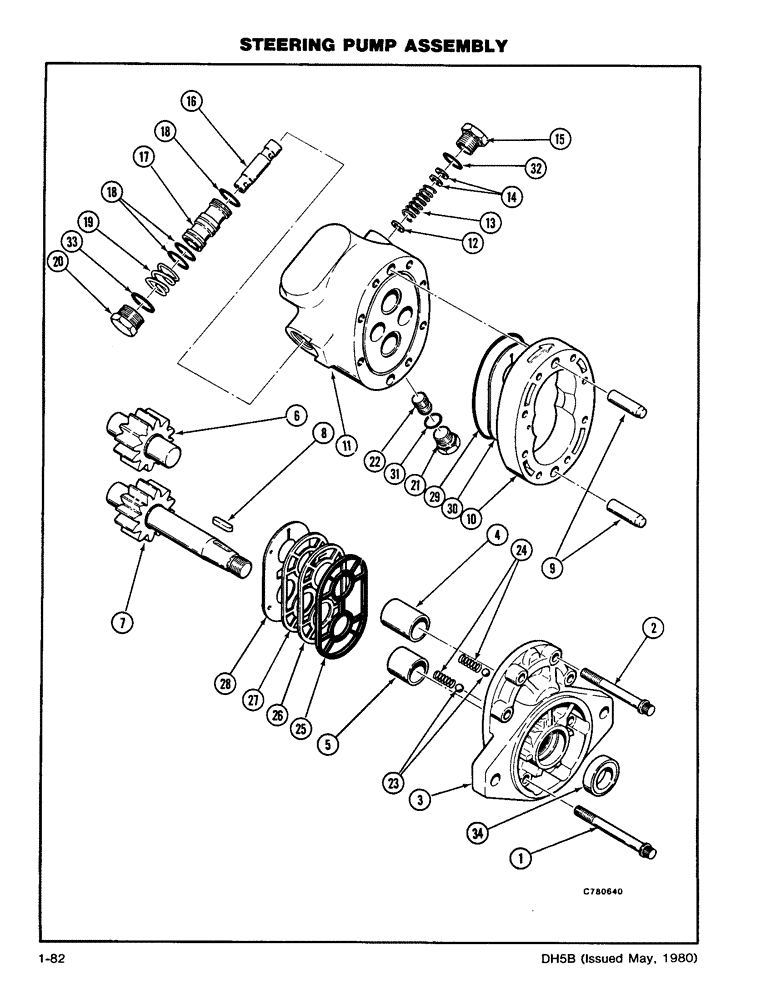

Запчасти Case DH5 (1-82) - STEERING PUMP ASSEMBLY (41) - STEERING

H630087

PUMP

ASSEMBLY - Steering, Includes: Ref. 1 - 34

1шт.

1

166-32

12 PT SCREW,Flg, 5/16" - 18 x 2 1/2", Gr 8

SCREW - (5/16 - 18 x 2 1/2)

4шт.

2

166-31

12 PT SCREW,Flg, 5/16" - 18 x 2 1/4", Gr 8

SCREW - (5/16 - 18 x 2 1/4)

4шт.

H233528

PLATE

FRONT PLATE ASSEMBLY, Includes: Ref. 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

PLATE - Front

1шт.

4

NSS

NOT SOLD SEPARAT

BUSHING - Long

1шт.

5

NSS

NOT SOLD SEPARAT

BUSHING - Short

1шт.

6

H563007

GEAR

- Idler

1шт.

7

H642942

GEAR

- Drive

1шт.

8

H379156

KEY

1шт.

9

H753855

GUIDE

PIN - Dowel (5/16 x 1 1/4)

2шт.

10

H378950

BODY

1шт.

H642959

PLATE

KIT - Back Plate Repair, Includes: Ref. 11 - 22

1шт.

Replaced by H202804

1шт.

11

NSS

NOT SOLD SEPARAT

BACK PLATE

1шт.

12

L33506

DISC

1шт.

13

L33610

SPRING

1шт.

14

F33506

DISC

1шт.

15

L33501

PLUG

ASSEMBLY

1шт.

H757492

SEAL

O RING

1шт.

16

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

17

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

18

NSS

NOT SOLD SEPARAT

O RING

3шт.

19

F21353

SPRING

1шт.

20

L33509

PLUG

ASSEMBLY

1шт.

A41316

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

O RING

1шт.

21

H643072

PLUG

ASSEMBLY

1шт.

H757583

O-RING,0.103" Thk x 0.424" ID, -11, Cl 6, 90 Duro

O RING

1шт.

22

NSS

NOT SOLD SEPARAT

PLUG

1шт.

H642967

PACKAGE

KIT - Seal Repair, Includes: Ref. 23 - 34

1шт.

23

211-306

BALL,7/32" Dia

- Steel

2шт.

24

F9883

SPRING

2шт.

25

H262469

SEAL

- Diaphragm

1шт.

26

H366922

GASKET

- Backup

1шт.

27

H262477

GUARD

GASKET - Protector

1шт.

28

D77645

DIAPHRAGM

1шт.

29

F30415

O-RING,3" ID

O RING

1шт.

30

H226886

PLATE

- Thrust

1шт.

31

H757583

O-RING,0.103" Thk x 0.424" ID, -11, Cl 6, 90 Duro

O RING

1шт.

32

H757492

SEAL

O RING

1шт.

33

A41316

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

O RING

1шт.

34

H263608

SEAL

- Shaft

1шт.
