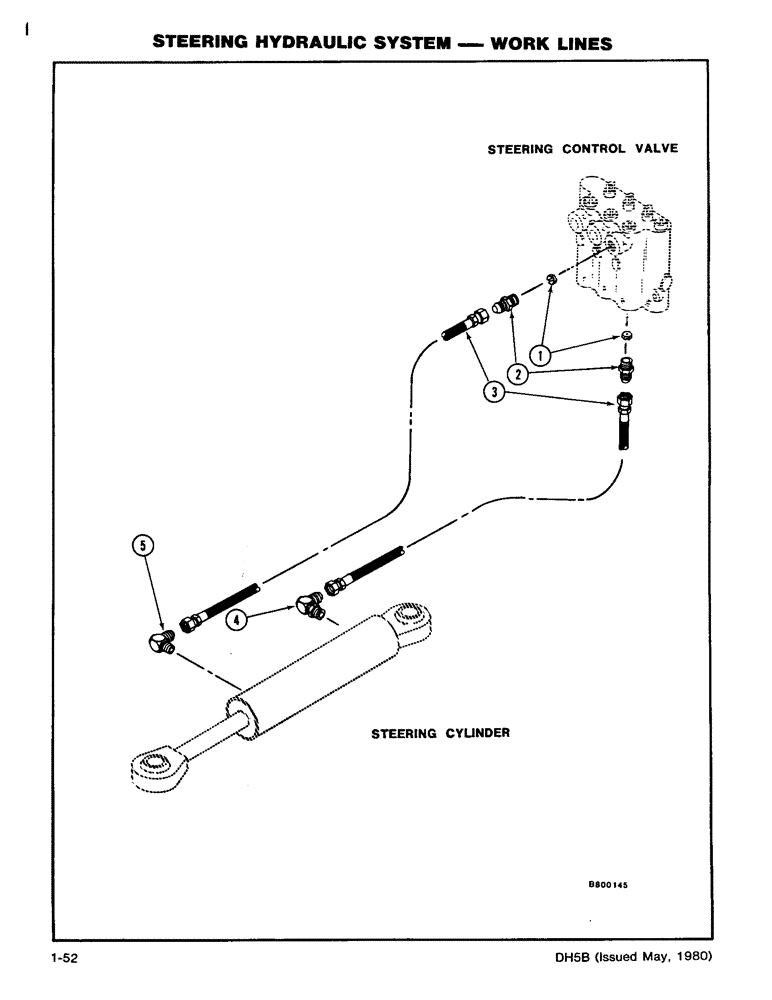

Запчасти Case DH5 (1-52) - STEERING HYDRAULIC SYSTEM - WORK LINES (41) - STEERING

1

H746875

SCREW

PLATE - Orifice (.043) (2 1/2" Cyl Only)

2шт.

Used with 2 1/2" Steering Cylinder Only

1шт.

2

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR (9/16 ORB x 9/16 JICM)

2шт.

3

H249615

HYDRAULIC HOSE,6.35 mm ID x 1574.80 mm, SAE 100R1

6.35 mm ID x 1574.80 mm, SAE 100R1

2шт.

4

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree (9/16 ORB x 9/16 JICM)

1шт.

5

218-1053

ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/8"-18, NPTF

- 90 degree (3/8 x 9/16 JICM) - 2 1/2" Cylinder

1шт.

Used with 2 1/2" Steering Cylinder Only

1шт.

5

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree (9/16 ORB x 9/16 JICM) - 4" Cylinder

1шт.

Used with 4" Steering Cylinder Only

1шт.
