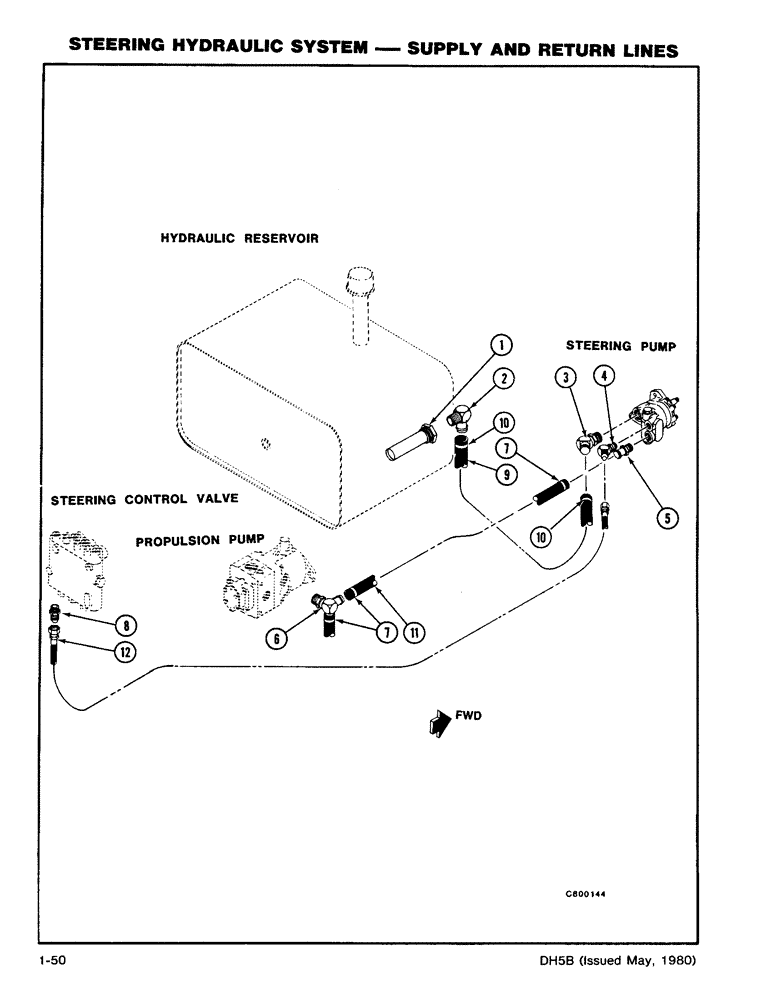

Запчасти Case DH5 (1-50) - STEERING HYDRAULIC SYSTEM - SUPPLY AND RETURN LINES (41) - STEERING

1

H151399

FILTER STRAINER

SCREEN - Suction

1шт.

2

217-136

ELBOW,90 Degree Elbow, 1" Hose Barb x 1" Male NPTF

- 90 degree (IMP x 1 Hose)

1шт.

3

217-309

FITTING,45 Degree Elbow, 1" Hose Barb x 1-1/16" - 12 Male ORB

ELBOW - 45 degree (1 1/16 ORB x Hose)

1шт.

4

218-5529

ELBOW,45 Degree, 9/16" - 18 ORB x 3/4" - 16 JIC

- 45 degree (9/16 ORB x 3/4 JICM)

1шт.

5

217-396

FITTING,3/4" Hose Barb x 3/4" - 16 Male ORB

CONNECTOR (3/4 ORB x 3/4 Hose)

1шт.

6

H339762

TEE

(1 1/16 ORB x 3/4 Hose x 3/4 Hose)

1шт.

7

217-254

CLAMP - Hose (#12)

3шт.

8

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - (3/4 ORB x 3/4 JICM)

1шт.

9

031469

HOSE (1 x 19)

1шт.

10

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - Hose (#20)

2шт.

11

H317271

HOSE

(3/4 x 30)

1шт.

12

H431114

HYDRAULIC HOSE,9.52 mm ID x 2400.00 mm, SAE 100R2

(3/4 JIC Fw Sw ends) 9.52 mm ID x 2400.00 mm, SAE 100R2

1шт.
