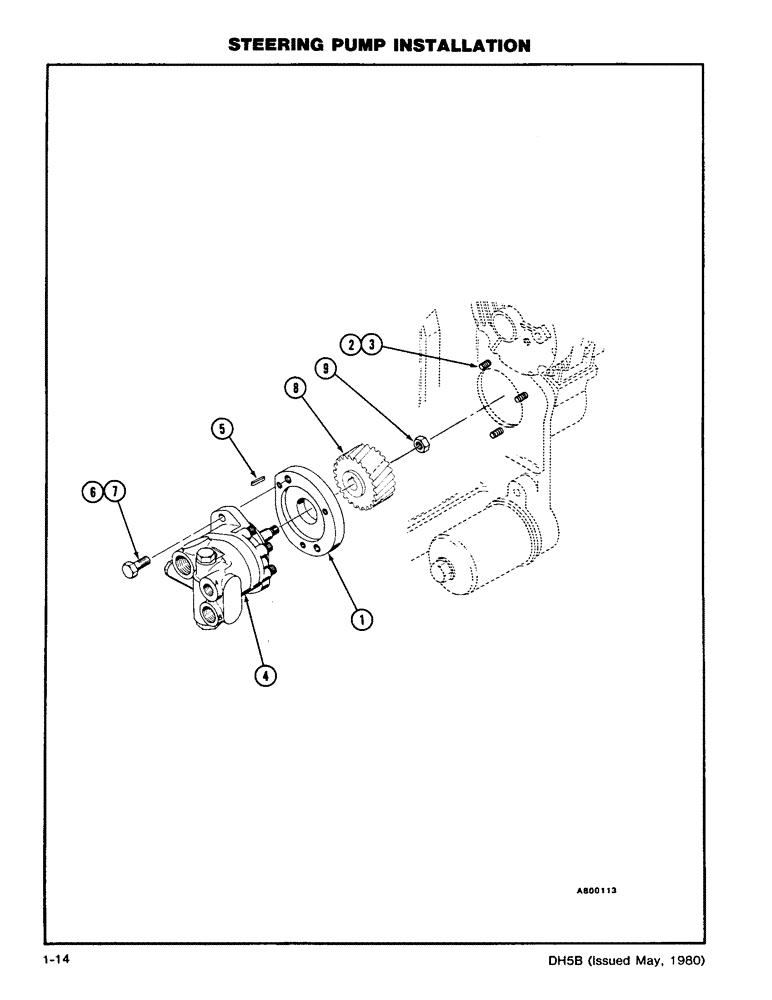

Запчасти Case DH5 (1-14) - STEERING PUMP INSTALLATION (41) - STEERING

1

H322818

PLATE

- Adapter, Includes: Ref. 2 and 3

1шт.

2

NSS

NOT SOLD SEPARAT

BOLT

3шт.

3

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

4

H630087

PUMP

- Steering (See Fig. 1-82)

1шт.

5

H379156

KEY

Includes: Ref. 6 and 7

1шт.

6

113-310

BOLT,Hex, 7/16" - 14 x 1", Gr 5

2шт.

7

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

8

H632067

GEAR WHEEL

GEAR - Steering Pump, Includes: Ref. 9

1шт.

9

131-1119

LOCK NUT,7/16"-24, GA

NUT - NF Hex T/L (7/16)

1шт.
