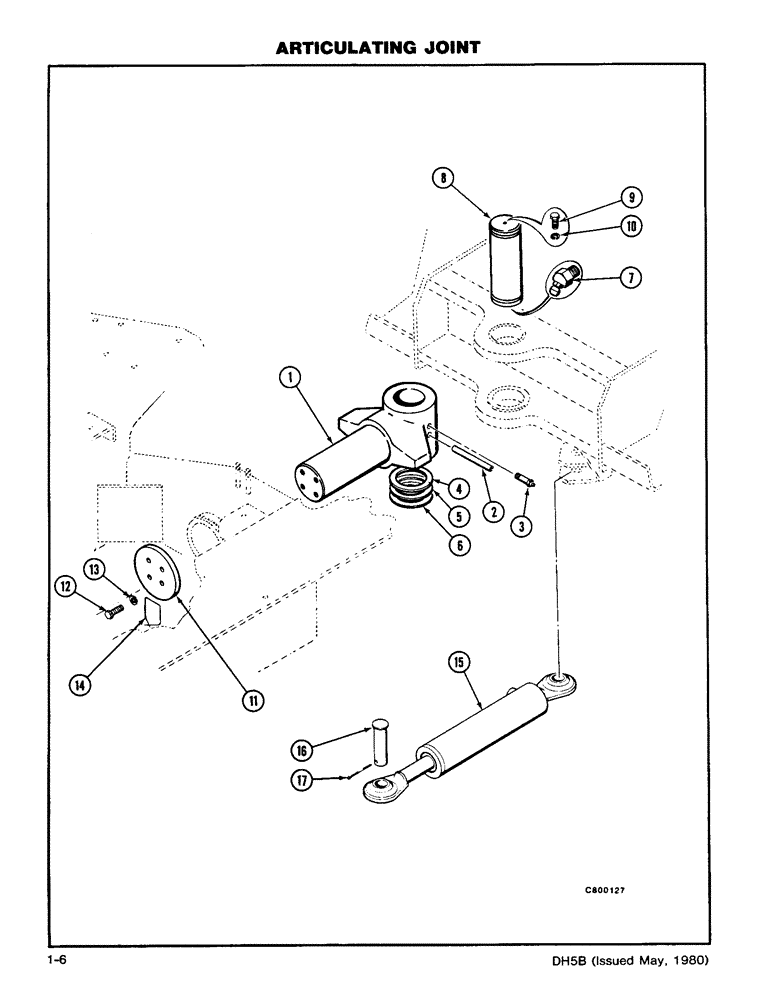

Запчасти Case DH5 (1-06) - ARTICULATING JOINT (39) - FRAMES AND BALLASTING

1

H276964

AXLE PIN

SHAFT - Pivot

1шт.

2

H216572

AXLE PIN

PIN - Keeper

1шт.

3

219-417

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - Grease

1шт.

4

H260943

SHIM,.135" Thk

1шт.

5

H260950

SHIM,.060" Thk

1шт.

6

H261834

SHIM,.030" Thk

1шт.

7

219-38

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING - Grease (1/4 x 45 degree)

1шт.

8

H209189

PIVOT PIN

PIN - Pivot

1шт.

9

114-2

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

- NF HH (1/4 x 1/2)

1шт.

10

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

11

H210708

PLATE

- Cap

1шт.

12

H283614

BOLT

- Hex Hd (Special)

4шт.

13

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - Flat

8шт.

14

H283648

WIRE - Lock

1шт.

15

H654202

CYLINDER BLOCK

CYLINDER - Steering - 3" Diameter (See Fig. 1-90), Includes: Ref. 16 and 17

1шт.

Ref. 15, H654202 is actually a 2.5" CYL per print.

1шт.

15

H639872

CYLINDER

- Steering - 4" Diameter (See Fig. 1-92), Includes: Ref. 16 and 17

1шт.

16

H70623

AXLE PIN

PIN - Clevis (1 x 3 1/2)

2шт.

17

132-345

COTTER PIN,3/16" x 1 1/2"

PIN, SPLIT (COTTER), 3/16" x 1 1/2"

2шт.
