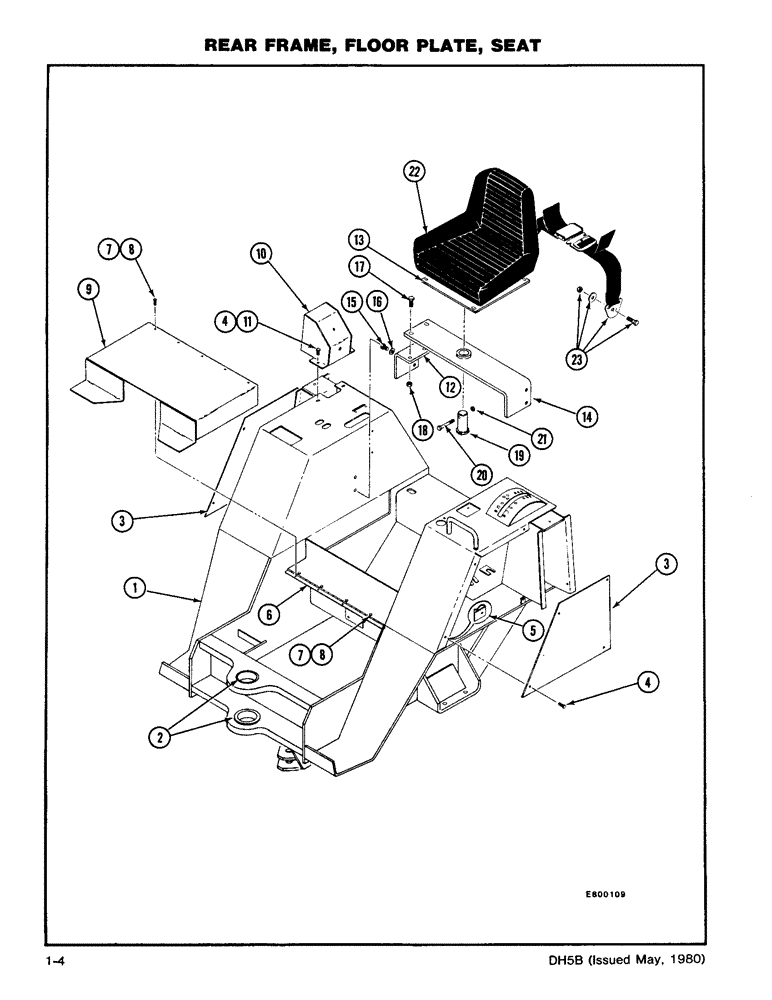

Запчасти Case DH5 (1-04) - REAR FRAME, FLOOR PLATE, SEAT (39) - FRAMES AND BALLASTING

1

H656090

REAR FRAME ASSEMBLY, Includes: Ref. 2

1шт.

2

H207449

BUSHING

- Pivot

2шт.

3

H339051

PLATE

COVER - Console

2шт.

4

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

10шт.

5

H346650

NUT

- "U" Type (5/16)

8шт.

6

H334714

HINGE

- Floorplate

1шт.

7

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

10шт.

8

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

10шт.

9

H626226

PLATE

FLOORPLATE

1шт.

10

H625723

CONTROL

BOX - Control

1шт.

11

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - NC Hex C/L (5/16)

2шт.

12

H360198

ANGLE - Seat Mounting

1шт.

13

H623496

SEAT

PLATE - Seat Mounting

1шт.

14

H635607

MOUNTING - Seat

1шт.

15

113-433

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5, Full Thd

4шт.

16

192-63

LOCK WASHER,1/2"

1/2"

4шт.

17

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

18

131-1182

LOCK NUT,1/2"-13, GA

NUT - NC Hex C/L (1/2)

2шт.

19

H315531

AXLE PIN

PIN - Seat Mtg

1шт.

20

113-248

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

1шт.

21

230-4216

LOCK NUT,3/8"-16, GA

NUT - NC Hex C/L (3/8)

1шт.

22

H594556

SEAT

1шт.

23

D75997

SAFETY BELT ,1.80" W

1.80" W

1шт.
