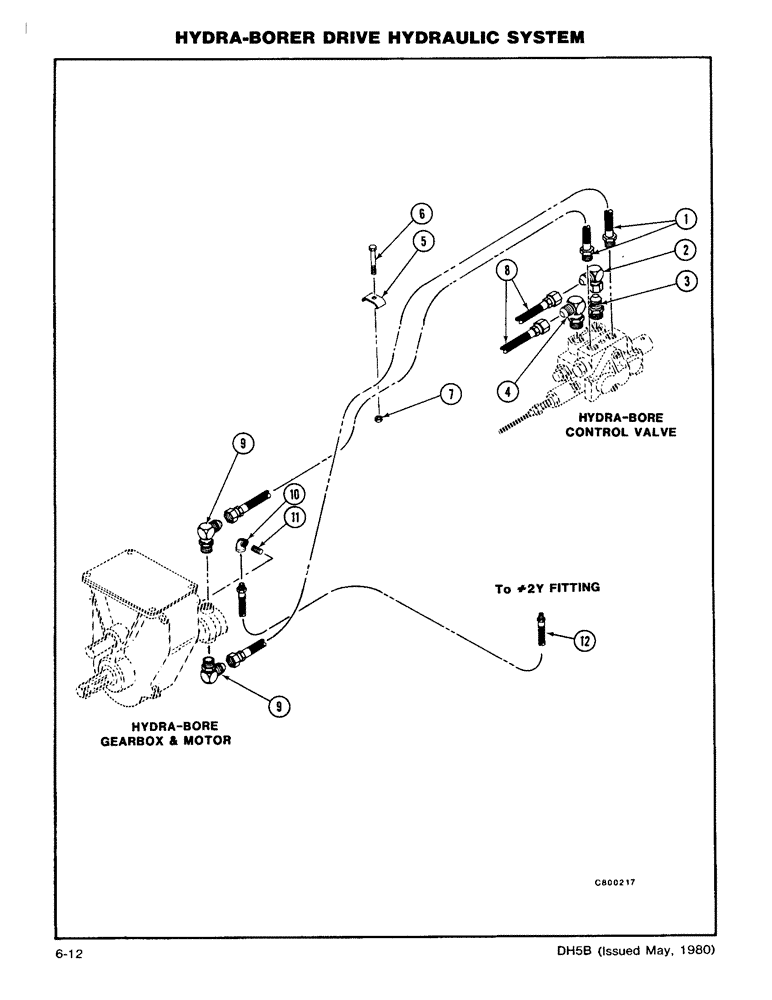

Запчасти Case DH5 (6-12) - HYDRA-BORER DRIVE HYDRAULIC SYSTEM (35) - HYDRAULIC SYSTEMS

1

H257113

HYDRAULIC HOSE,12.70 mm ID x 1600.20 mm, SAE 100R1

(7/8 ORB x 7/8 JIC Fe Swv) 12.70 mm ID x 1600.20 mm, SAE 100R1

2шт.

2

218-5119

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

- 90 degree (7/8 JIC Fe Swv x 7/8 JIC M)

1шт.

3

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - (1 1/16 ORB x 7/8 JIC M)

1шт.

4

218-5119

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

- 90 degree (1 1/16 ORB x 7/8 JIC M)

1шт.

5

H46888

CLAMP

- Hose

1шт.

6

113-111

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

1шт.

7

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - Hex (5/16 NC - Lock)

1шт.

8

H350918

HOSE

- 1/2 x 100 /8 JIC Fe Swv Ends)

2шт.

9

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

(7/8 ORB x 7/8 JIC M) 90º, 7/8"-14, 37º x 7/8"-14, O-Ring

2шт.

10

221-102

PIPE,Nipple, 1/8" NPT x 7/8"

NIPPLE - Pipe (1/8 x 7/8)

1шт.

11

221-743

ADAPTER

ELBOW - Pipe, Serial Range: (1/8-1/4)

1шт.

12

H88906

HOSE - 1/4 x 63 (1/8 MP x 1/4 MP)

1шт.
