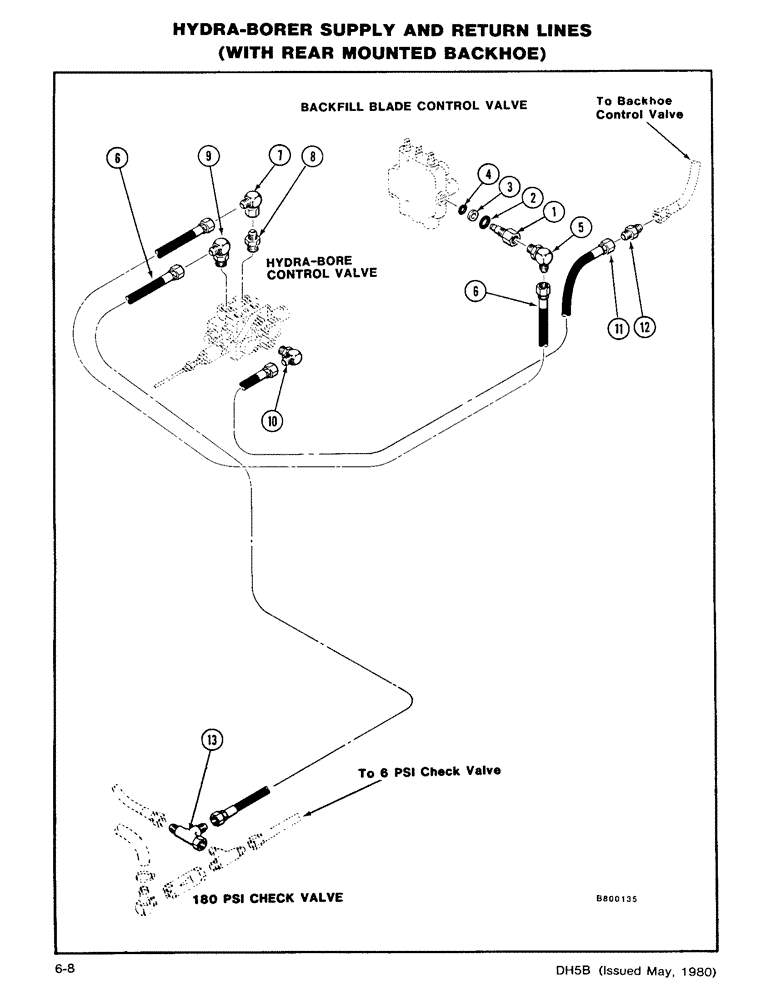

Запчасти Case DH5 (6-08) - HYDRA-BORER SUPPLY AND RETURN LINES (WITH REAR MOUNTED BACKHOE) (35) - HYDRAULIC SYSTEMS

D61608

SLEEVE

ADAPTER - Power Beyond, Includes Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

BODY

1шт.

2

A18414

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

- Large

1шт.

3

D37070

SEAL,13.16mm ID x 15.85mm OD x 1.25mm Thk

WASHER - Backup

1шт.

4

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

-Small

1шт.

5

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Adj (7/8 ORB x 7/8 JIC M) 90º, 7/8"-14, 37º x 7/8"-14, O-Ring

1шт.

6

H350918

HOSE

- 1/2 x 100 (7/8 JIC Fm Swv Ends)

2шт.

7

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

- 90 degree /8 JIC Fm Swv x 7/8 JIC M)

1шт.

8

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - Straight /8 JIC M x 1 1/16 ORB)

1шт.

9

218-5119

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

- 90 degree /8 JIC M x 1 1/16 ORB)

1шт.

10

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Adj (7/8 JIC M x 7/8 ORB) 90º, 7/8"-14, 37º x 7/8"-14, O-Ring

1шт.

11

H350918

HOSE

- 1/2 x 100 (7/8 JIC Fm Swv Ends)

1шт.

12

218-736

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

CONNECTOR - Straight (7/8 JIC M x 7/8 JIC M)

1шт.

13

218-5220

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

CONNECTOR - Tee /8 JIC M x 7/8 JIC M x 7/8 JIC Fm Swv)

1шт.
