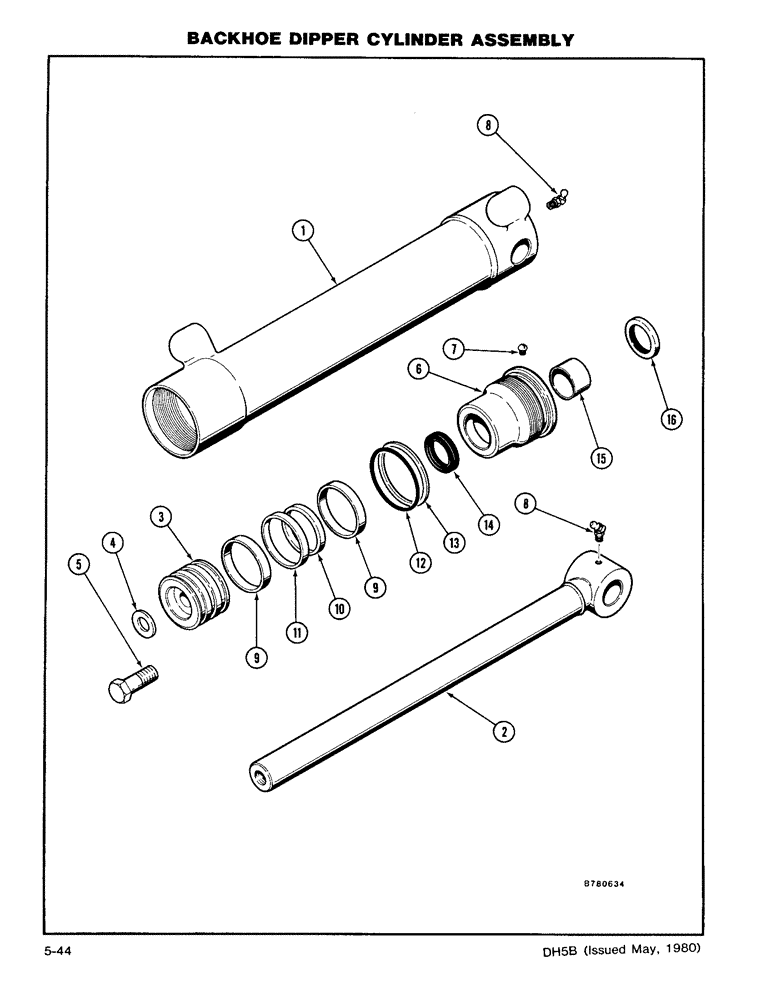

Запчасти Case DH5 (5-44) - BACKHOE DIPPER CYLINDER ASSEMBLY (35) - HYDRAULIC SYSTEMS

G100931

CYLINDER

ASSEMBLY - Dipper - D-100XR, Includes Ref. 1 - 16

1шт.

1

G100932

TUBE

BARREL

1шт.

2

G34179

ROD

- Piston

1шт.

3

G35263

PISTON

1шт.

4

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- Special

1шт.

5

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

1шт.

6

G35218

GLAND

Includes Ref. 7

1шт.

7

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - NC Self Tapping (#8 x 1/4)

1шт.

8

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - Grease

2шт.

G34656

SEAL

KIT - Seal Repair, Includes Ref. 9 - 16

1шт.

9

NSS

NOT SOLD SEPARAT

RING - Wear

1шт.

Included With Ref. 3

1шт.

10

NSS

NOT SOLD SEPARAT

O RING

1шт.

Included With Ref. 3

1шт.

11

NSS

NOT SOLD SEPARAT

RING

1шт.

Included With Ref. 3

1шт.

12

NSS

NOT SOLD SEPARAT

O RING

1шт.

Included With Ref. 6

1шт.

13

NSS

NOT SOLD SEPARAT

WASHER - Backup

1шт.

Included With Ref. 6

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL - Rod

1шт.

Included With Ref. 6

1шт.

15

NSS

NOT SOLD SEPARAT

BEARING - Rod

1шт.

Included With Ref. 6

1шт.

16

NSS

NOT SOLD SEPARAT

WIPER - Rod

1шт.

Included With Ref. 6

1шт.
