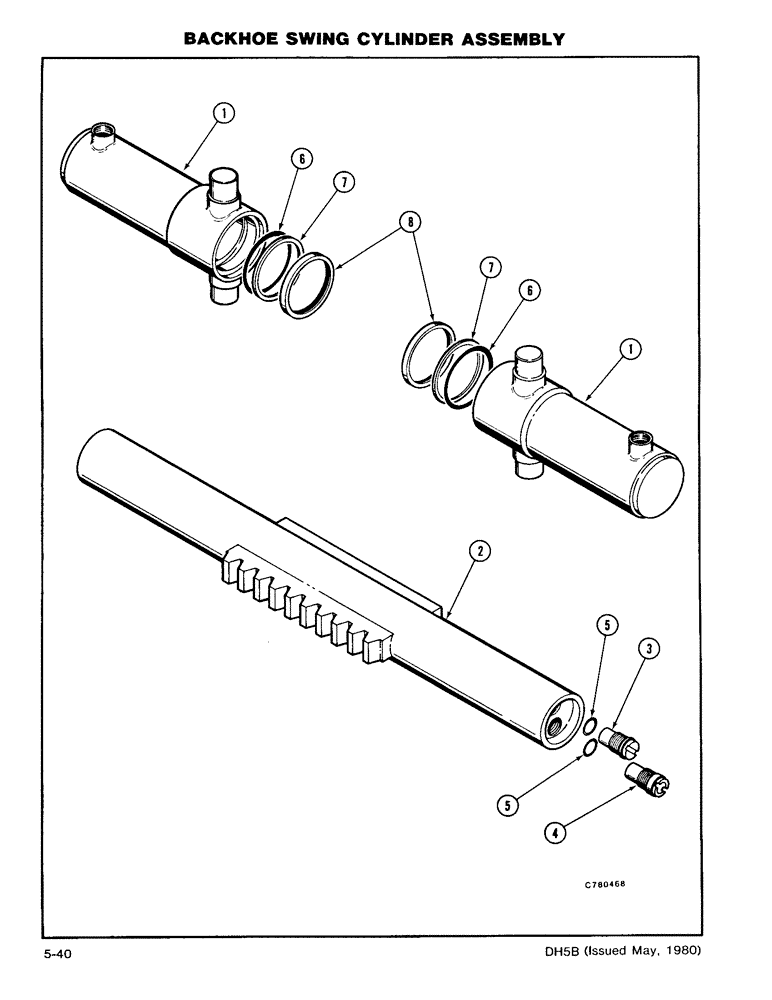

Запчасти Case DH5 (5-40) - BACKHOE SWING CYLINDER ASSEMBLY (35) - HYDRAULIC SYSTEMS

H514125

CYLINDER ASSY.

CYLINDER ASSEMBLY - Backhoe Swing, Includes Ref. 1 - 8

1шт.

1

H392068

BARREL

2шт.

2

H53017

PISTON ROD

ROD - Piston

1шт.

3

H53025

LOCK VALVE

VALVE ASSEMBLY - relief, 2000 psi (Includes O Ring)

1шт.

4

H53033

LOCK VALVE

VALVE ASSEMBLY - Relief, 2000 psi (Includes O Ring)

1шт.

H53041

SEAL ASSY.

KIT - Seal Repair, Includes Ref. 5 - 8

1шт.

5

NSS

NOT SOLD SEPARAT

O RING

2шт.

6

NSS

NOT SOLD SEPARAT

O RING

2шт.

7

NSS

NOT SOLD SEPARAT

WASHER - Backup

2шт.

8

NSS

NOT SOLD SEPARAT

SEAL - Dust

2шт.
