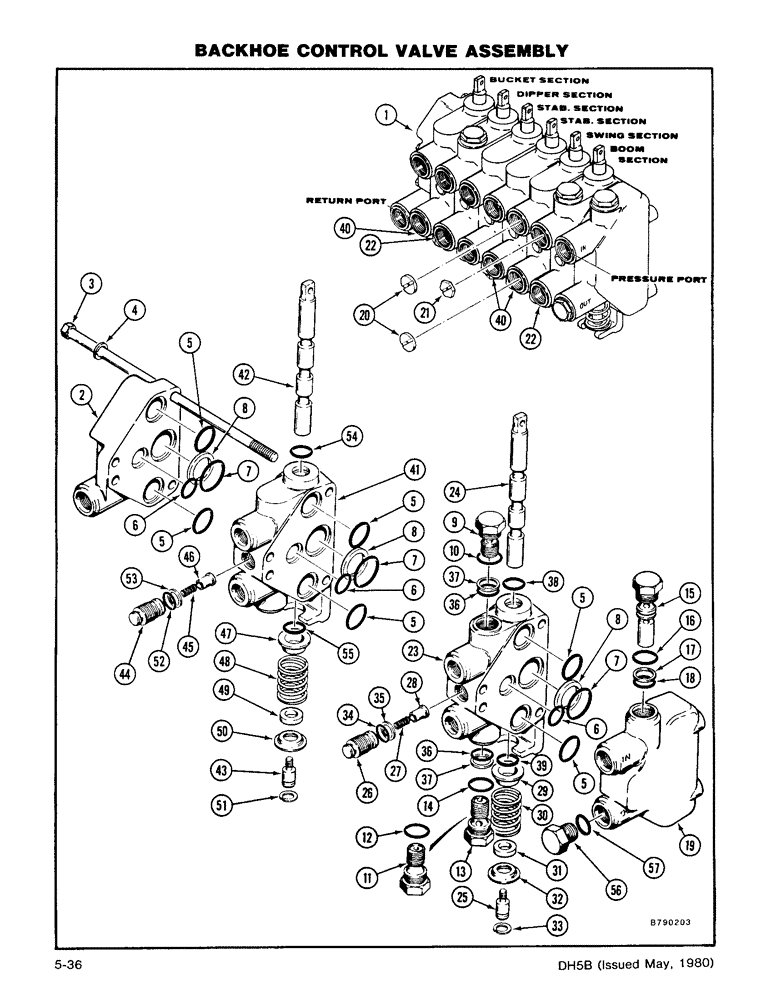

Запчасти Case DH5 (5-36) - BACKHOE CONTROL VALVE ASSEMBLY (35) - HYDRAULIC SYSTEMS

1

H513788

LOCK VALVE

BACKHOE CONTROL VALVE ASSEMBLY, Includes Ref. 2 - 4

1шт.

2

H52803

PLATE ASSY.

PLATE - End, Includes Ref. 3 and 4

1шт.

3

H52811

BOLT

BOLT - Retaining

4шт.

4

92-6

LOCK WASHER,3/8"

4шт.

H52969

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

KIT - Seal Between Sections, Includes Ref. 5 - 8

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL - O Ring

14шт.

6

NSS

NOT SOLD SEPARAT

SEAL - O Ring

7шт.

7

NSS

NOT SOLD SEPARAT

SEAL - O Ring

7шт.

8

NSS

NOT SOLD SEPARAT

WASHER - Backup

7шт.

H351791

VALVE

- Relief, 3000 psi (Dipper & Boom Section Top)

2шт.

9

NSS

NOT SOLD SEPARAT

BODY - Relief Valve

1шт.

10

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

SEAL - O Ring

1шт.

11

H52837

PLUG

- Dipper Section

1шт.

12

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

SEAL - O Ring

1шт.

H351791

VALVE

- Relief, 3000 psi (Boom Section Bottom)

1шт.

13

NSS

NOT SOLD SEPARAT

BODY - Relief

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL - O Ring

1шт.

F88054

VALVE

- Relief, 2000 psi (Port Plate)

1шт.

15

NSS

NOT SOLD SEPARAT

BODY - relief

1шт.

H226415

SEAL ASSY.

KIT - Seal

1шт.

16

NSS

NOT SOLD SEPARAT

SEAL - O Ring

1шт.

17

NSS

NOT SOLD SEPARAT

WASHER - Backup

1шт.

18

NSS

NOT SOLD SEPARAT

SEAL - O Ring

1шт.

19

H52852

PLATE ASSY.

PLATE - Port

1шт.

20

H61077

ORIFICE

- Swing Section

2шт.

21

H746859

PLATE ASSY.

ORIFICE - Boom Section - Upper

1шт.

22

H513630

SECTOR

BOOM AND DIPPER SECTION - Valve, Includes Ref. 23 - 39

2шт.

23

NSS

NOT SOLD SEPARAT

BODY - Valve Section

1шт.

24

NSS

NOT SOLD SEPARAT

SPOOL - Valve

1шт.

25

H210831

SCREW

SCREW - Spool

1шт.

26

H52886

BODY

CHECK - Lift

1шт.

27

H47514

SPRING

- Check

1шт.

28

H52894

PLUNGER

- Check

1шт.

29

H52902

CAP

WASHER - Deep

1шт.

30

F29118

SPRING - Spool Return

1шт.

31

H746164

WASHER

SPACER

1шт.

32

F59116

WASHER

- Shallow

1шт.

33

A27804

CIRCLIP,#50, .392" Dia, E-Type

Ring, Retaining, #50, .392" Dia, E-Type

1шт.

H52985

GASKET KIT

KIT - Seal Repair (Boom & Dipper Section), Includes Ref. 34 - 39

1шт.

34

NSS

NOT SOLD SEPARAT

SEAL - O Ring, Check

1шт.

35

NSS

NOT SOLD SEPARAT

WASHER - Backup, Check

1шт.

36

NSS

NOT SOLD SEPARAT

SEAL - O Ring, Relief Valve and Plug

2шт.

37

NSS

NOT SOLD SEPARAT

WASHER - Backup, Relief Valve and Plug

2шт.

38

NSS

NOT SOLD SEPARAT

SEAL - O Ring, Spool (Upper)

1шт.

39

NSS

NOT SOLD SEPARAT

SEAL - O Ring, Spool (Lower)

1шт.

40

H513648

VALVE

BUCKET STABILIZER SWING SECTION - Valve, Includes Ref. 41 - 55

4шт.

41

NSS

NOT SOLD SEPARAT

BODY - Valve Section

1шт.

42

NSS

NOT SOLD SEPARAT

SPOOL - Valve Section

1шт.

43

H210831

SCREW

END - Valve Spool

1шт.

44

H52886

BODY

CHECK - Lift

1шт.

45

H47514

SPRING

- Check

1шт.

46

H52894

PLUNGER

- Check

1шт.

47

H52902

CAP

WASHER - Deep

1шт.

48

F59118

SPRING

- Spool Return

1шт.

49

H746164

WASHER

SPACER - Spring

1шт.

50

F59116

WASHER

- Shallow

1шт.

51

A27804

CIRCLIP,#50, .392" Dia, E-Type

Ring, Retaining, #50, .392" Dia, E-Type

1шт.

H52977

GASKET KIT

KIT - Seal Repair (Bucket, Stabilizer and Swing Section), Includes Ref. 52 - 55

1шт.

52

NSS

NOT SOLD SEPARAT

SEAL - O RING, Check

1шт.

53

NSS

NOT SOLD SEPARAT

WASHER - Backup, Checl

1шт.

54

NSS

NOT SOLD SEPARAT

SEAL - O Ring, Spool (Upper)

1шт.

55

NSS

NOT SOLD SEPARAT

SEAL - O Ring, Spool (Lower)

1шт.

56

86512512

PLUG,7/8" - 14 ORB

Incl. Ref. 57 Hex Hd, 7/8"-14 ORB

1шт.

57

NSS

NOT SOLD SEPARAT

SEAL - O Ring

1шт.
