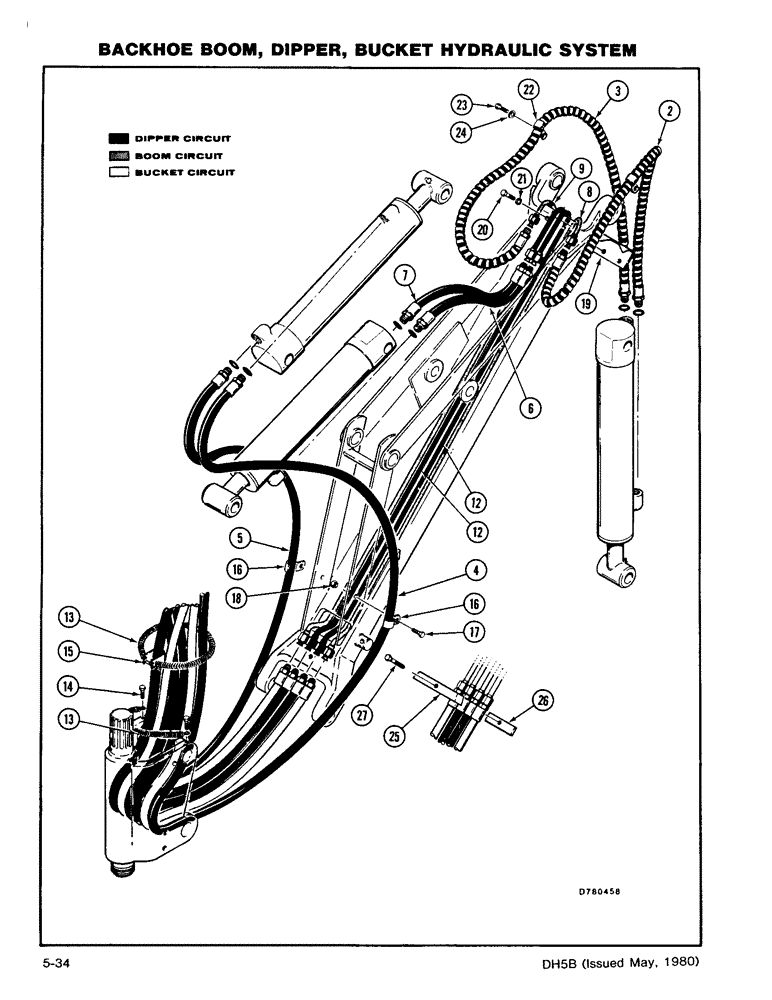

Запчасти Case DH5 (5-34) - BACKHOE BOOM, DIPPER, BUCKET HYDRAULIC SYSTEM (35) - HYDRAULIC SYSTEMS

2

H383976

HOSE,9.5mm ID x 1880mm L, SAE 100R1

D-100XR 9.50 mm ID x 1880.00 mm, SAE 100R1

1шт.

3

H383984

HOSE,9.50 mm ID x 1397.00 mm, SAE 100R1

9.50 mm ID x 1397.00 mm, SAE 100R, D-100XR

1шт.

4

H360412

HOSE,0.38" ID x 75.00", SAE 100R1

1шт.

5

H195826

HOSE,0.38" ID x 55.00", SAE 100R1

1шт.

6

H268540

HYDRAULIC HOSE,9.52 mm ID x 889.00 mm, SAE 100R1

(3/4 ORB x 3/4 JIC M) 9.52 mm ID x 889.00 mm, SAE 100R1

1шт.

7

H244921

HYDRAULIC HOSE,9.52 mm ID x 381.00 mm, SAE 100R1

9.52 mm ID x 381.00 mm, SAE 100R1

1шт.

8

H645416

TUBE ASSY.,0.5" OD

TUBE - Bucket Cylinder - D-100XR

1шт.

9

H645424

TUBE ASSY.,0.5" OD

TUBE - Bucket Cylinder - D-100XR

1шт.

12

H656611

TUBE - Boom Cylinder - D-100XR 12.7 mm OD

2шт.

Replaced by H421818.

1шт.

13

H52548

SPRING

Includes Ref. 14

2шт.

14

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

15

H52571

CLAMP

- Hose

1шт.

16

H51763

CLAMP

- Hose, Includes Ref. 17 and 18

2шт.

17

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

18

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

19

H51755

CLAMP

- Hose

1шт.

H61069

FLAP

CUSHION - Anti-Wear (Not Shown), Includes Ref. 20 and 21

1шт.

20

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

21

280736

NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

2шт.

22

H276758

CLAMP

- Hose

2шт.

23

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

24

280129

NUT,1/4"-20

NUT, LOCK, 1/4"-20, GC

2шт.

25

H52589

CLAMP

- Tube

1шт.

26

H51748

CLAMP

- Base, Includes Ref. 27

1шт.

27

131-121

SPRING NUT,Tinn, U, #10-24

BOLT - NC HH (5/16 x 2)

1шт.
