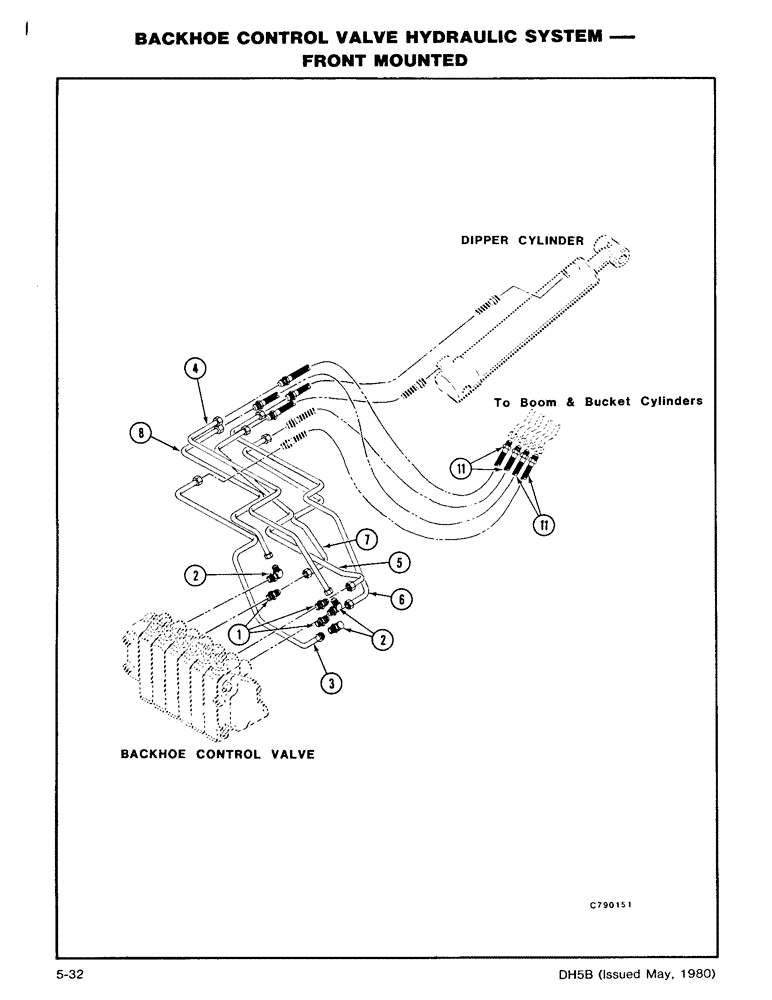

Запчасти Case DH5 (5-32) - BACKHOE CONTROL VALVE HYDRAULIC SYSTEM -, FRONT MOUNTED (35) - HYDRAULIC SYSTEMS

1

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - (3/4 ORB x 3/4 JIC M)

3шт.

2

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree (3/4 ORB x 3/4 JIC M)

3шт.

3

H646562

TUBE,12.7 mm OD

- Bucket Cylinder

1шт.

4

H646554

TUBE,12.7 mm OD

- Bucket Cylinder

1шт.

5

H646570

TUBE,12.7 mm OD

- Crowd Cylinder

1шт.

6

H646588

TUBE,12.7 mm OD

- Crowd Cylinder

1шт.

7

H646661

TUBE,12.7 mm OD

- Boom Cylinder

1шт.

8

646653

TUBE - Boom Cylinder

1шт.

11

H278994

HYDRAULIC HOSE,9.52 mm ID x 889.00 mm

(3/4 JIC M Ends) 9.52 mm ID x 889.00 mm

4шт.
