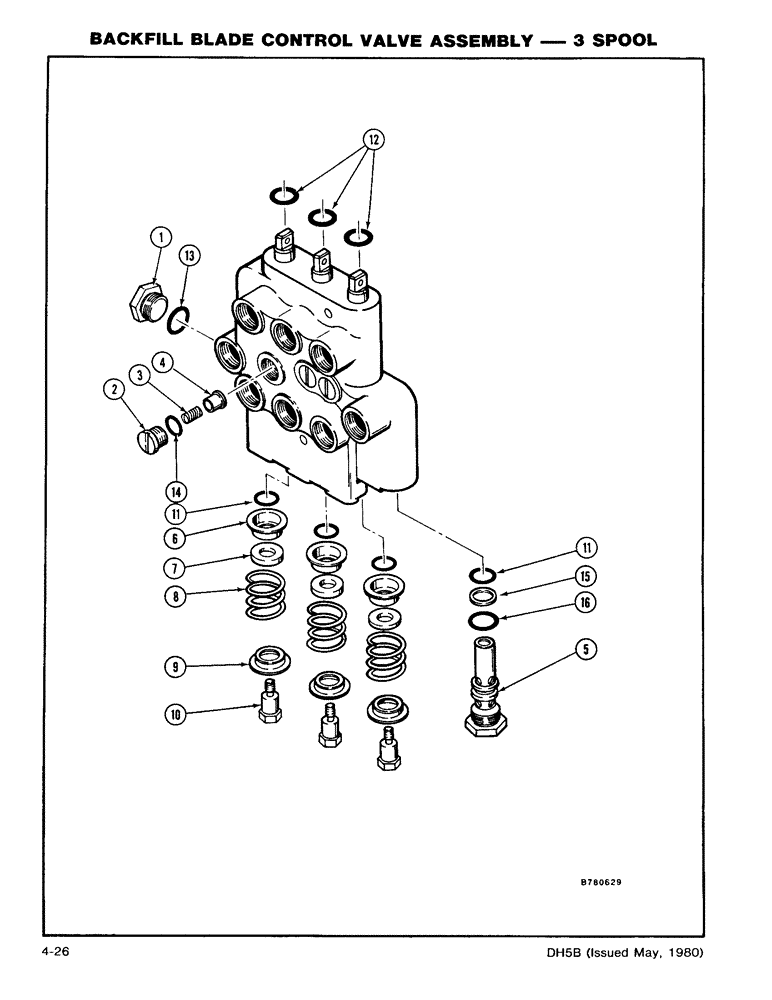

Запчасти Case DH5 (4-26) - BACKFILL BLADE CONTROL VALVE ASSEMBLY - 3 SPOOL (35) - HYDRAULIC SYSTEMS

H595041

VALVE

ASSEMBLY - Backfill Blade Control, Includes: Ref. 1 - 16

1шт.

1

86512512

PLUG,7/8" - 14 ORB

Assy Hex Hd, 7/8"-14 ORB

1шт.

2

H47506

PLUG

ASSEMBLY

3шт.

3

H47514

SPRING

3шт.

4

H52894

PLUNGER

3шт.

5

H102053

VALVE

RELIEF VALVE ASSEMBLY (2500 psi)

1шт.

6

H52902

CAP

WASHER - Deep

3шт.

7

H746164

WASHER

3шт.

8

H220517

SPRING

3шт.

9

F59116

WASHER

- Shallow

3шт.

10

H138248

SCREW,1/4" - 20 x 7/16"

- Spool KIT - Seal Repair, Includes: Ref. 11

1шт.

11

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

4шт.

12

F37887

O-RING

3шт.

13

A35104

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

1шт.

14

H756783

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

3шт.

15

G32626

RING

WASHER - Backup

1шт.

16

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

1шт.
