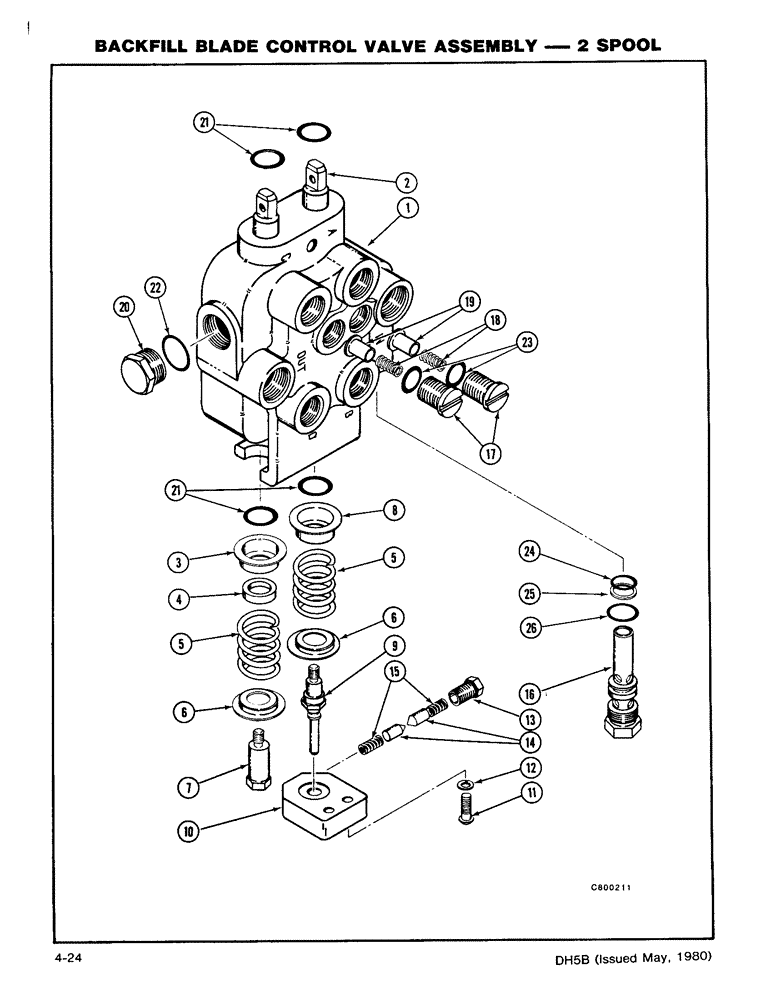

Запчасти Case DH5 (4-24) - BACKFILL BLADE CONTROL VALVE ASSEMBLY - 2 SPOOL (35) - HYDRAULIC SYSTEMS

H585489

LOCK VALVE

VALVE ASSEMBLY, Includes: Ref. 1 - 26

1шт.

1

NSS

NOT SOLD SEPARAT

BODY

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL

2шт.

3

H52902

CAP

WASHER - Deep

1шт.

4

H746164

WASHER

2шт.

5

H220517

SPRING

- Spool

2шт.

6

H31401

WASHER

- Shallow

2шт.

7

H138248

SCREW,1/4" - 20 x 7/16"

- Spool

1шт.

8

H138271

WASHER

- Deep

1шт.

9

H139071

SCREW,1/4" - 20

- Detent

1шт.

10

H125831

BLOCK

- Detent, Includes: Ref. 11 and 12

1шт.

11

NSS

NOT SOLD SEPARAT

SCREW

2шт.

12

NSS

NOT SOLD SEPARAT

WASHER - Lock

2шт.

13

H105015

PLUG

- Detent

1шт.

14

H104992

PAWL

- Detent

2шт.

15

H105049

SPRING

- Detent

2шт.

16

H102053

VALVE

RELIEF VALVE ASSEMBLY - 2000 psi (Includes O-Rings)

1шт.

17

H47506

PLUG

- (Includes O-Ring)

2шт.

18

H47514

SPRING

- Lift Check

2шт.

19

H52894

PLUNGER

- Lift Check

2шт.

20

H94219

PLUG

- Power Beyond (Includes O-Ring)

1шт.

H147348

KIT

- Seal Repair, Includes: Ref. 21 - 26

1шт.

21

NSS

NOT SOLD SEPARAT

O-Ring - Spool Seal

4шт.

22

NSS

NOT SOLD SEPARAT

O-Ring - Pressure Beyond Plug

1шт.

23

NSS

NOT SOLD SEPARAT

O-Ring - Lift Check Plug

2шт.

24

NSS

NOT SOLD SEPARAT

O-Ring - Small - Relief Valve

1шт.

25

NSS

NOT SOLD SEPARAT

WASHER - Backup - Relief Valve

1шт.

26

NSS

NOT SOLD SEPARAT

O-Ring - Large - Relief Valve

1шт.
