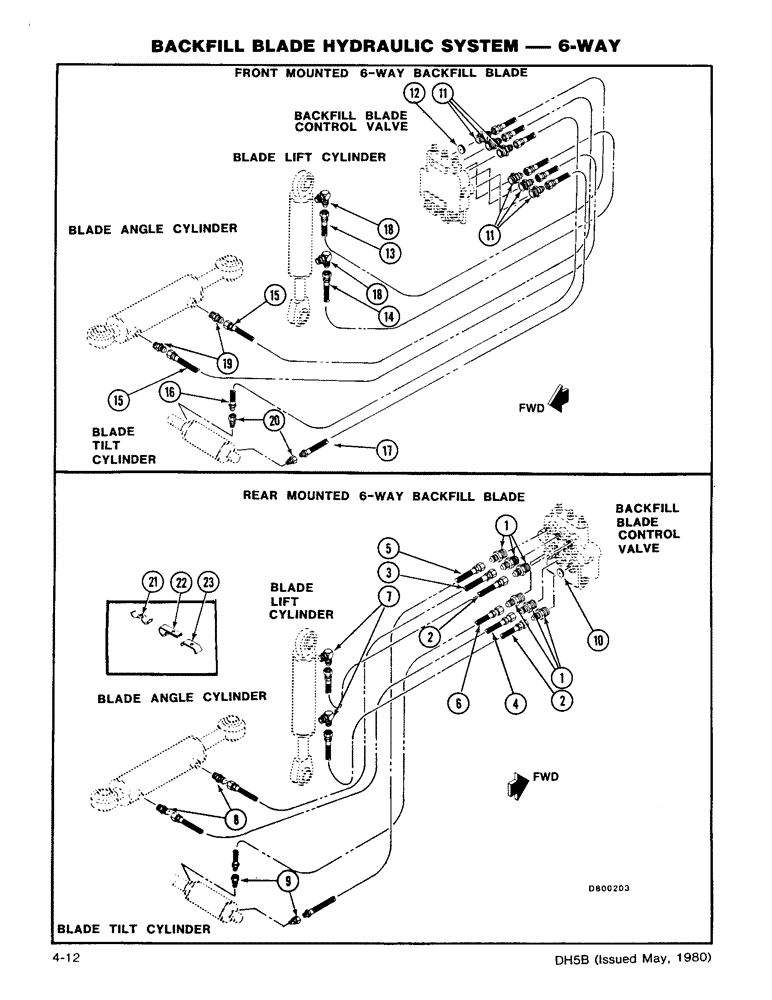

Запчасти Case DH5 (4-12) - BACKFILL BLADE HYDRAULIC SYSTEM - 6-WAY (35) - HYDRAULIC SYSTEMS

1

218-5354

HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring

FITTING, 9/16"-18, 37° x 7/8"-14, O-Ring

6шт.

2

H185736

HYDRAULIC HOSE,6.35 mm ID x 1066.80 mm, SAE 100R1

6.35 mm ID x 1066.80 mm, SAE 100R1

2шт.

3

H246330

HYDRAULIC HOSE,6.35 mm ID x 1905.00 mm, SAE 100R1

6.35 mm ID x 1905.00 mm, SAE 100R1

1шт.

4

H249615

HYDRAULIC HOSE,6.35 mm ID x 1574.80 mm, SAE 100R1

6.35 mm ID x 1574.80 mm, SAE 100R1

1шт.

5

H257287

HOSE

- 1/4 x 62 (1/4 MP x 9/16 JIC Fe Sw)

1шт.

6

H390765

HOSE ASSY.

HOSE - 1/4 x 74.8 (1/4 MP x 9/16 JIC Fe Sw)

1шт.

7

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree (9/16 ORB x 9/16 JIC M)

2шт.

8

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR - (9/16 ORB x 9/16 JIC M)

2шт.

9

218-909

HYD CONNECTOR,1/8" NPT x 1/4" NPSM Fem

CONNECTOR - (1/8 MP x 1/4 NPS P)

2шт.

10

H206235

SCREW

PLATE - Orifice (.136) B Port

1шт.

Ref.10, Replaced by H270603.

1шт.

11

218-5354

HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring

FITTING, 9/16"-18, 37° x 7/8"-14, O-Ring

6шт.

12

H206235

SCREW

PLATE - Orifice (.136)

1шт.

13

H379982

HOSE,0.25" ID x 122.05", SAE 100R1A

1шт.

14

H373647

HOSE

- 1/4 x 3300 mm (9/16 JIC Fe Sw Ends)

1шт.

15

H379990

HOSE,0.25" ID x 147.64", SAE 100R1A

2шт.

16

H257287

HOSE

- 1/4 x 62 (1/4 MP x 9/16 JIC Fe Sw)

1шт.

17

H390765

HOSE ASSY.

HOSE - 1/4 x 74.8 (1/4 MP x 9/16 JIC Fe Sw)

1шт.

18

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree (9/16 ORB x 9/16 JIC M)

2шт.

19

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR - (9/16 ORB x 9/16 JIC M)

2шт.

20

218-909

HYD CONNECTOR,1/8" NPT x 1/4" NPSM Fem

CONNECTOR - (1/8 MP x 1/4 NPS P)

2шт.

21

H59345

CLAMP

- Hose

1шт.

22

H242818

CLAMP

- Hose

1шт.

23

H45468

CLAMP

- Hose

1шт.
