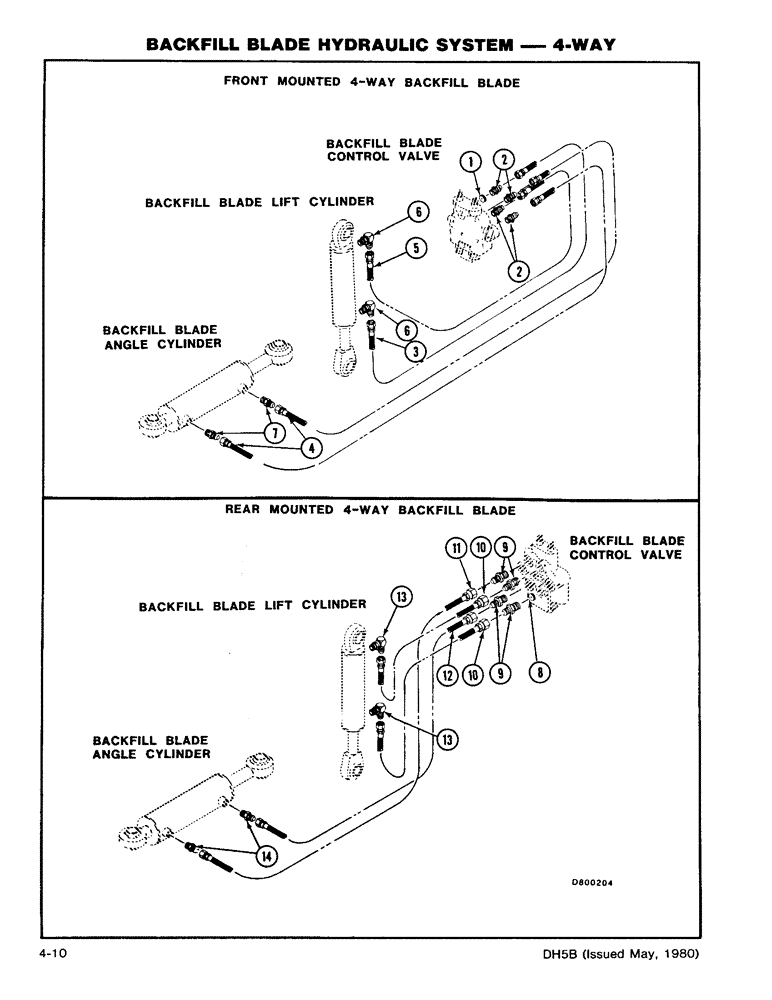

Запчасти Case DH5 (4-10) - BACKFILL BLADE HYDRAULIC SYSTEM - 4-WAY (35) - HYDRAULIC SYSTEMS

1

H206235

SCREW

PLATE - Orifice (.136)

1шт.

2

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

CONNECTOR - (3/4 ORB x 9/16 JIC M)

4шт.

3

H379982

HOSE,0.25" ID x 122.05", SAE 100R1A

1шт.

4

H379990

HOSE,0.25" ID x 147.64", SAE 100R1A

2шт.

5

H373647

HOSE

_ 1/4 x 3300 mm (9/16 JIC Fe Sw ends)

1шт.

6

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree (9/16 ORB x 9/16 JIC M)

2шт.

7

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR - (9/16 ORB x 9/16 JIC M)

2шт.

8

H206235

SCREW

PLATE - Orifice (.136)

1шт.

9

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

CONNECTOR - (3/4 ORB x 9/16 JIC M)

4шт.

10

H185736

HYDRAULIC HOSE,6.35 mm ID x 1066.80 mm, SAE 100R1

6.35 mm ID x 1066.80 mm, SAE 100R1

2шт.

11

H249615

HYDRAULIC HOSE,6.35 mm ID x 1574.80 mm, SAE 100R1

6.35 mm ID x 1574.80 mm, SAE 100R1

1шт.

12

H246330

HYDRAULIC HOSE,6.35 mm ID x 1905.00 mm, SAE 100R1

6.35 mm ID x 1905.00 mm, SAE 100R1

1шт.

13

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree (9/16 ORB x 9/16 JIC M)

2шт.

14

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR - (9/16 ORB x 9/16 JIC M)

2шт.
