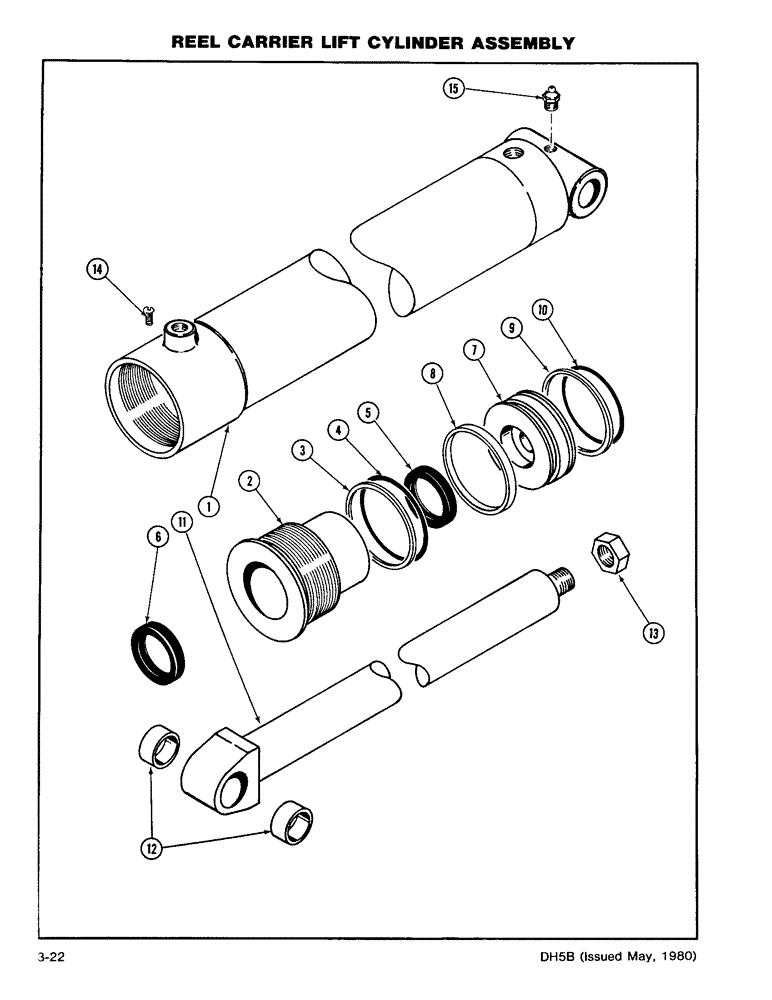

Запчасти Case DH5 (3-22) - REEL CARRIER LIFT CYLINDER ASSEMBLY (35) - HYDRAULIC SYSTEMS

G34251

CYLINDER

ASSEMBLY - Reel Carrier Lift, Includes: Ref. 1 - 15

2шт.

1

G32061

HYD TUBE,13.57" L

BARREL

1шт.

2

G35218

GLAND

ASSEMBLY, Includes: Ref. 3 - 6

1шт.

3

NSS

NOT SOLD SEPARAT

WASHER - Backup

1шт.

Included in G32269 Seal Repair Kit

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING

2шт.

Included in G32269 Seal Repair Kit

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL - Rod

1шт.

Included in G32269 Seal Repair Kit

1шт.

6

D27706

WIPER SEAL

WIPER - Rod

1шт.

7

G35263

PISTON

ASSEMBLY, Includes: Ref. 8 - 10

1шт.

8

NSS

NOT SOLD SEPARAT

RING - Wear

1шт.

Included in G32269 Seal Repair Kit

1шт.

9

NSS

NOT SOLD SEPARAT

WASHER - Backup

1шт.

Included in G32269 Seal Repair Kit

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Included in G32269 Seal Repair Kit

1шт.

11

G34252

ROD - Piston, Includes: Ref. 12

1шт.

12

G32050

BUSHING,25.63mm ID x 31.85mm OD x 15.75mm L

- Rod

2шт.

13

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

NUT - Piston

1шт.

14

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - Gland Retainer

1шт.

15

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - Grease

1шт.
