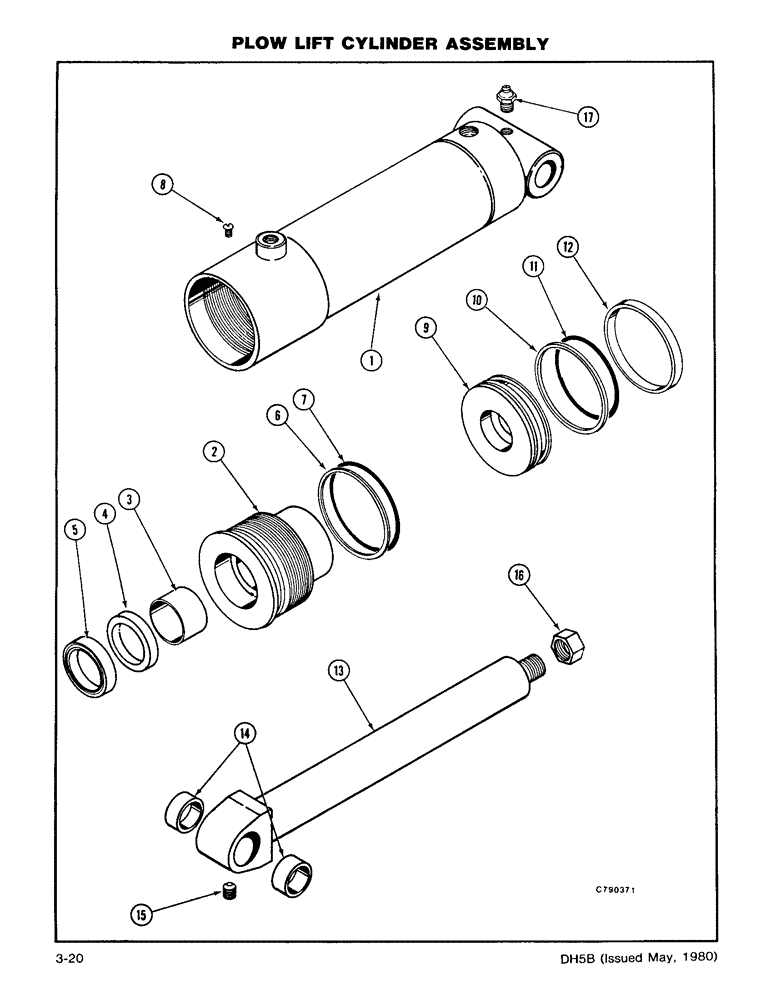

Запчасти Case DH5 (3-20) - PLOW LIFT CYLINDER ASSEMBLY (35) - HYDRAULIC SYSTEMS

G33751

CYLINDER,Double Acting, 38.1mm Rod, 177.8mm Stroke

ASSEMBLY - Plow Lift, Includes: Ref. 1 - 17

2шт.

1

G32061

HYD TUBE,13.57" L

BARREL

1шт.

G104222

GLAND

ASSEMBLY replaces G35201, Includes: Ref. 2 - 7

1шт.

2

NSS

NOT SOLD SEPARAT

GLAND

1шт.

3

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

SPACER

1шт.

4

NSS

NOT SOLD SEPARAT

STEEL RING

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL

1шт.

Included in G34656 Seal Repair Kit

1шт.

6

NSS

NOT SOLD SEPARAT

WASHER - Backup

1шт.

Included in G34656 Seal Repair Kit

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Included in G34656 Seal Repair Kit

1шт.

8

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW

1шт.

G35263

PISTON

ASSEMBLY

1шт.

9

NSS

NOT SOLD SEPARAT

PISTON

1шт.

10

NSS

NOT SOLD SEPARAT

WASHER - Backup

1шт.

Included in G34656 Seal Repair Kit

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Included in G34656 Seal Repair Kit

1шт.

12

NSS

NOT SOLD SEPARAT

RING - Wear

1шт.

Included in G34656 Seal Repair Kit

1шт.

G33749

ROD

PISTON ROD ASSEMBLY

1шт.

13

NSS

NOT SOLD SEPARAT

PISTON ROD

1шт.

14

NSS

NOT SOLD SEPARAT

BUSHING

2шт.

15

221-849

PLUG,Hex Soc, 1/8"-27

SCREW - Set

1шт.

16

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

NUT - Piston

1шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - Grease

1шт.
