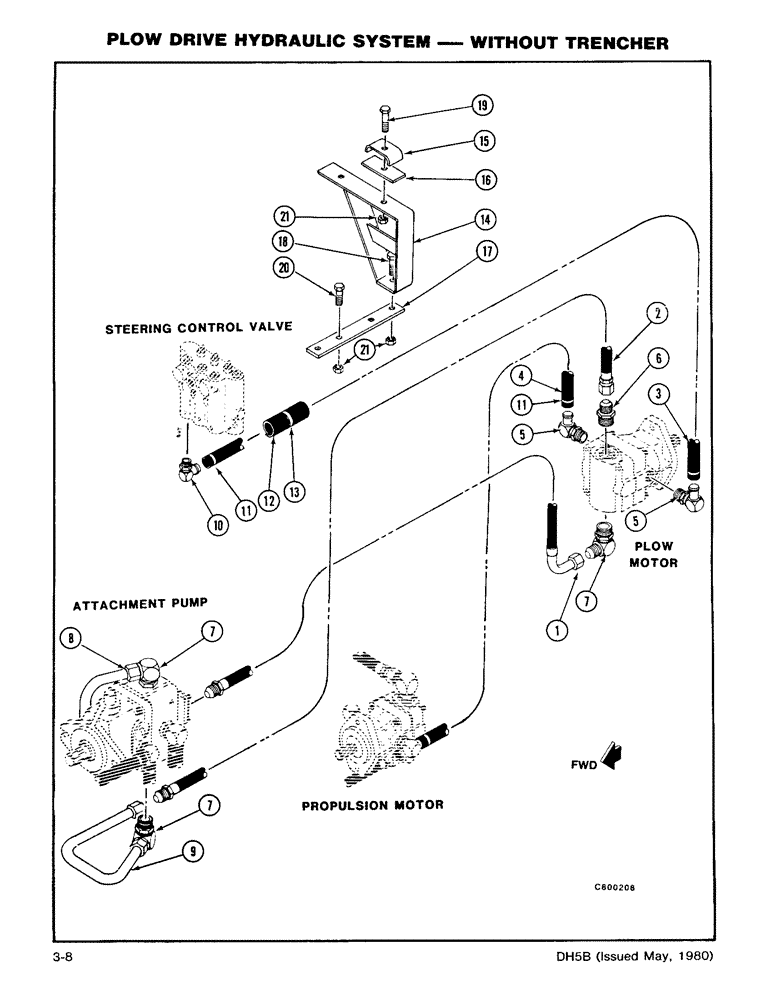

Запчасти Case DH5 (3-08) - PLOW DRIVE HYDRAULIC SYSTEM - WITHOUT TRENCHER (35) - HYDRAULIC SYSTEMS

1

H337931

HOSE ASSY.

HOSE - 3/4 x 130 (1 1/16 JIC M x 90 degree 3/4 Bent Tube)

1шт.

2

H337923

HOSE ASSY.

HOSE - 3/4 x 120 (1 1/16 JIC M x 1 1/16 JIC Fe Sw)

1шт.

3

H341362

HOSE

- 3/4 x 80

1шт.

4

H353516

HOSE

- 3/4 x 96

1шт.

5

217-351

FITTING,90 Degree Elbow, 3/4" Hose Barb x 1-1/16" - 12 Male ORB

ELBOW - 90 degree (1 1/16 ORB x 3/4 Hose)

2шт.

6

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR - (1 5/16 ORB x 1 1/16 JIC M)

1шт.

7

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 90 degree (1 5/16 ORB x 1 1/16 JIC M)

3шт.

8

H626218

TUBE,0.75" OD

1шт.

9

H626333

TUBE,0.75" OD

1шт.

10

217-364

FITTING,90 Degree Elbow, 3/4" Hose Barb x 3/4" - 16 Male ORB

ELBOW - 90 degree (3/4 ORB x 3/4 Hose)

1шт.

11

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - Hose 12)

4шт.

12

H355198

COVER

- Hose

1шт.

13

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - Hose (#20)

1шт.

14

H629295

BRACKET

- Hose

1шт.

15

H231878

CLAMP

- Hose

2шт.

16

H231860

COVER

PAD - Clamp

2шт.

17

H388553

PLATE

- Hose Bracket

1шт.

18

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

19

113-441

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

Hex, 1/2"-13 x 2 1/4", G5

2шт.

20

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

21

131-1182

LOCK NUT,1/2"-13, GA

NUT - Hex (1/2 NC - Lock)

5шт.
