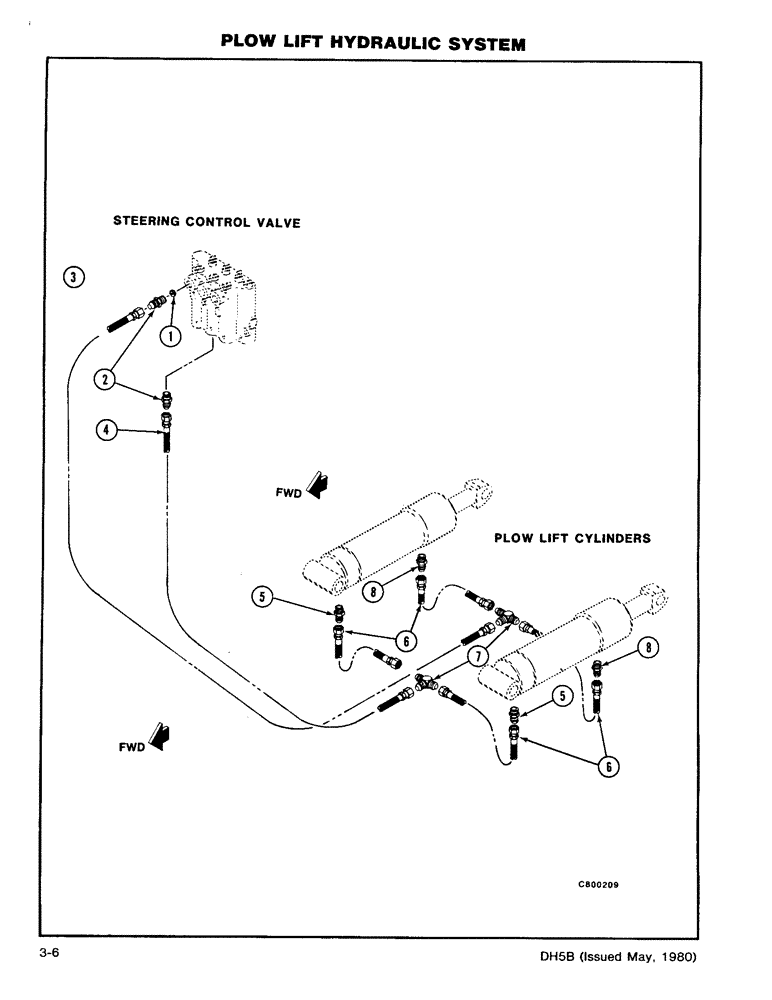

Запчасти Case DH5 (3-06) - PLOW LIFT HYDRAULIC SYSTEM (35) - HYDRAULIC SYSTEMS

1

H746875

SCREW

PLATE - Orifice

1шт.

2

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR - (9/16 ORB x 9/16 JIC M)

2шт.

3

H218453

HYDRAULIC HOSE,6.35 mm ID x 838.20 mm, SAE 100R1

6.35 mm ID x 838.20 mm, SAE 100R1

1шт.

4

H185736

HYDRAULIC HOSE,6.35 mm ID x 1066.80 mm, SAE 100R1

6.35 mm ID x 1066.80 mm, SAE 100R1

1шт.

5

218-1024

HYD CONNECTOR,9/16"-18, 37 Degree x 3/8"-18, NPTF

CONNECTOR, HYD., 9/16"-18, 37° x 3/8"-18, NPTF

2шт.

6

H234245

HYDRAULIC HOSE,6.35 mm ID x 406.40 mm, SAE 100R1

6.35 mm ID x 406.40 mm, SAE 100R1

4шт.

7

218-593

TEE,9/16"-18, 37 Degree

- (9/16 JIC M x 9/16 JIC M x 9/16 JIC M)

2шт.

8

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

CONNECTOR - (9/16 JIC M x 1/4 MP)

2шт.
