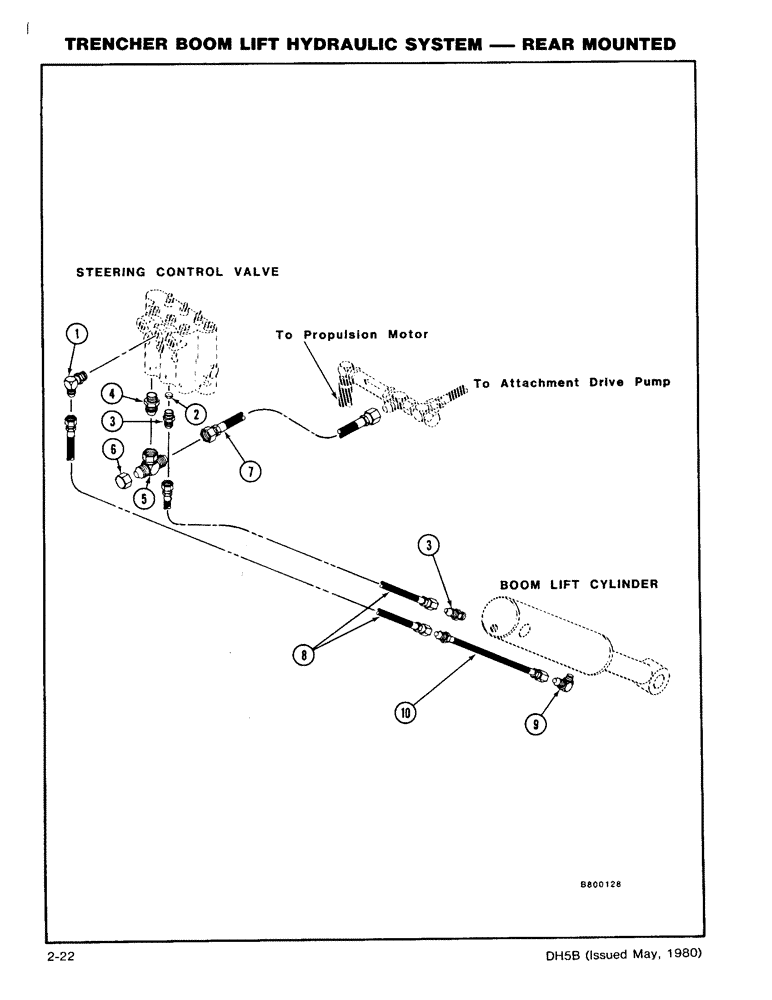

Запчасти Case DH5 (2-22) - TRENCHER BOOM LIFT HYDRAULIC SYSTEM - REAR MOUNTED (35) - HYDRAULIC SYSTEMS

1

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree (9/16 ORB x 9/16 JIC M)

1шт.

2

H165654

ORIFICE

PLATE - Orifice (.055)

1шт.

3

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR - Straight (9/16 ORB x 9/16 JIC M)

2шт.

4

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., 7/8"-14, 37º x 3/4"-16, O-Ring

1шт.

5

218-842

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Br

- (7/8 JIC M x 7/8 JIC M x 7/8 JIC Fe Swv)

1шт.

6

218756

SPARE PART

CAP - Tee

1шт.

7

H171009

HYDRAULIC HOSE,7.62 mm ID x 838.00 mm, SAE 100R1

7.62 mm ID x 838.00 mm, SAE 100R1

1шт.

8

H185736

HYDRAULIC HOSE,6.35 mm ID x 1066.80 mm, SAE 100R1

6.35 mm ID x 1066.80 mm, SAE 100R1

2шт.

9

218-1053

ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/8"-18, NPTF

- 90 degree (3/8 MP x 9/16 JIC M)

1шт.

10

H165282

HYDRAULIC HOSE,6.35 mm ID x 533.40 mm, SAE 100R1

6.35 mm ID x 533.40 mm, SAE 100R

1шт.
