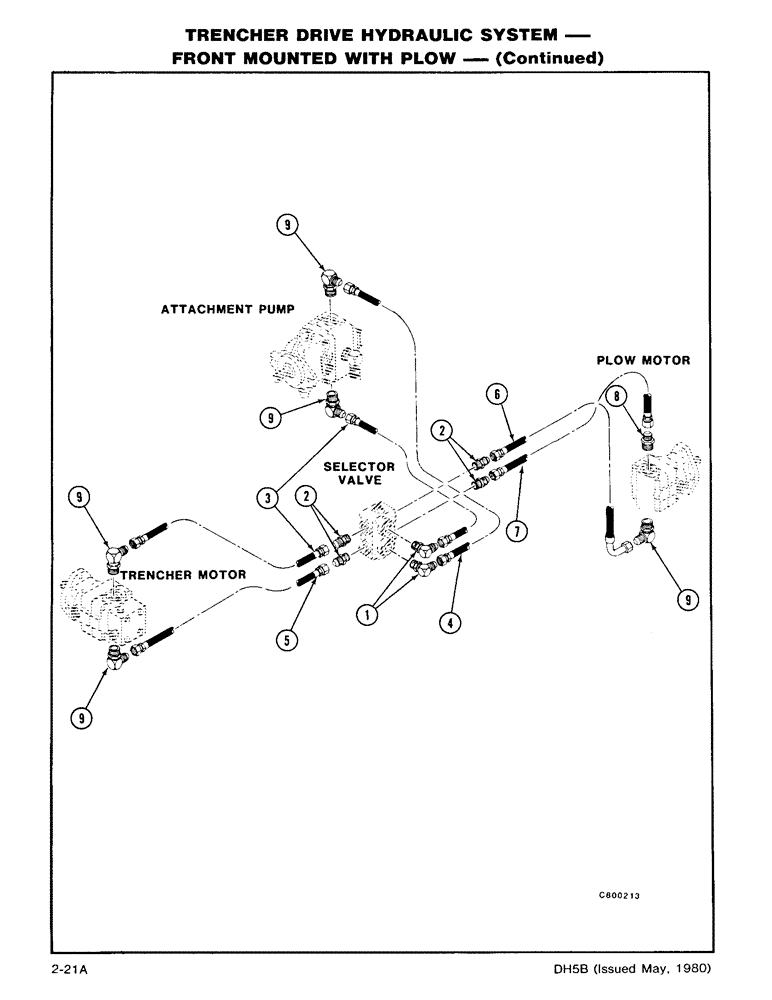

Запчасти Case DH5 (2-21A) - TRENCHER DRIVE HYDRAULIC SYSTEM - FRONT MOUNTED WITH PLOW - (CONTINUED) (35) - HYDRAULIC SYSTEMS

1

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º (1 1/16 ORB x 1 1/16 JIC M)

2шт.

2

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - (1 1/16 ORB x 1 1/16 JIC M)

4шт.

3

H388207

HOSE ASSY.

HOSE - 3/4 x 560 mm (1 1/16 JIC Fe Sw Ends)

2шт.

4

H336974

HOSE,0.75" ID x 30.00", SAE 100R9

1шт.

5

H388215

HOSE ASSY.

HOSE - 3/4 x 610 mm (1 1/16 JIC Fe Sw Ends)

1шт.

6

H373621

HOSE

& TUBE - 3/4 x 300 mm (1 1/16 JIC Fe Sw Ends)

1шт.

7

H373613

HOSE

- 3/4 x 3650 mm (1 1/16 JIC Fe Sw Ends)

1шт.

8

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR - (1 5/16 ORB x 1 1/16 JIC M)

1шт.

9

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 90 degree (1 5/16 ORB x 1 1/16 JIC M)

5шт.
