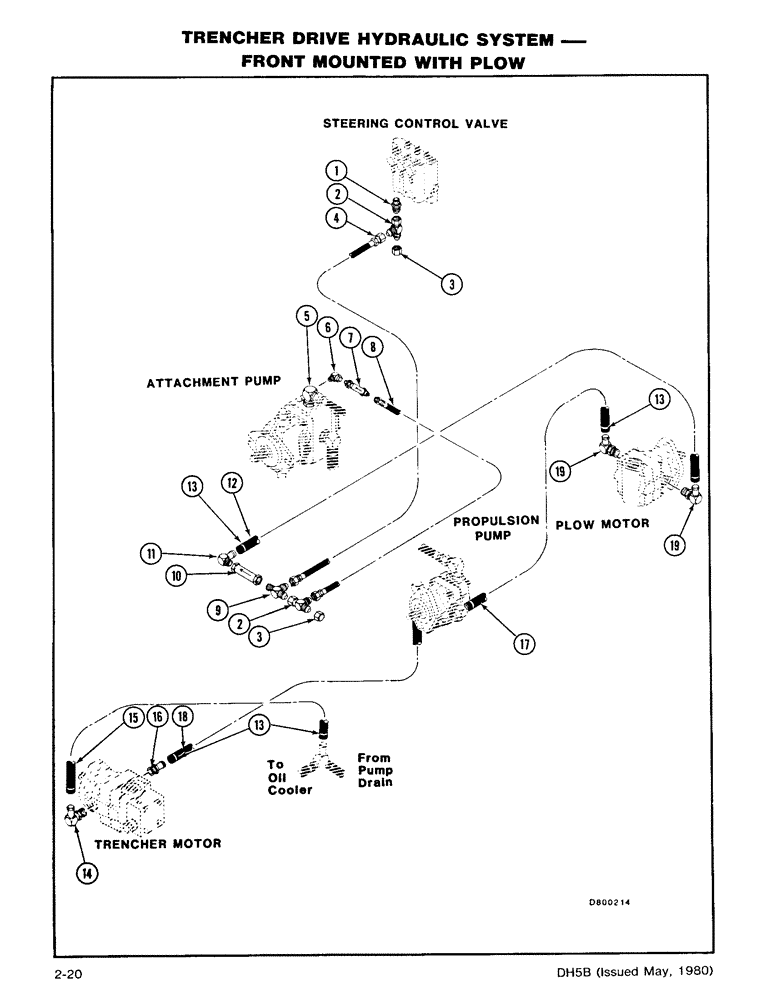

Запчасти Case DH5 (2-20) - TRENCHER DRIVE HYDRAULIC SYSTEM -, FRONT MOUNTED WITH PLOW (35) - HYDRAULIC SYSTEMS

1

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., 7/8"-14, 37º x 3/4"-16, O-Ring

1шт.

2

218-842

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Br

- (7/8 JIC M x 7/8 JIC M x 7/8 JIC Fe Swv)

2шт.

3

218-756

CAP,37 Degree, 7/8"-14

(7/8 JIC) 37º, 7/8"-14

2шт.

4

H171009

HYDRAULIC HOSE,7.62 mm ID x 838.00 mm, SAE 100R1

7.62 mm ID x 838.00 mm, SAE 100R1

1шт.

5

H364489

ELBOW

- 90 degree Special

1шт.

6

218-935

45 ELBOW,45 Degree, 3/8" NPTF Male x 3/8" NPSM Fem Sw

- 45 degree (3/8 MP x 3/8 FP)

1шт.

7

H643528

VALVE, CHECK

VALVE - Check (6 psi)

1шт.

8

H394932

HOSE

- 1/2 x 2250 mm (3/4 JIC Fe Sw Ends)

1шт.

9

218-1128

TEE,7/8"-14, 37 Degree x 3/4"-14, NPTF Run

- (7/8 JIC M x 3/8 MP x 7/8 JIC M)

1шт.

10

H637132

VALVE

- Check (180 psi)

1шт.

11

217-135

ELBOW,90 Degree Elbow, 3/4" Hose Barb x 3/4" Male NPTF

- 90 degree (3/4 MP x 3/4 Hose)

1шт.

12

H317347

HOSE

- 3/4 x 46

1шт.

13

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - Hose

8шт.

14

217-351

FITTING,90 Degree Elbow, 3/4" Hose Barb x 1-1/16" - 12 Male ORB

ELBOW - 90 degree (1 1/16 ORB x 3/4 Hose)

1шт.

15

H307769

HOSE ASSY.

HOSE - 3/4 x 42

1шт.

16

217-177

FITTING,3/4" Hose Barb x 1-1/16" - 12 Male ORB

CONNECTOR - (1 1/16 ORB x 3/4 Hose)

1шт.

17

H353516

HOSE

- 3/4 x 96

1шт.

18

H341362

HOSE

- 3/4 x 80

1шт.

19

217-351

FITTING,90 Degree Elbow, 3/4" Hose Barb x 1-1/16" - 12 Male ORB

ELBOW - 90 degree (1 1/16 ORB x 3/4 Hose)

2шт.
