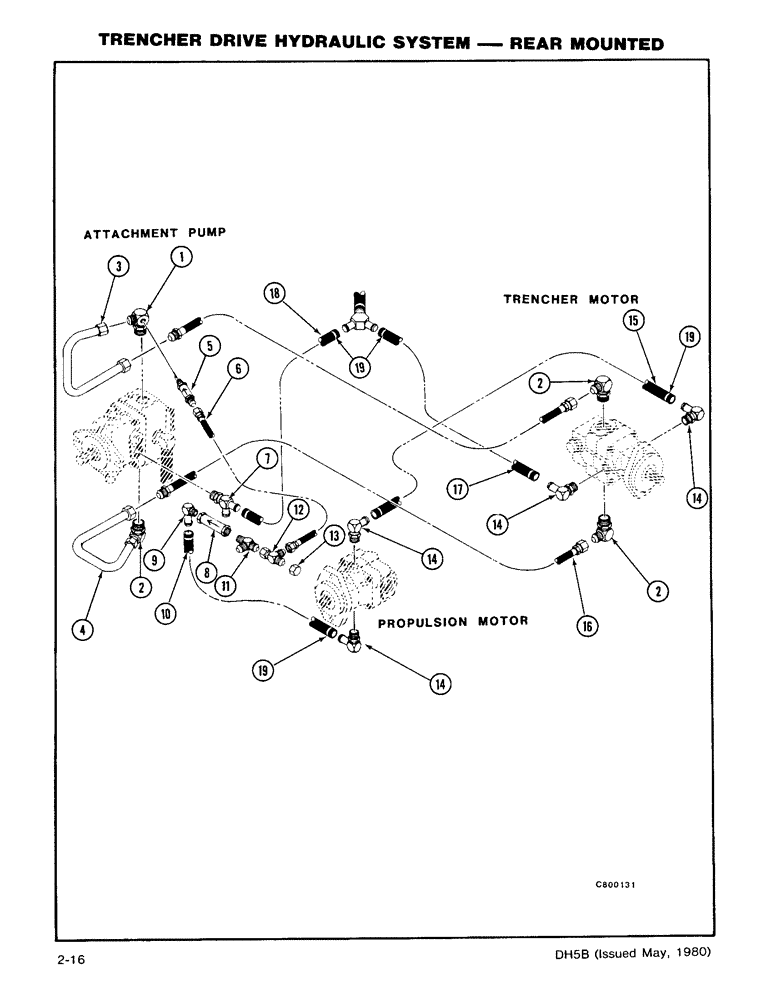

Запчасти Case DH5 (2-16) - TRENCHER DRIVE HYDRAULIC SYSTEM - REAR MOUNTED (35) - HYDRAULIC SYSTEMS

1

H364489

ELBOW

- 90 degree (Special)

1шт.

2

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 90 degree (1 5/16 ORB x 1 1/16 JIC M)

3шт.

3

H626200

TEE,0.75" OD

TUBE

1шт.

4

H626333

TUBE,0.75" OD

1шт.

5

H643528

VALVE, CHECK

VALVE - Check (6psi)

1шт.

6

H394932

HOSE

- 1/2 x 2250 mm (7/8 JIC Fe Swv x 3/4 JIC Fe Swv)

1шт.

7

H339762

TEE

- (1 1/16 ORB x 3/4 Barb x 3/4 Barb)

1шт.

8

H637132

VALVE

- Check (180 psi)

1шт.

9

217-135

ELBOW,90 Degree Elbow, 3/4" Hose Barb x 3/4" Male NPTF

- 90 degree (3/4 MP x 3/4 Barb)

1шт.

10

H317347

HOSE

- 3/4 x 46

1шт.

11

218-1128

TEE,7/8"-14, 37 Degree x 3/4"-14, NPTF Run

- (3/4 MP x 7/8 JIC M x 7/8 JIC M)

1шт.

12

218-842

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Br

- (7/8 JIC M x 7/8 JIC M x 7/8 JIC Fe Swv)

1шт.

13

218-756

CAP,37 Degree, 7/8"-14

Tee 37º, 7/8"-14

1шт.

14

217-351

FITTING,90 Degree Elbow, 3/4" Hose Barb x 1-1/16" - 12 Male ORB

ELBOW - 90 degree (1 1/16 ORB x 3/4 Barb)

4шт.

15

H307769

HOSE ASSY.

HOSE - 3/4 x 42

1шт.

16

720-14203

HOSE

- 3/4 x 1600 mm (1 1/16 JIC M x 1 1/16 JIC Fe Swv)

2шт.

17

H353516

HOSE

- 3/4 x 96

1шт.

18

H119495

HYDRAULIC HOSE,0.75" ID x 27.00", SAE 30R2 Type 2

0.75" ID x 27.00", SAE 30R2 Type 2

1шт.

19

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - Hose

8шт.
