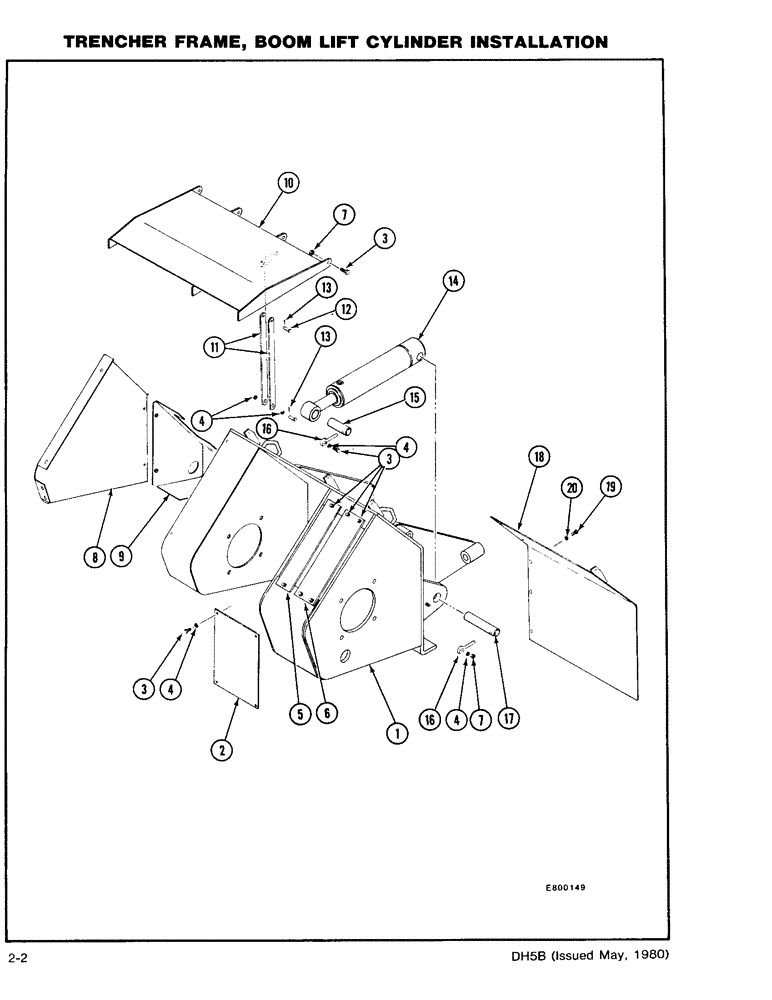

Запчасти Case DH5 (2-02) - TRENCHER FRAME, BOOM LIFT CYLINDER INSTALLATION (35) - HYDRAULIC SYSTEMS

1

H652404

SPARE PART

TRENCHER FRAME ASSEMBLY

1шт.

2

H379941

PLATE

- Cover

1шт.

3

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

15шт.

4

195-512

WASHER,#10

- Flat (5/16)

14шт.

5

H374686

FLAP

- Dirt

1шт.

6

H374678

FLAP

- Dirt

1шт.

7

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - Hex (5/16 NC - Lock)

11шт.

8

H397497

SHIELD

GUARD - Chain

1шт.

9

H643619

GUARD

- Chain

1шт.

10

H641282

SHIELD

- Dirt

1шт.

11

H374256

STRAP

- Shield

2шт.

12

H44289

CLEVIS COUPLING

PIN - Clevis (5/16 x 1 1/8)

2шт.

13

132-334

COTTER PIN,1/8" x 3/4"

PIN, SPLIT (COTTER), 1/8" x 3/4"

2шт.

14

H530519

CYLINDER BLOCK

BOOM LIFT CYLINDER ASSEMBLY (See Figure)

1шт.

15

H138297

PIN

- Rod End

1шт.

16

H313981

PIN

- Retainer

2шт.

17

H303396

AXLE PIN

PIN - Head End

1шт.

18

H644963

SHIELD

- Dirt (Used on Offset Trencher Only)

1шт.

19

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

5шт.

20

195-525

WASHER,3/8", SAE

- Flat (3/8)

5шт.
