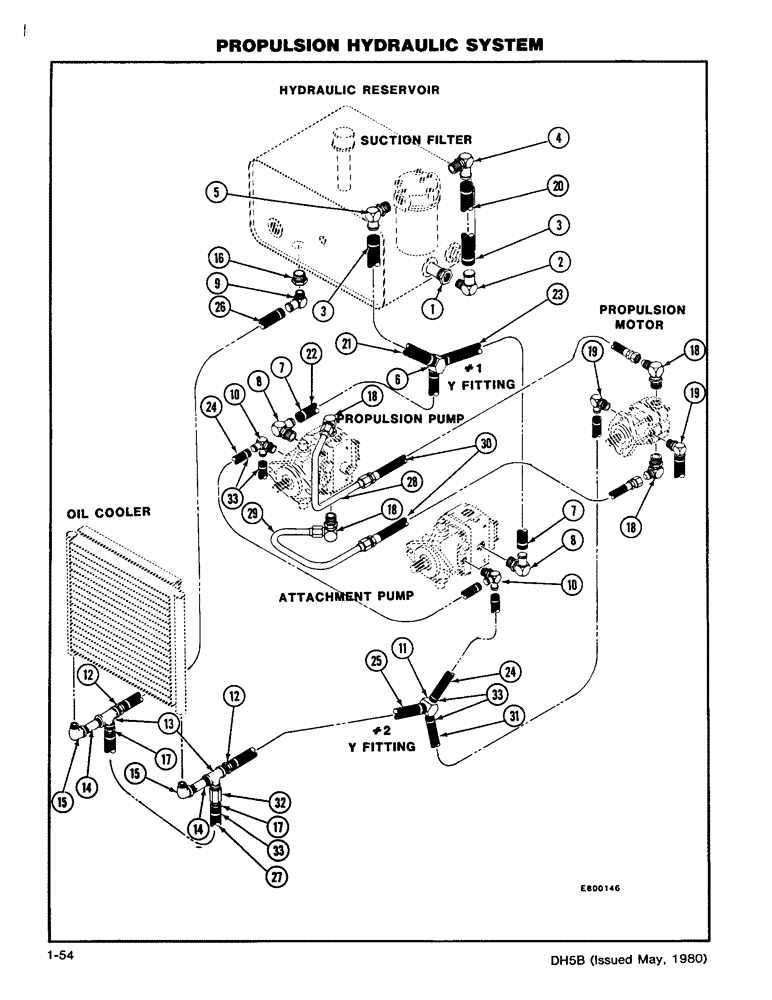

Запчасти Case DH5 (1-54) - PROPULSION HYDRAULIC SYSTEM (35) - HYDRAULIC SYSTEMS

1

H151399

FILTER STRAINER

SCREEN - Suction

1шт.

2

217-166

STEM,90 Degree Elbow, 1-1/4" Hose Barb x 1" Male NPTF

- 90 degree (1 MP x 1 1/4 Hose)

1шт.

3

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

4шт.

4

217-358

FITTING,90 Degree Elbow, 1-1/4" Hose Barb x 1-5/16" - 12 Male ORB

ELBOW - 90 degree (1 5/16 ORB x 1 1/4 Hose)

1шт.

5

H346908

ELBOW UNION

ELBOW - Special

1шт.

6

H339739

FITTING

#1 Y FITTING (1 1/4 x 1 x 1 Hose)

1шт.

7

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - Hose (#20)

1шт.

8

217-352

FITTING,90 Degree Elbow, 1" Hose Barb x 1-5/16" - 12 Male ORB

ELBOW - 90 degree (1 5/16 ORB x 1 Hose)

2шт.

9

217-136

ELBOW,90 Degree Elbow, 1" Hose Barb x 1" Male NPTF

- 90 degree (1 MP x 1 Hose)

1шт.

10

H339762

TEE

(1 1/6 ORB x 1 Hose x 1 Hose)

2шт.

11

H339747

FITTING

#2 Y FITTING (1 Hose x 3/4 Hose x 3/4 Hose)

1шт.

12

217-156

FITTING,1" Hose Barb x 1" Male NPTF

CONNECTOR (1 MP x 1 Hose)

2шт.

13

221-457

TEE,Pipe, 1" NPT x 3/4" NPT Br

- Pipe (1 x 1 x 3/4)

2шт.

14

221-243

PIPE,Nipple, 1" NPT x 4"

NIPPLE - Pipe (1 x 4)

2шт.

15

221-416

ELBOW,90 Degree, 1"-11 1/2, NPT

- 90 degree Strut (1")

2шт.

16

221-609

REDUCER,Hex, 1 1/4" x 1" NPT

BUSHING - Pipe (1 1/4 MP to 1 FP)

1шт.

17

217-375

FITTING,1" Hose Barb x 3/4" Male NPTF

CONNECTOR (3/4 MP x 1 Hose)

2шт.

18

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 90 degree (1 5/16 ORB x 1 1/16 JIC M)

4шт.

19

217-351

FITTING,90 Degree Elbow, 3/4" Hose Barb x 1-1/16" - 12 Male ORB

ELBOW - 90 degree (1 1/16 ORB x 3/4 Hose)

2шт.

20

H347823

HOSE

(1 1/4 x 8)

1шт.

21

H347831

HOSE

(1 1/4 x 23)

1шт.

22

H347849

HOSE

(1 x 30)

1шт.

23

H337907

HOSE ASSY.

HOSE (1 x 10)

1шт.

24

H119495

HYDRAULIC HOSE,0.75" ID x 27.00", SAE 30R2 Type 2

0.75" ID x 27.00", SAE 30R2 Type 2

1шт.

25

H309096

HOSE

(1 x 17)

1шт.

26

H118026

HOSE ASSY.

HOSE (1 x 28)

1шт.

27

H169417

HOSE ASSY.

HOSE (1 x 24)

1шт.

28

H626200

TEE,0.75" OD

TUBE

1шт.

29

H626333

TUBE,0.75" OD

1шт.

30

H276915

HOSE - 3/4 x 42 (1 1/16 JIC Fe Sw ends)

2шт.

31

H307769

HOSE ASSY.

HOSE (3/4 x 42)

1шт.

32

H627513

VALVE

- Bypass

1шт.

33

217-254

CLAMP - Hose (#12)

9шт.
