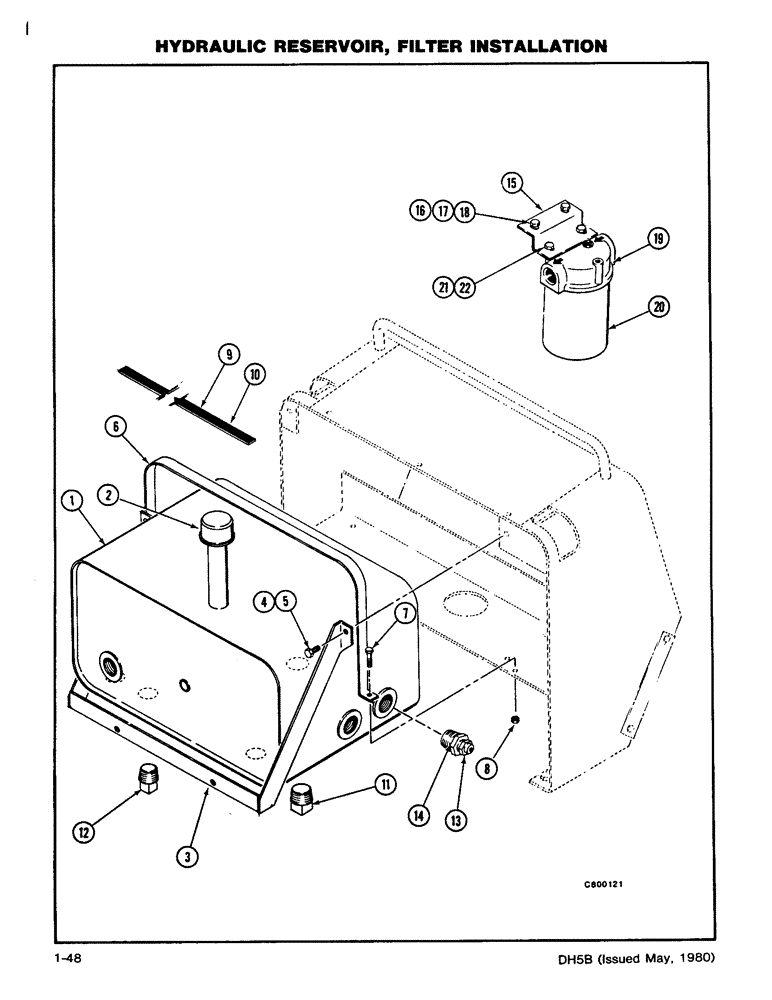

Запчасти Case DH5 (1-48) - HYDRAULIC RESERVOIR, FILTER INSTALLATION (35) - HYDRAULIC SYSTEMS

1

H624775

TANK, HYDRAULIC OIL

RESERVOIR - Oil, Includes: Ref. 2

1шт.

2

H291039

DIPSTICK

CAP & DIPSTICK ASSEMBLY

1шт.

3

H625558

STRAP

BASE - Reservoir, Includes: Ref. 4 and 5

1шт.

4

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

5

230-4216

LOCK NUT,3/8"-16, GA

NUT - NC Hex C/L (3/8)

2шт.

6

H337055

STRAP

- Reservoir, Includes: Ref. 7 and 8

1шт.

7

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

8

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - NC Hex C/L (3/8)

2шт.

9

H293944

DOOR

BANDING - (3/16 x 3/4 x 23 - Dortite)

1шт.

10

H295261

BANDING - (3/16 x 3/4 x 40 - Dortite)

1шт.

11

221-38

PLUG,Sq Soc, 1 1/2"-11 1/2, NTPF

- Drain (1 1/2 - Pipe)

1шт.

12

221-847

PLUG,Hex Soc, 1 1/4"-11 1/2

- (1 1/4 - Pipe)

2шт.

13

H81935

SENDER UNIT

SENDER - Hydraulic Oil Temperature

1шт.

14

221-607

REDUCER,Hex, 1 1/4" x 1/2" NPT

BUSHING - (1 1/4 to 1/2 - Pipe)

1шт.

15

H335448

BRACKET

- Filter Mounting, Includes: Ref. 16 - 18

1шт.

16

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

17

195-525

WASHER,3/8", SAE

- Flat (3/8)

2шт.

18

230-4216

LOCK NUT,3/8"-16, GA

NUT - NC Hex C/L (3/8)

2шт.

H624809

FILTER CARTRIDGE

FILTER ASSEMBLY - Suction, Includes: Ref. 19 - 22

1шт.

19

NSS

NOT SOLD SEPARAT

HEAD - Filter

1шт.

20

H341974

FILTER, ENGINE OIL

CANISTER - Filter

1шт.

21

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

22

195-525

WASHER,3/8", SAE

- Flat (3/8)

2шт.
