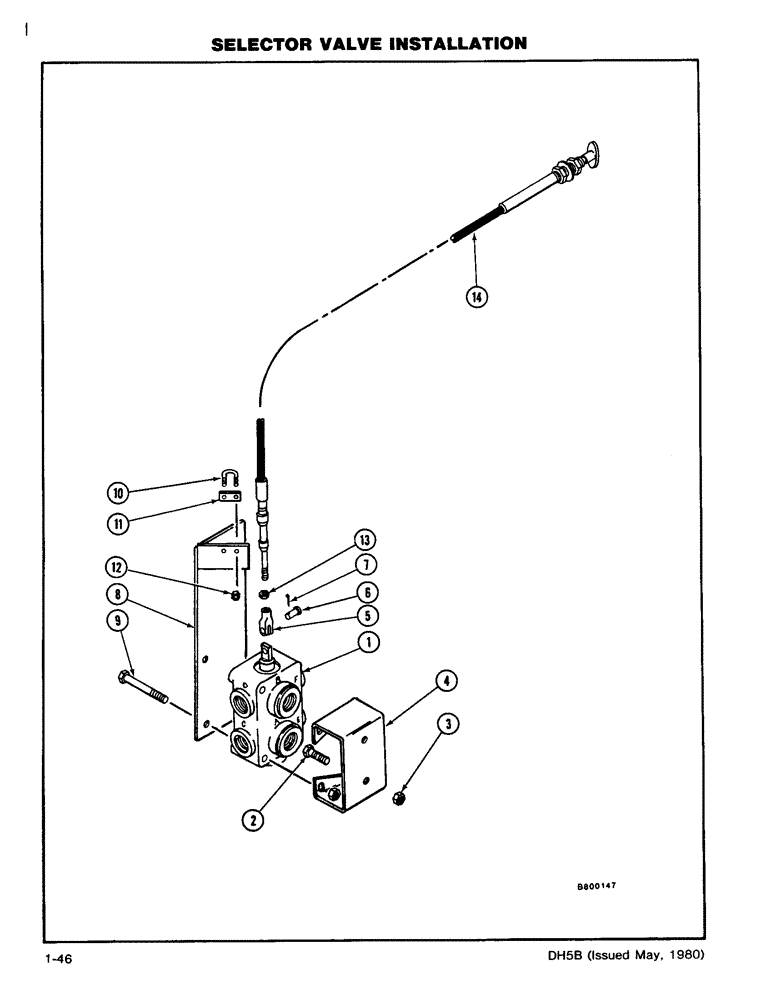

Запчасти Case DH5 (1-46) - SELECTOR VALVE INSTALLATION (35) - HYDRAULIC SYSTEMS

1

H632703

VALVE

SELECTOR VALVE ASSEMBLY - (See Figure 1-88), Includes: Ref. 2 and 3

1шт.

2

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

3

230-4216

LOCK NUT,3/8"-16, GA

NUT - NC Hex (3/8)

4шт.

4

H406314

BRACKET

- Selector Valve

1шт.

5

A18709

CLEVIS

END - Clevis

1шт.

6

H44206

CLEVIS COUPLING,7.94mm OD x 27.78mm L

PIN - Clevis

1шт.

7

132-334

COTTER PIN,1/8" x 3/4"

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.

8

H647727

PLATE ASSY.

BRACKET - Cable

1шт.

9

113-247

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

2шт.

10

H166421

HARDWARE

U BOLT

1шт.

11

H373779

LARGE PLATE

SPACER - Cable

1шт.

12

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

13

129-141

JAM NUT,Jam, 1/4"-20, G5

1шт.

14

H657718

CABLE

- Selector Valve

1шт.
