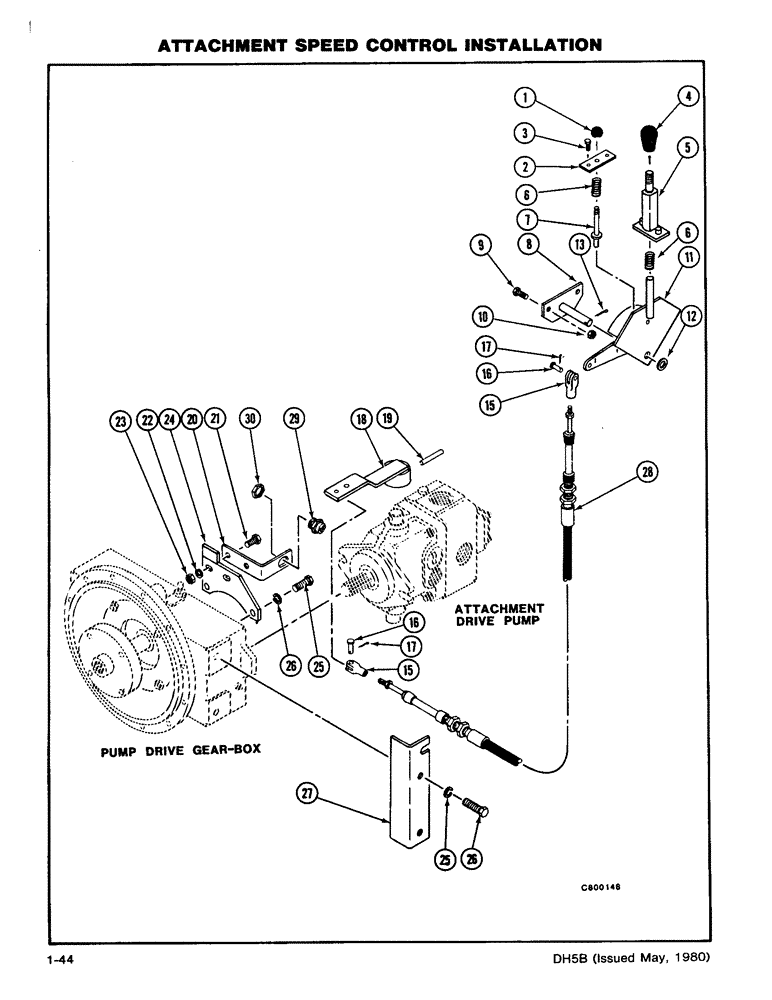

Запчасти Case DH5 (1-44) - ATTACHMENT SPEED CONTROL INSTALLATION (35) - HYDRAULIC SYSTEMS

1

H249839

KNOB

1шт.

2

H378901

PLATE

- Spring Retainer

1шт.

3

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

4

H182113

KNOB

1шт.

5

H641043

HANDLE

- Lock

1шт.

6

A33044

SPRING

2шт.

7

H642892

ROD

- Plunger

1шт.

8

H643791

PLATE

- Lever Mounting

1шт.

9

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

10

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - NC Hex (5/16 - Lock)

2шт.

11

H643809

HANDLE

1шт.

12

195-533

WASHER,1/2", SAE

- Flat (1/2)

1шт.

13

132-335

COTTER PIN,1/8" x 1 1/4"

1/8" x 1-1/4"

1шт.

15

H44198

YOKE

END - Clevis

2шт.

16

H44206

CLEVIS COUPLING,7.94mm OD x 27.78mm L

PIN - Clevis (5/16 x 1)

2шт.

17

132-334

COTTER PIN,1/8" x 3/4"

PIN, SPLIT (COTTER), 1/8" x 3/4"

2шт.

18

H626192

CONTROL BLOCK

CONTROL - Pump

1шт.

19

138-142

LOCK PIN,1/4" x 2", Slotted

PIN, 1/4" x 2", Slotted

1шт.

20

H338830

ANGLE

- Switch Mounting

1шт.

21

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

22

195-525

WASHER,3/8", SAE

- Flat (7/8)

2шт.

23

230-4216

LOCK NUT,3/8"-16, GA

NUT - NC Hex (7/8 - Lock)

2шт.

24

H632729

BRACKET

- Angle Mounting

1шт.

25

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

26

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

27

H338996

ANGLE - Pump Control

1шт.

28

H381764

CABLE PULLING GRIP

CABLE

1шт.

29

A55882

SOLENOID SWITCH

SWITCH - Neutral Start

1шт.

30

131-404

LOCK NUT,PAL, 3/4"-16

NUT - (Pal nut #RL3614)

1шт.
