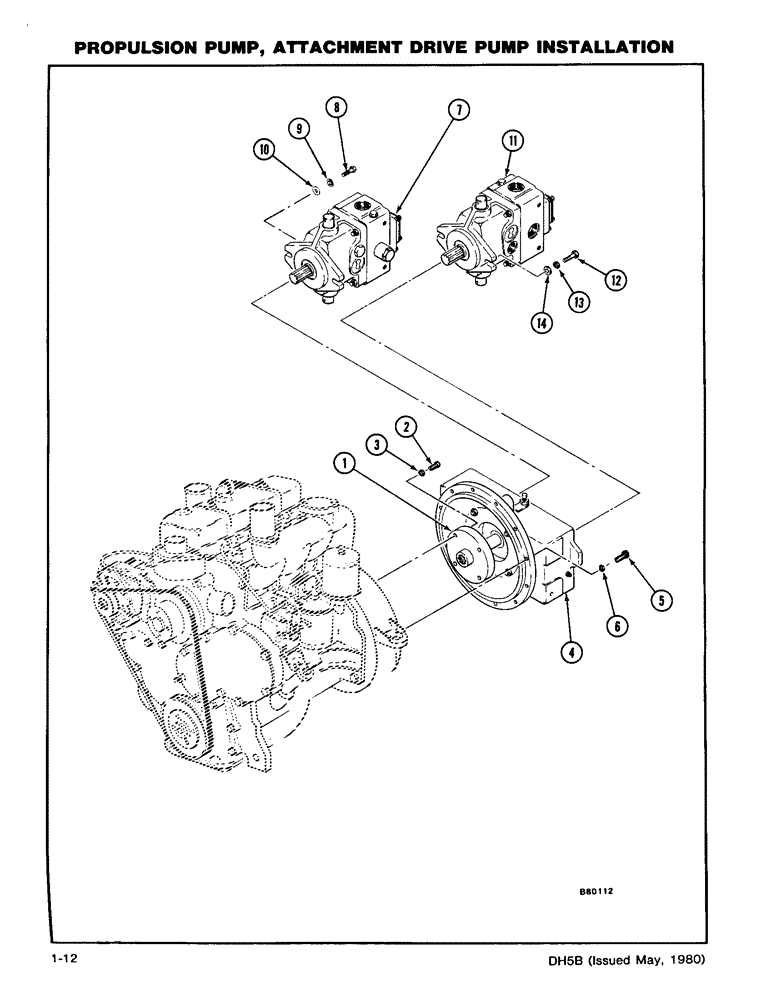

Запчасти Case DH5 (1-12) - PROPULSION PUMP, ATTACHMENT DRIVE PUMP INSTALLATION (35) - HYDRAULIC SYSTEMS

1

H625582

PLATE ASSY.

PLATE - Drive, Includes: Ref. 2 and 3

1шт.

2

114-330

BOLT,Hex, 7/16" - 20 x 1-3/4", Gr 8

- NF HH (7/16 x 1 3/4 - Grade 8)

4шт.

3

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

4

H627521

GEARBOX ASSY

GEARBOX - Pump Drive (See Fig. 1-68), Includes: Ref. 5

1шт.

5

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

12шт.

6

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

7

H628040

PUMP, HYDRAULIC

PUMP ASSEMBLY - Propulsion (See Fig. 1-78), Includes: Ref. 7A - 10

1шт.

7a

H65802

REMAN PUMP

1шт.

8

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

9

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

10

195-533

WASHER,1/2", SAE

- Flat (1/2)

2шт.

11

H628040

PUMP, HYDRAULIC

PUMP ASSEMBLY - Attachment Drive (See Fig. 1-80), Includes: Ref. 12 - 14

1шт.

12

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

13

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

14

195-533

WASHER,1/2", SAE

- Flat (1/2)

2шт.
