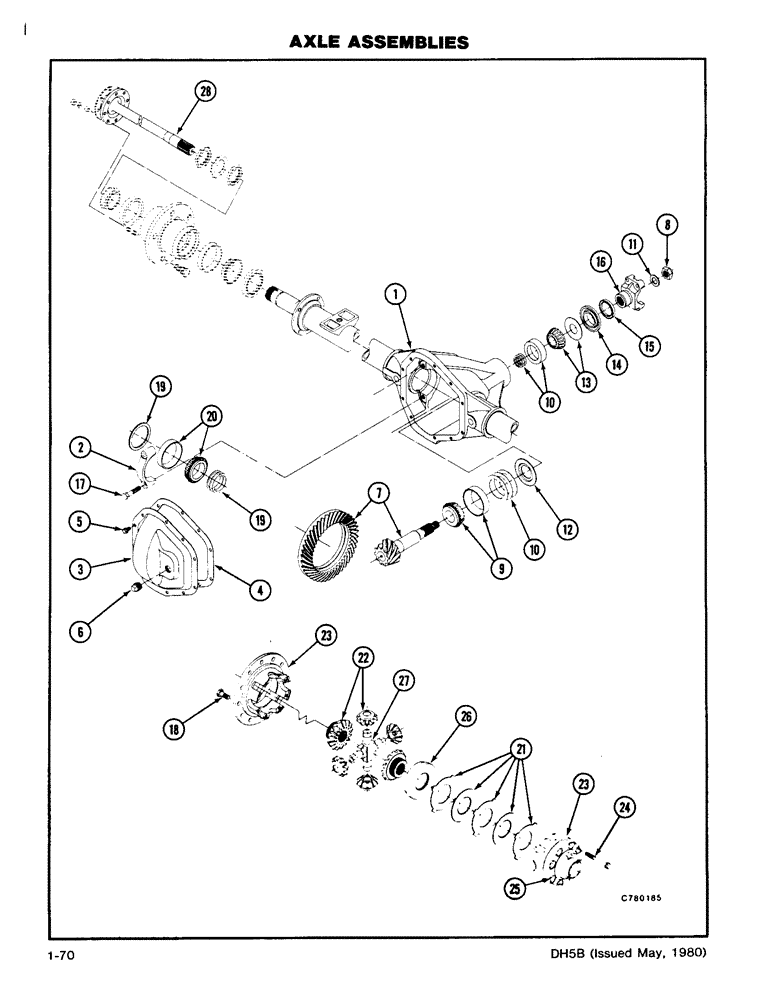

Запчасти Case DH5 (1-70) - AXLE ASSEMBLIES (25) - FRONT AXLE SYSTEM

H646232

AXLE ASSEMBLY - Rear (less hubs), Includes: Ref. 1 - 28

1шт.

H646224

AXLE ASSEMBLY - Front (less hubs), Includes: Ref. 1 - 28

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - Rear Axle, Includes: Ref. 2

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - Front Axle, Includes: Ref. 2

1шт.

1a

N9846

HOUSING ASSY.

HOUSING for front or rear axle (Less the mounting pads)

1шт.

2

NSS

NOT SOLD SEPARAT

CAP - Bearing

2шт.

3

H275131

COVER

- Carrier

1шт.

If liquid gasket is to be used in Ref #4, you must use N9848 Cover, (smooth mating surface)

1шт.

4

H224725

GASKET

- Carrier Cover, Includes: Ref. 5

1шт.

Is a cork gasket, to be used with the ribbed cover (Ref. 3). If the smooth surface N9848 cover is used, you can use M20704 Liquid Gasket.

1шт.

5

H227132

FLANGE BOLT

BOLT - Carier Cover

10шт.

6

221-48

PLUG

- Level

1шт.

7

H644799

SET

GEAR SET - Ring & Pinion, Includes: Ref. 8

1шт.

8

H224642

NUT

- Pinion

1шт.

9

H637967

BEARING

KIT - Bearing - Inner Pinion, Includes: Ref. 11

1шт.

10

H637986

KIT - Pinion & Bearing Shim, Includes: Ref. 11

1шт.

Includes 1 each Refs. 4 and 8.

1шт.

11

H224501

WASHER

- Pinion Nut, 7/8 inch

1шт.

12

H224592

BAFFLE

- Pinion Bearing Oil

1шт.

13

H630434

BEARING

KIT - Bearing - Outer Pinion

1шт.

14

H224535

SHIELD

SLINGER - Pinion Bearing

1шт.

15

H755157

SEAL

SEAL - Oil

1шт.

16

H224519

YOKE

1шт.

17

H226548

SCREW

BOLT - Differential Bearing Cap

4шт.

H637934

KIT

- Differential Case Assembly, Includes: Ref. 18 - 27

1шт.

18

H136416

FLANGE BOLT,Serr, 1/2" - 20 x 1.125", Gr 8

BOLT - Drive Gear

12шт.

19

H638007

KIT

- Differential Bearing Shim

1шт.

20

H637975

KIT

- Differential Bearing

1шт.

H596486

CASE

ASSEMBLY - Differential, Includes: Ref. 21 - 27

1шт.

21

H224675

DISC

KIT - Differential Disc & Plate

1шт.

22

H604132

GEAR WHEEL

KIT - Differential Gear & Pinion

1шт.

23

H596494

CARRIER

SUB ASSEMBLY - Differential Case, Includes: Ref. 24 and 25

1шт.

24

H275172

BOLT

- Differential Case

8шт.

25

H275164

STUD

ADAPTER - Stud

8шт.

26

H224683

RING

- Differential

2шт.

27

H224709

AXLE PIN

SHAFT - Differential

2шт.

28

H224584

SHAFT

- Axle

2шт.
