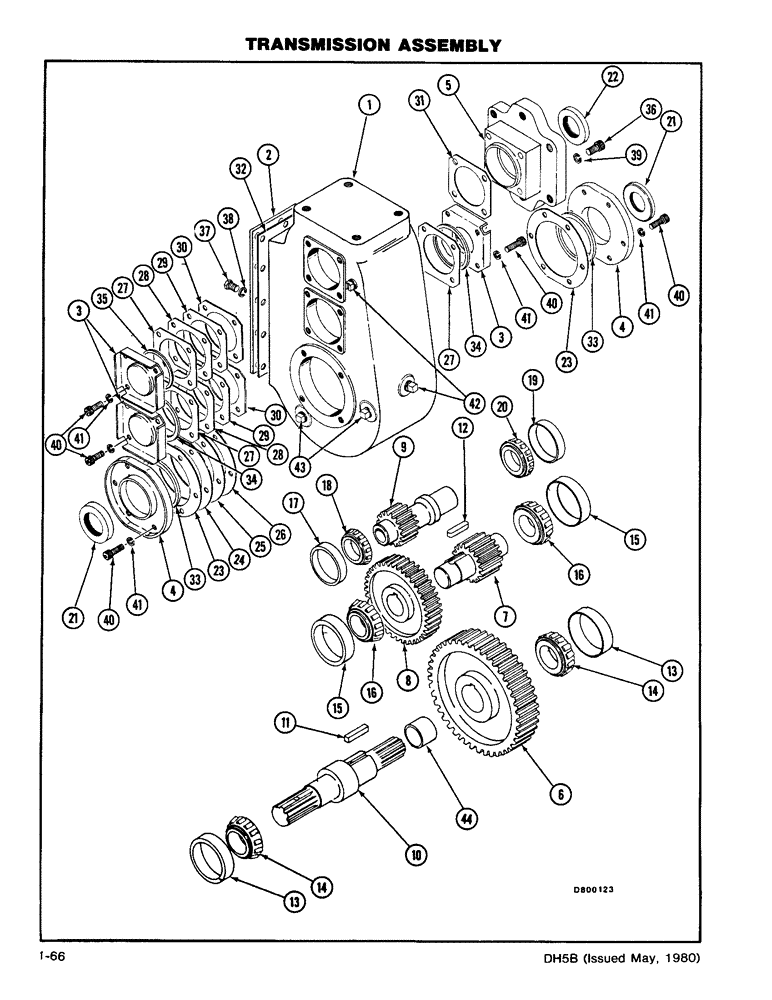

Запчасти Case DH5 (1-66) - TRANSMISSION ASSEMBLY (21) - TRANSMISSION

H655563

TRANSMISSION ASSEMBLY, Includes: Ref. 1 - 44

1шт.

1

H403188

HOUSING

1шт.

2

H362590

COVER

- Lid

1шт.

3

H403022

COVER

3шт.

4

H393900

COVER

2шт.

5

H403030

FLANGE

- Pump

1шт.

6

H380865

GEAR - Output (42T)

1шт.

7

H403196

GEAR

- Shaft Intermediate (12T)

1шт.

8

H362616

GEAR

- Intermediate (52T)

1шт.

9

H403204

GEAR - Shaft Input (15T)

1шт.

Replaced by H362608.

1шт.

10

H403212

SHAFT - Output

1шт.

11

H34488

KEY

- (3/8 Sq x 1.6875 Sq Ends)

1шт.

12

H70243

KEY

(3/8 Sq x .968 - Rd Ends)

1шт.

13

A29062

ROLLER BEARING,82.956 mm OD x 19.101 mm

CUP - Bearing

2шт.

14

A758128

CONE - Bearing

2шт.

15

A26746

BEARING CUP

CUP - Bearing

2шт.

16

VT2099

BEARING, CONE

CONE - Bearing

2шт.

17

04056TS

CUP

- Bearing

1шт.

18

40388

BEARING ASSY,26.987 mm ID x 20.64 mm

CONE - Bearing

1шт.

19

G57451

BEARING, CUP

CUP - Bearing

1шт.

20

G57452

ROLLER BEARING

CONE - Bearing

1шт.

21

H403410

SEAL

2шт.

22

H362731

SEAL

1шт.

23

H394825

SHIM,.005" Thk

Fiber .005" Thk

2шт.

24

H394817

SHIM,.005" Thk

Aluminum .005" Thk

1шт.

25

H394833

SHIM,.007" Thk

Aluminum .007" Thk

1шт.

26

H394841

SHIM,.020" Thk

Aluminum .020" Thk

1шт.

27

H403121

SHIM

- Fiber (.005)

3шт.

28

H403139

SHIM,.005" Thk

Aluminum .005" Thk

1шт.

29

H403147

SHIM,.007" Thk

(0.18 mm), Aluminum .007" Thk

1шт.

30

H403154

SHIM,.020" Thk

Aluminum .020" Thk

1шт.

31

H403162

SHIM

- Fiber (.005)

1шт.

32

H362715

GASKET

- Lid

1шт.

33

H394866

BEARING

RING - Spacer

2шт.

34

H403428

SNAP RING,#262, 2.475, Ext

RING - Spacer

2шт.

35

A150145

RING

- Spacer

1шт.

36

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- Soc Hd (3/8-16 x 1.75)

4шт.

37

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

12шт.

38

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

39

192-401

LOCK WASHER,3/8"

3/8"

4шт.

40

165-163

HEX SOC SCREW,1/4" - 20 x 1"

BOLT - Soc Hd (5/16-18 x 1)

24шт.

41

192-404

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

24шт.

42

D57822

BREATHER

PLUG - Breather

1шт.

43

221-3

DRAIN PLUG,Sq Hd, 3/8"-18 NPTF

PLUG - Pipe (3/8 Sq Hd)

3шт.

44

A142869

ROLLER CAGE BEARING

SLEEVE

1шт.
