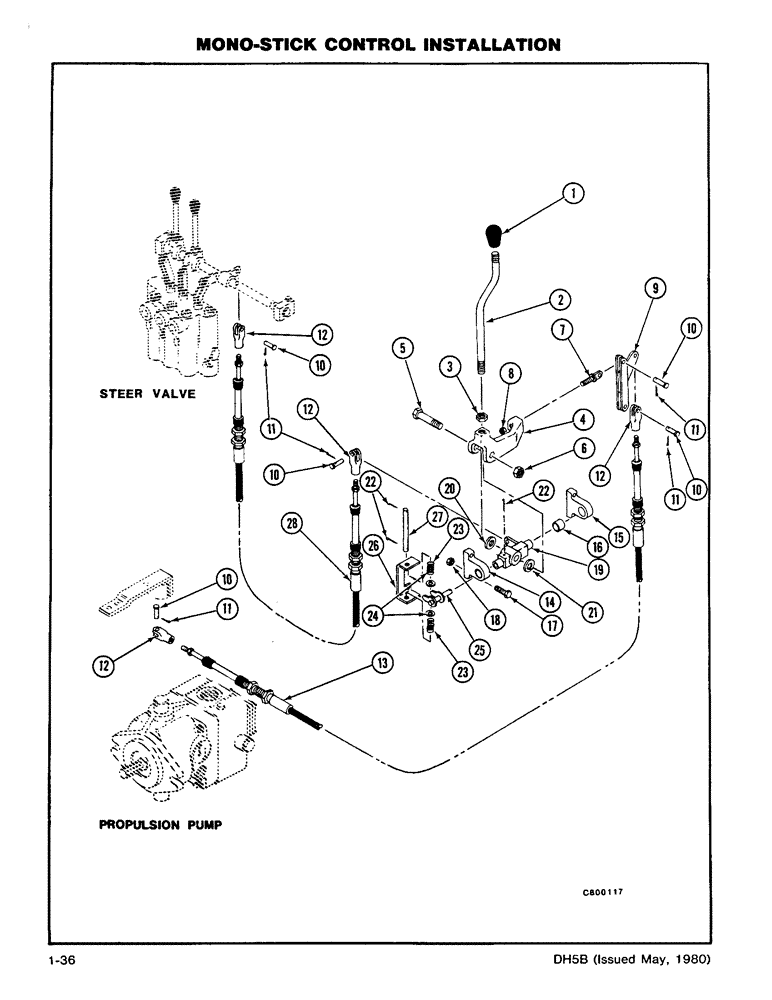

Запчасти Case DH5 (1-36) - MONO-STICK CONTROL INSTALLATION (14) - MAIN GEARBOX & DRIVE

1

H182113

KNOB

1шт.

2

H293084

HANDLE

- Fwd/Rev Steering

1шт.

3

129-145

JAM NUT,Jam, 1/2"-13, G5

1шт.

4

H181982

CASTING

- Fwd/Rev Steering

1шт.

5

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

- NC HH (1/2 x 2 1/2)

1шт.

6

131-1182

LOCK NUT,1/2"-13, GA

NUT - NC Hex C/L (1/2)

1шт.

7

H217109

BOLT

BOLT - Eye

1шт.

8

131-1169

LOCK NUT,5/16"-24, GA

NUT, LOCK, 5/16"-24, GA

1шт.

9

H587352

CONTROL

1шт.

10

H169318

CLEVIS COUPLING,6.35mm OD x 22.62mm L

PIN - Clevis (1/4 x 51/64)

5шт.

11

132-329

COTTER PIN,1/16" x 3/4"

1/16" x 3/4"

5шт.

12

H44198

YOKE

END - Clevis

4шт.

13

H645853

CABLE PULLING GRIP

CABLE - Propulsion

1шт.

14

H558411

BEARING

BUSHING BLOCK ASSEMBLY, Includes: Ref. 15 and 16

2шт.

15

NSS

NOT SOLD SEPARAT

BLOCK - Bushing

1шт.

16

H151894

BUSHING

1шт.

17

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

4шт.

18

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - NC Hex C/L (5/16)

4шт.

19

H339077

SHAFT

- Control

1шт.

20

H182097

WASHER

- Friction (.125)

1шт.

21

H256305

WASHER

- Friction (.062)

1шт.

22

132-334

COTTER PIN,1/8" x 3/4"

PIN, SPLIT (COTTER), 1/8" x 3/4"

3шт.

23

H196717

VALVE SPRING

SPRING

2шт.

24

195-521

WASHER,5/16", SAE

- Flat (5/16)

2шт.

25

H560482

LEVER

1шт.

26

H196691

BRACKET

1шт.

27

H196709

GUIDE

PIN - Spring Guide

1шт.

28

H381756

CABLE PULLING GRIP

CABLE - Steering Control

1шт.
