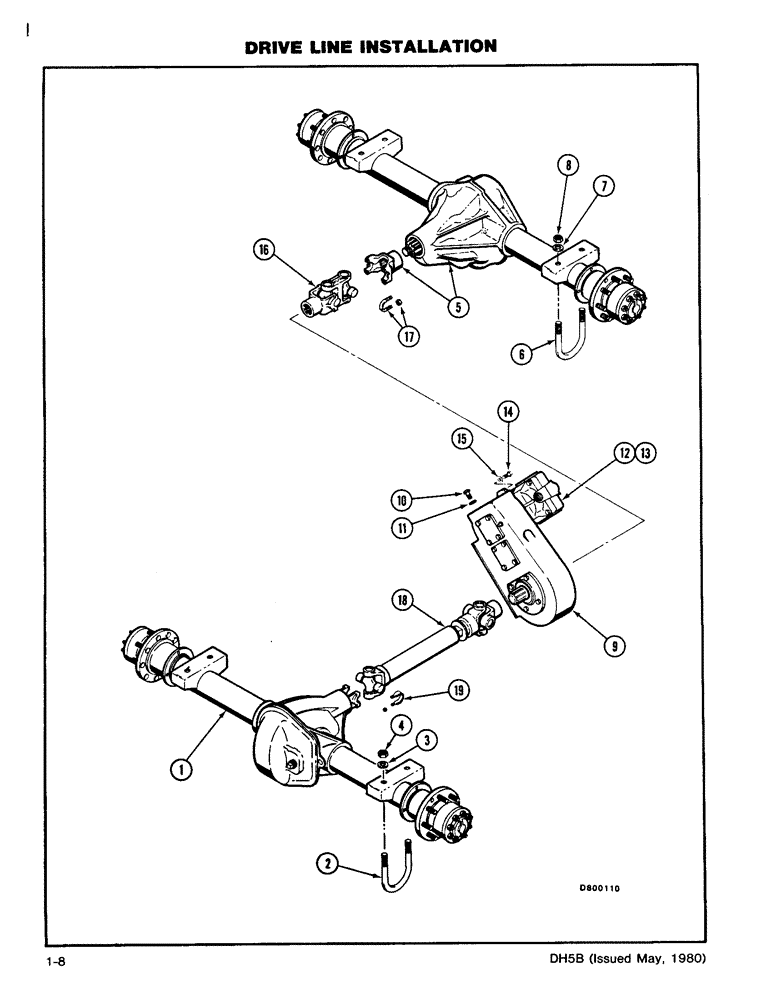

Запчасти Case DH5 (1-08) - DRIVE LINE INSTALLATION (14) - MAIN GEARBOX & DRIVE

1

H646224

AXLE ASSEMBLY - Front (See Fig. 1-70), Includes: Ref. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

U BOLT

1шт.

3

NSS

NOT SOLD SEPARAT

WASHER - Flat

2шт.

4

NSS

NOT SOLD SEPARAT

NUT

2шт.

5

H646232

AXLE ASSEMBLY - Rear (See Fig. 1-70), Includes: Ref. 6 - 8

1шт.

6

NSS

NOT SOLD SEPARAT

U BOLT

1шт.

7

NSS

NOT SOLD SEPARAT

WASHER - Flat

2шт.

8

NSS

NOT SOLD SEPARAT

NUT

2шт.

9

H642850

TRANSMISSION ASSEMBLY - (See Fig. 1-66), Includes: Ref. 10 and 11

1шт.

10

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

11

195-533

WASHER,1/2", SAE

- Flat (1/2)

4шт.

12

H632968

MOTOR HOUSING

MOTOR - Propulsion (See Fig. 1-84), Includes: Ref. 13 - 15

1шт.

13

H44727

GASKET

1шт.

14

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

15

195-533

WASHER,1/2", SAE

- Flat (1/2)

2шт.

16

H643460

UNIVERSAL JOINT

DRIVE LINK ASSEMBLY - (See Fig. 1-64), Includes: Ref. 17

1шт.

17

H183566

BOLT

U BOLT - Includes Nuts

2шт.

18

H643478

DRIVE SHAFT

ASSEMBLY - (See Fig. 1-62), Includes: Ref. 19

1шт.

19

H183566

BOLT

U BOLT - Includes Nuts

2шт.
