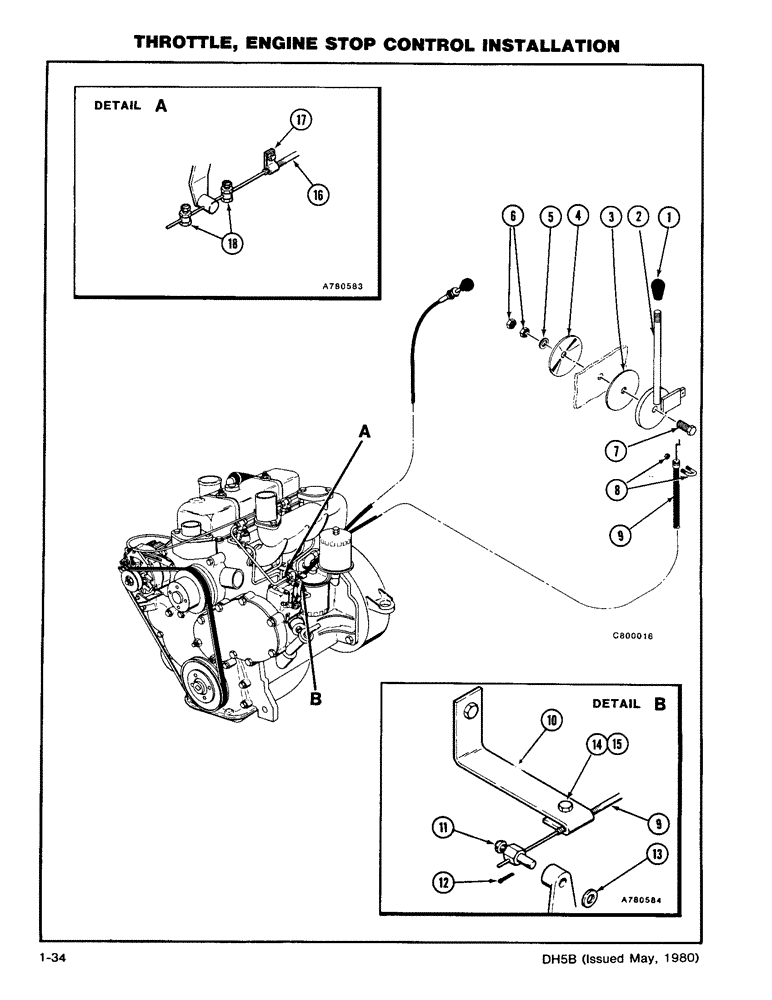

Запчасти Case DH5 (1-34) - THROTTLE, ENGINE STOP CONTROL INSTALLATION (10) - ENGINE

1

A14051

GRIP

KNOB

1шт.

2

H643692

HANDLE

THROTTLE - Hand

1шт.

3

R15051

DISC - Friction

1шт.

4

R14771

WASHER

- Spring

1шт.

5

R15071

DISC

WASHER - Flat (3/8)

1шт.

6

230-4216

LOCK NUT,3/8"-16, GA

NUT - NC Hex (3/8)

2шт.

7

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

8

H381269

U-BOLT

(Includes Nuts)

1шт.

9

H398966

CABLE PULLING GRIP

CABLE - Throttle, (113")

1шт.

10

H329763

BRACKET

- Throttle

1шт.

11

H327494

JOINT TURNING

STOP - Wire

1шт.

12

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

13

195-518

WASHER,1/4", SAE

- Flat (1/4)

1шт.

14

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

15

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

1шт.

16

H381749

CABLE PULLING GRIP

CABLE - Engine Stop Control, (120")

1шт.

17

H32698

CLIP

CLAMP - Cable

1шт.

18

H42796

STOP

- Wire

2шт.
