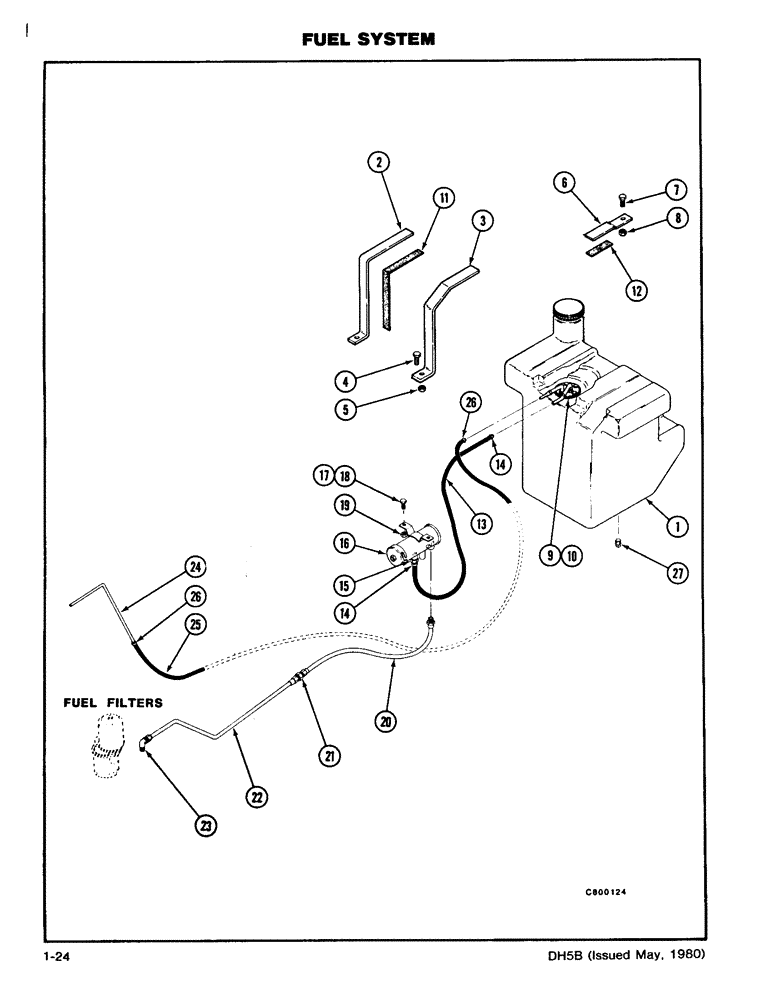

Запчасти Case DH5 (1-24) - FUEL SYSTEM (10) - ENGINE

1

H653436

FUEL TANK

TANK - Fuel

1шт.

2

H400333

STRAP

- Fuel Tank

1шт.

3

H400929

STRAP

- Fuel Tank, Includes: Ref. 4 and 5

1шт.

4

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

5

230-4216

LOCK NUT,3/8"-16, GA

NUT - NC Hex C/L (3/8)

2шт.

6

H401679

TAB - Fuel Tank, Includes: Ref. 7 and 8

2шт.

7

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

8

230-4216

LOCK NUT,3/8"-16, GA

NUT - NC Hex C/L (3/8)

2шт.

9

H653444

SENDER UNIT

SENDER - Fuel Level, Includes: Ref. 10

1шт.

A11822 Gasket for the Ref. 9 Sender.

1шт.

10

H182550

SCREW - Pan Head (#10-24 x 1/2)

5шт.

11

H293985

PAD - Dortite (3/16 x 3/4 x 13 1/2)

2шт.

12

H315903

PAD - Dortite (3/16 x 3/4 x 3 1/2)

2шт.

13

H401687

HOSE - Fuel, Includes: Ref. 14

1шт.

Order D94979 and cut to fit.

1шт.

14

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

2шт.

15

217-118

SUN VISOR

FITTING - (1/8 MP x 5/16 Hose Barb)

1шт.

16

T41054

PUMP

- Fuel, Includes: Ref. 17 - 19

1шт.

17

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

18

195-518

WASHER,1/4", SAE

- Flat (1/4)

2шт.

19

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

20

H224758

FUEL TUBE

HOSE - Fuel

1шт.

21

222-1915

FITTING

COUPLING - Union

1шт.

22

H628180

FUEL TUBE,36" L

TUBE - Fuel

1шт.

23

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

- 90 degree

1шт.

24

H243493

TUBE,0.25" OD x 21" L

- Fuel Bleed

1шт.

25

H400184

FUEL HOSE,6.35 mm ID x 1905.00 mm, SAE 30R1, SAE 30R3

6.35 mm ID x 1905.00 mm Bulk, SAE 30R1, SAE 30R3, Cut from Bulk Hose, Fuel Bleed, Includes: Ref. 26

1шт.

26

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

2шт.

27

221-843

PLUG,Hex Soc, 3/8"-18

- Pipe (3/8)

2шт.

Cap for fuel tank A160226.

1шт.
