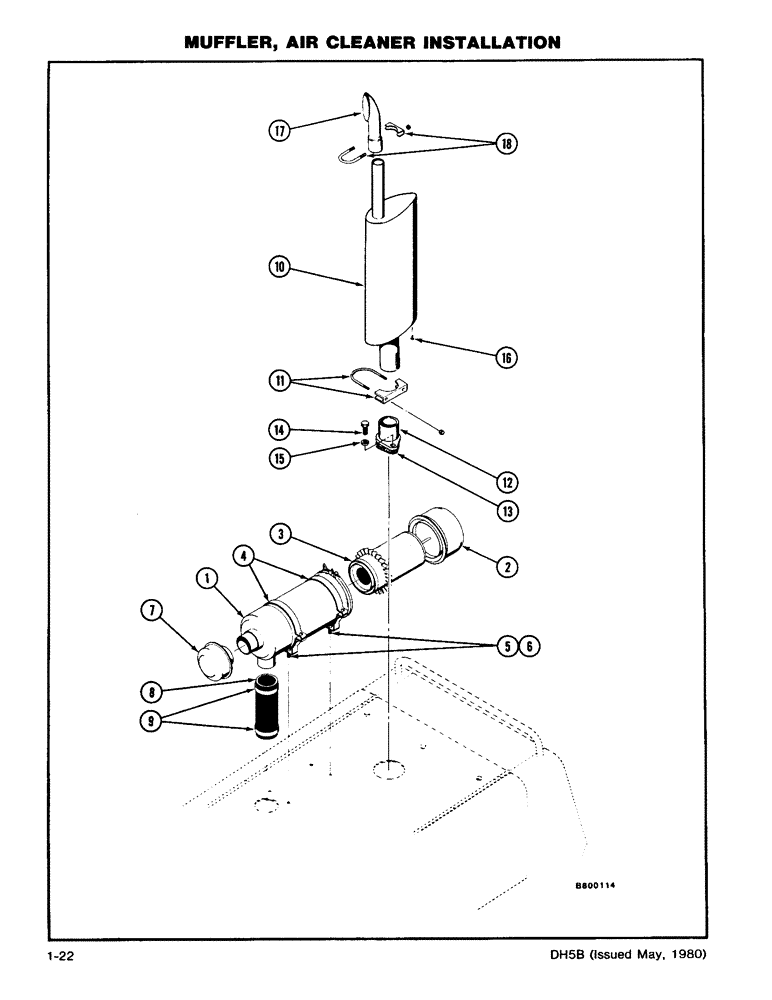

Запчасти Case DH5 (1-22) - MUFFLER, AIR CLEANER INSTALLATION (10) - ENGINE

H152553

AIR CLEANER

ASSEMBLY, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - Air Cleaner

1шт.

2

NSS

NOT SOLD SEPARAT

DUST CLIP - Air Cleaner

1шт.

3

D48198

AIR CLEANER

ELEMENT - Air Cleaner

1шт.

4

L11247

BAND

- Mounting, Includes: Ref. 5 and 6

2шт.

5

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

6

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT 9 NC Hex C/L (5/16)

4шт.

7

A61276

AIR CLEANER

CAP - Air Stack

1шт.

8

H367326

INTAKE AIR HOSE,57.20 mm ID x 203.20 mm, SAE 20R1

- Air Cleaner, Includes Ref. 9 57.20 mm ID x 203.20 mm, SAE 20R1

1шт.

9

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

2шт.

10

A39561

MUFFLER

Includes: Ref. 11

1шт.

11

A27115

CLAMP

- Muffler

1шт.

12

H625970

FLANGE

- Exhaust

1шт.

13

G46853

MANIFOLD GASKET

- Exhaust Flange, Includes: Ref. 14 and 15

1шт.

14

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

15

80680

LOCK WASHER,3/8 0.381 CST ZND

WASHER, LOCK, 3/8"

2шт.

16

187-1011

SCREW - Self Tap

1шт.

17

A39571

PIPE, EXHAUST SYSTEM

EXTENSION - Muffler, Includes: Ref. 18

1шт.

18

G45410

CLAMP

- Muffler

1шт.
