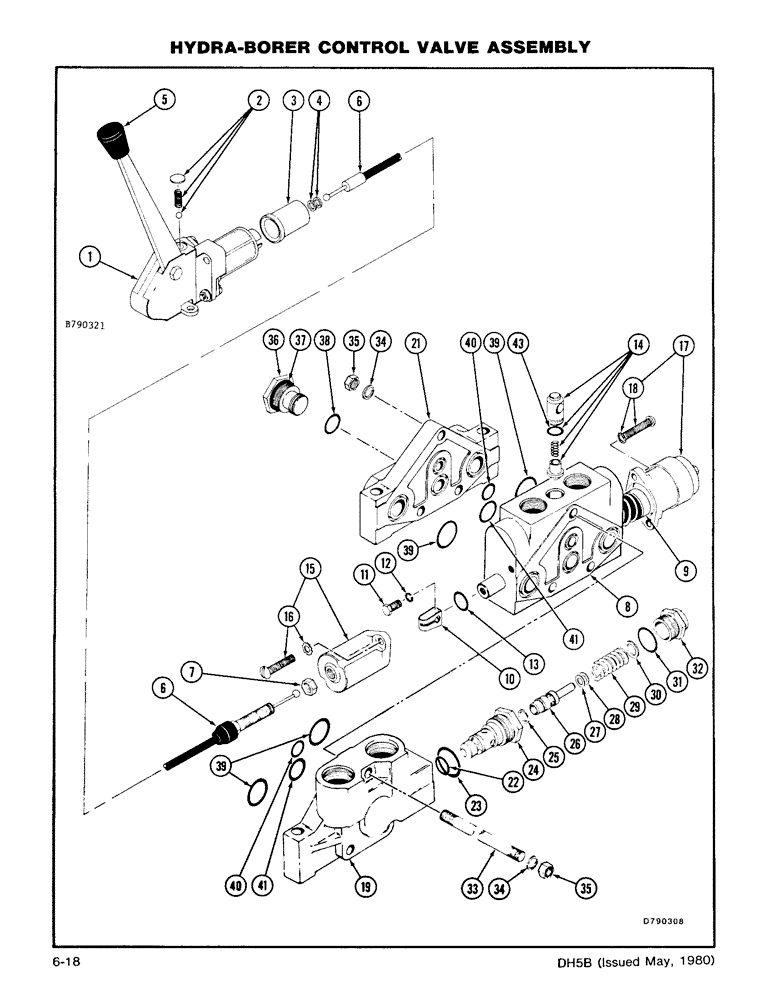

Запчасти Case DH5 (6-18) - HYDRA-BORER CONTROL VALVE ASSEMBLY (89) - TOOLS

H652255

VALVE

ASSEMBLY - Hydra-Borer Control, Includes Ref. 1 - 43

1шт.

1

H653139

ACTUATOR

ASSEMBLY - Control Valve, Includes Ref. 2 - 5

1шт.

2

H655795

DETENT KIT - Actuator (includes ball, spring, and plug)

1шт.

3

H398826

CAP - End

1шт.

4

H407692

SPACER

2шт.

5

H398867

GRIP

KNOB - Control Handle

1шт.

6

H650101

CABLE

ASSEMBLY - Control, Includes Ref. 7

1шт.

7

H407718

NUT - Jam

1шт.

H655837

VALVE

SECTION ASSEMBLY - Spool, Includes Ref. 8 - 36

1шт.

8

H653097

SECTION and SPOOL ASSEMBLY Replaced by H655837

1шт.

9

H653105

ASSEMBLY

FAIL SAFE ASSEMBLY

1шт.

10

H398719

CONNECTOR, ELEC

CONNECTOR - Cable

1шт.

11

113-6

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

1шт.

12

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

13

H644849

SEAL

KIT - Spool

1шт.

This item is also part of H655423 Valve Seal Kit

1шт.

14

H644880

CHECK VALVE

KIT - Load Check (includes poppet, spring , o-ring, and body)

1шт.

15

H655787

CAP

KIT - End, Includes Ref. 16

1шт.

16

H400648

SCREW

ASSEMBLY

2шт.

17

H655779

KIT

CAP KIT - Fail Safe End, Includes Ref. 18

1шт.

18

H400648

SCREW

ASSEMBLY

2шт.

19

H398636

COVER

- Inlet

1шт.

21

H398792

COVER - Outlet

1шт.

H653071

VALVE, PRESSURE RELI

VALVE ASSEMBLY - Main Relief, Includes Ref. 22 - 32

1шт.

22

NSS

NOT SOLD SEPARAT

O-RING

1шт.

These items are included in H644864 Main Relief Valve Seal Kit

1шт.

23

NSS

NOT SOLD SEPARAT

O-RING

1шт.

These items are included in H644864 Main Relief Valve Seal Kit

1шт.

24

NSS

NOT SOLD SEPARAT

BODY - Relief Valve

1шт.

25

NSS

NOT SOLD SEPARAT

GUIDE - Poppet

1шт.

26

NSS

NOT SOLD SEPARAT

POPPET

1шт.

27

NSS

NOT SOLD SEPARAT

SHIM - (.003)

1шт.

28

NSS

NOT SOLD SEPARAT

SHIM - (.020)

1шт.

29

NSS

NOT SOLD SEPARAT

SPRING - (1500 to 4000 psi) (red)

1шт.

30

NSS

NOT SOLD SEPARAT

SHIM

1шт.

31

NSS

NOT SOLD SEPARAT

O-RING

1шт.

These items are included in H644864 Main Relief Valve Seal Kit

1шт.

32

NSS

NOT SOLD SEPARAT

CAP - Valve (Pressure stamped on end)

1шт.

33

H3978693

ROD - Tie

3шт.

34

80682

LOCK WASHER,1/4"

Washer, Lock, 1/4"

6шт.

35

25-114

NUT,1/4"-28, G5

- NF HH (3/8)

6шт.

36

H653121

ADAPTER

ASSEMBLY - Power Beyond

1шт.

H655423

KIT

SEAL KIT - Complete Valve, Includes Ref. 39 - 41

1шт.

H655761

KIT

SEAL KIT - Power Beyond

1шт.

37

NSS

NOT SOLD SEPARAT

O-RING

1шт.

38

NSS

NOT SOLD SEPARAT

O-RING

1шт.

H644914

KIT

SEAL KIT - Intersection

2шт.

39

NSS

NOT SOLD SEPARAT

O-RING

2шт.

40

NSS

NOT SOLD SEPARAT

O-RING

1шт.

41

NSS

NOT SOLD SEPARAT

O-RING

1шт.

H644864

SEAL KIT

- Main Relief Valve

1шт.

43

D61967

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

- Check Valve

1шт.

This item is also part of H644880 Load Check Kit

1шт.
